Basic asset-based scheduling in Apache Airflow®

With Assets, Dags that access the same data can have explicit, visible relationships, and Dags can be scheduled based on updates to these assets. This feature helps make Airflow data-aware and expands Airflow scheduling capabilities beyond time-based methods such as cron.

Assets can help resolve common issues. For example, consider a data engineering team with a Dag that creates a table with cleaned data and a machine learning team with a Dag that trains a model on that data. Using assets, the machine learning team’s Dag runs only when the data engineering team’s Dag has produced an update to the asset. An asset represent anything, from a table in a database, to a file in object storage, to a fine-tuned LLM, to an abstract entity like a certain business process having completed.

In this guide, you’ll learn:

• When to use assets in Airflow.
• Basic asset concepts and terminology.
• How to schedule Dags based on basic asset schedules.
• How to update assets in Airflow.
• How to view asset dependencies in the Airflow UI.
• Which options exist for advanced asset-based scheduling.

Assumed knowledge

To get the most out of this guide, you should have an existing knowledge of:

• Airflow scheduling concepts. See Schedule Dags in Airflow.

When to use Airflow assets

Assets allow you to define explicit dependencies between Dags and updates to your data.

Basic asset-based scheduling helps you to:

• Standardize communication between teams. Assets can function like an API to communicate when data in a specific location has been updated and is ready for use.
• Reduce the amount of code necessary to implement cross-Dag dependencies. Even if your Dags don’t depend on data updates, you can create a dependency that triggers a Dag after a task in another Dag updates an asset.
• Get better visibility into how your Dags are connected and how they depend on data. The Assets graphs in the Airflow UI display how assets and Dags depend on each other and can be used to navigate between them.
• Reduce costs, because assets do not use a worker slot in contrast to sensors or other implementations of cross-Dag dependencies.
• Create cross-deployment dependencies using the Airflow REST API. Astro customers can use the Cross-deployment dependencies best practices documentation for guidance.

See Advanced asset-based scheduling for more information on the capabilities of advanced asset-based scheduling.

When not to use Airflow assets

Airflow is only aware of updates to assets that occur by tasks, API calls, or in the Airflow UI. It does not monitor updates to assets that occur outside of Airflow. For example, Airflow will not notice if you manually add a file to an S3 bucket referenced by an asset.

To create Airflow dependencies based on outside events, you can use:

• Airflow sensors: Synchronously check for a condition to be met. A lot of sensors have a deferrable mode.
• Async functions in @task decorators: Asynchronously check for a condition to be met.
• Deferrable operators: Use the Airflow triggerer component to asynchronously check for a condition to be met, releasing the worker slot during long-running tasks.

Event-driven scheduling based on messages in a message queue is a type of advanced asset-based scheduling.

Basic asset concepts

You can define assets in your Dag code and use them to create cross-Dag dependencies. Airflow uses the following terms related to asset-based scheduling:

• Asset: an object in Airflow that represents a concrete or abstract data entity and is defined by a unique name. Optionally, a URI can be attached to the asset, when it represents a concrete data entity, like a file in object storage or a table in a relational database.
• Asset schedule: the schedule of a Dag that is triggered as soon as asset events for one or more assets are created. All assets a Dag is scheduled on are shown in the Dag graph in the Airflow UI, as well as reflected in the dependency graph of the Assets tab.
• Producer task: a task that produces updates to one or more assets provided to its outlets parameter, creating asset events when it completes successfully.
• Asset event: an event that is attached to an asset and created whenever a producer task updates that particular asset. An asset event is defined by being attached to a specific asset plus the timestamp of when a producer task updated the asset. Optionally, an asset event can contain an extra dictionary with additional information about the asset or asset event.

Two parameters relating to Airflow assets exist in all Airflow operators and decorators:

• outlets: a task parameter that contains the list of assets a specific task produces updates to, as soon as it completes successfully. All outlets of a task are shown in the Dag graph in the Airflow UI, as well as reflected in the dependency graph of the Assets tab as soon as the Dag code is parsed, independently of whether or not any asset events have occurred. Note that Airflow is not yet aware of the underlying data. It is up to you to determine which tasks should be considered producer tasks for an asset. As long as a task has an outlet asset, Airflow considers it a producer task even if that task doesn’t operate on the referenced asset.
• inlets: a task parameter that contains the list of assets a specific task has access to, typically to access extra information from related asset events. Defining inlets for a task does not affect the schedule of the Dag containing the task.

To summarize, tasks produce updates to assets given to their outlets parameter, and this action creates asset events. Dags can be scheduled based on asset events created for one or more assets, and tasks can be given access to all events attached to an asset by defining the asset as one of their inlets. An asset is defined as an object in the Airflow metadata database as soon as it is referenced in either the outlets parameter of a task or the schedule of a Dag.

Using advanced asset-based scheduling introduces additional concepts, see Advanced asset-based scheduling for more information.

Asset definition

An asset is defined as an object in the Airflow metadata database as soon as it is referenced in either the outlets parameter of a task, the inlets parameter of a task, or the schedule of a Dag.

The code snippet below shows how you can define an asset using the outlets parameter in both a @task decorator and a traditional operator (BashOperator).

1
from airflow.sdk import Asset, dag, task
2
from airflow.providers.standard.operators.bash import BashOperator
3
4
@dag
5
def dag_a():
6
7
    @task(outlets=[Asset("asset_a")])
8
    def task_a():
9
        pass
10
11
    task_a()
12
13
    BashOperator(
14
        task_id="task_bash",
15
        bash_command="echo 'Hello, World!'",
16
        outlets=[Asset("asset_a_bash")]
17
    )
18
19
dag_a()

Defining an asset in the schedule of a Dag is done by providing the asset to the schedule parameter. This creates a schedule for the Dag to run as soon as the asset is updated (an asset event is created for the asset).

1
from airflow.sdk import Asset, dag
2
3
@dag(schedule=[Asset("asset_b")])
4
def dag_b():

Lastly, you can define an asset in the inlets parameter of any task. Note that inlets do not affect the schedule of the Dag containing the task.

1
from airflow.sdk import Asset, dag, task
2
from airflow.providers.standard.operators.bash import BashOperator
3
4
@dag
5
def dag_c():
6
7
    @task(inlets=[Asset("asset_c")])
8
    def task_c():
9
        pass
10
11
    task_c()
12
13
    BashOperator(
14
        task_id="task_bash",
15
        bash_command="echo 'Hello, World!'",
16
        inlets=[Asset("asset_c_bash")]
17
    )
18
19
dag_c()

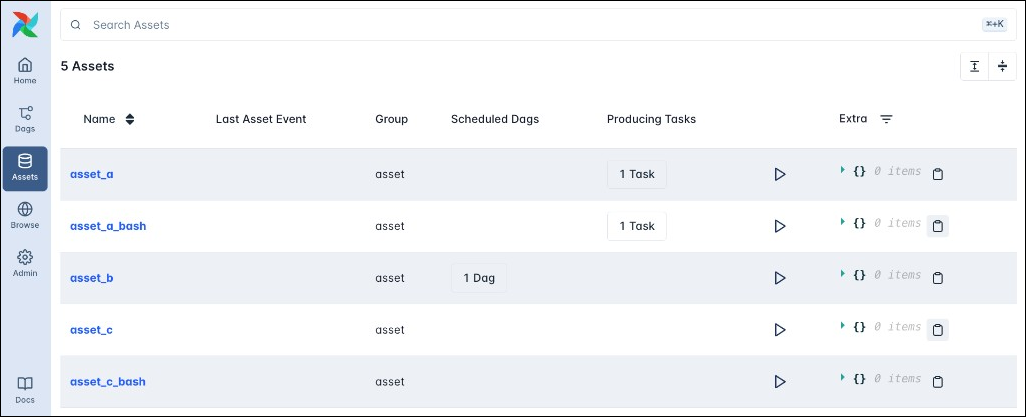

All registered assets appear in the Assets tab of the Airflow UI, alongside any Dags scheduled on the asset, as well as any producing tasks.

Clicking on any asset opens the asset graph for that asset.

Updating an asset

There are five ways to update an asset by creating an asset event.

• A task with an outlets parameter that references the asset completes successfully, in the example above the task_a task produces an update to the asset_a asset and the task_bash task produces an update to the asset_a_bash asset. You can provide several assets in the list of assets, for example outlets=[Asset("asset_a"), Asset("asset_b")], then successful task completion will produce an asset event for each of the assets in the list.

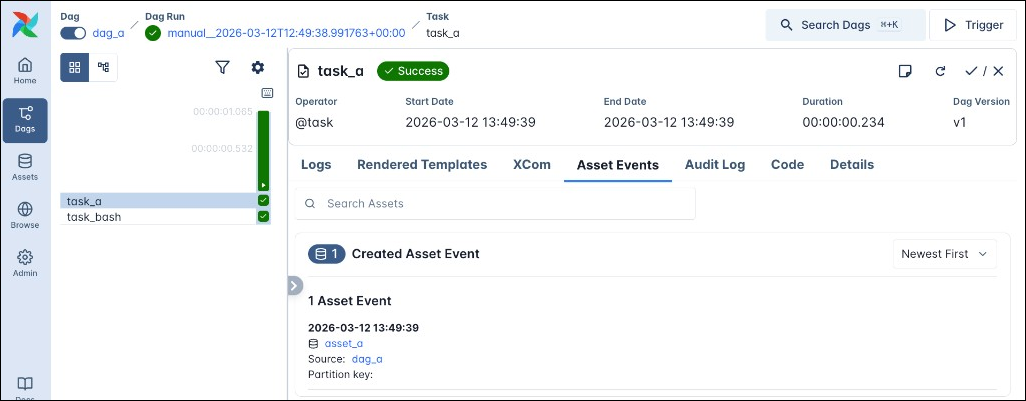

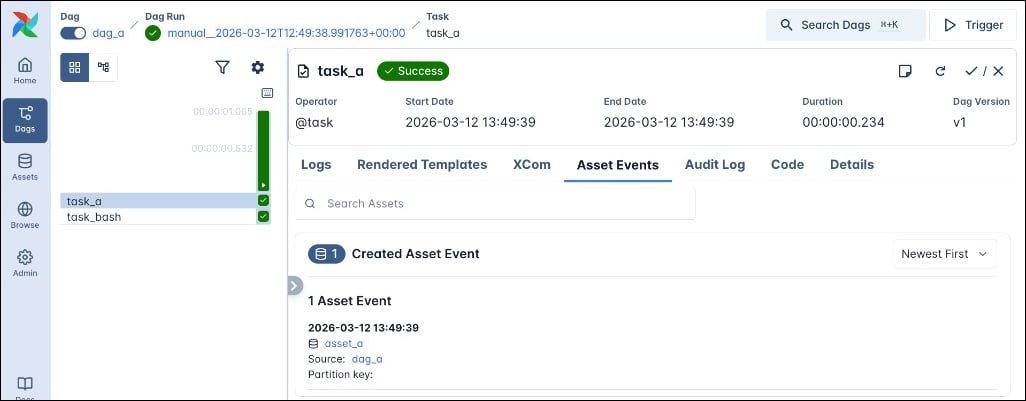

The Asset Events tab of the task instance details page lists all asset events that one task instance task produced.

• A POST request to the assets endpoint of the Airflow REST API.

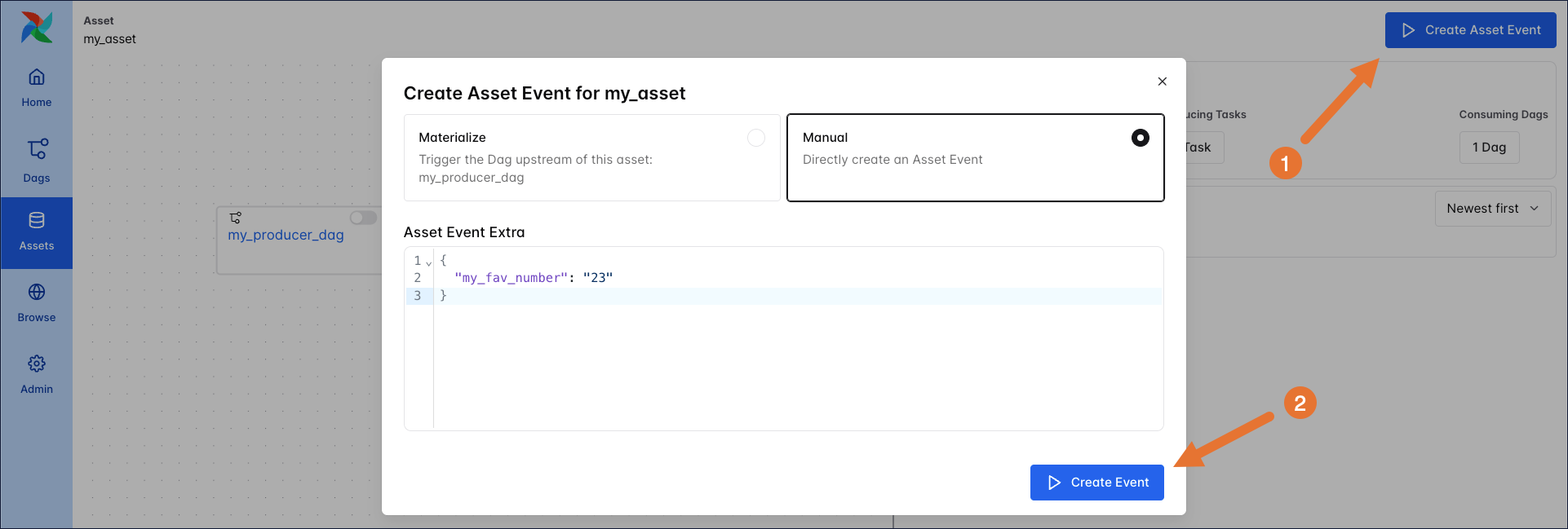

• A manual update in the Airflow UI by using the Create Asset Event button on the asset graph. There are two options when creating an asset event in the UI:

  • Materialize: This option runs the full Dag which contains the task that produces the asset event.
  • Manual: This option directly creates a new asset event without running any task that would normally produce the asset event. This option is useful for testing or when you want to create an asset event for an asset that is not updated from within a Dag in this Airflow instance.



• A Dag defined using @asset completes successfully. Under the hood, @asset creates a Dag with one task which produces the asset, see asset decorator syntax for more information.

• An AssetWatcher that listens for a TriggerEvent caused by a message in a message queue. See event-driven scheduling for more information.

Asset schedule

Once a Dag is scheduled on one (or more) assets and unpaused in the Airflow UI, it will run as soon as an asset event is created for each of the assets it is scheduled on, regardless of the method that created the asset event.

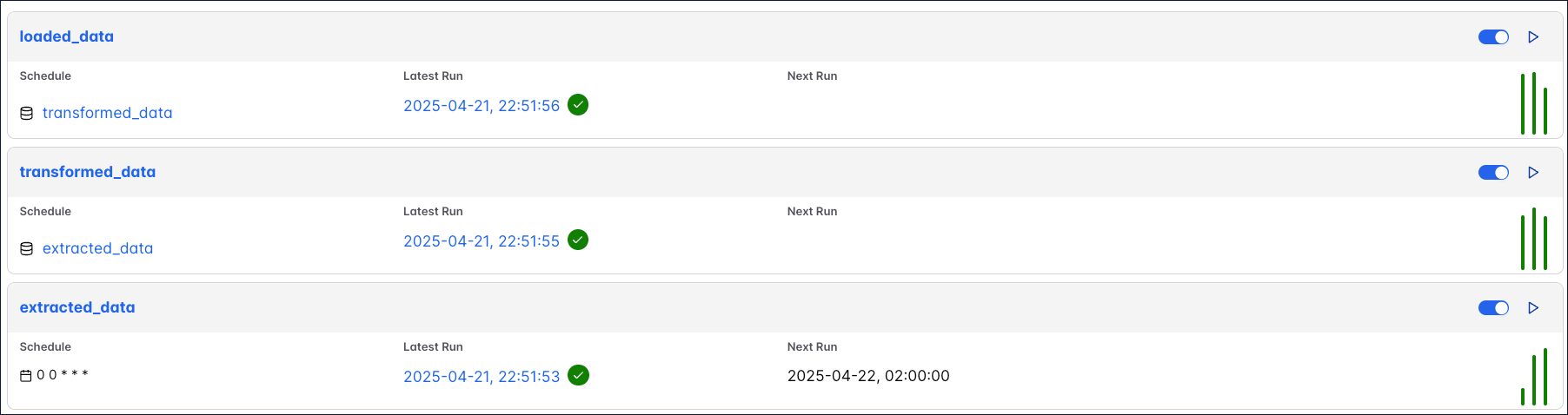

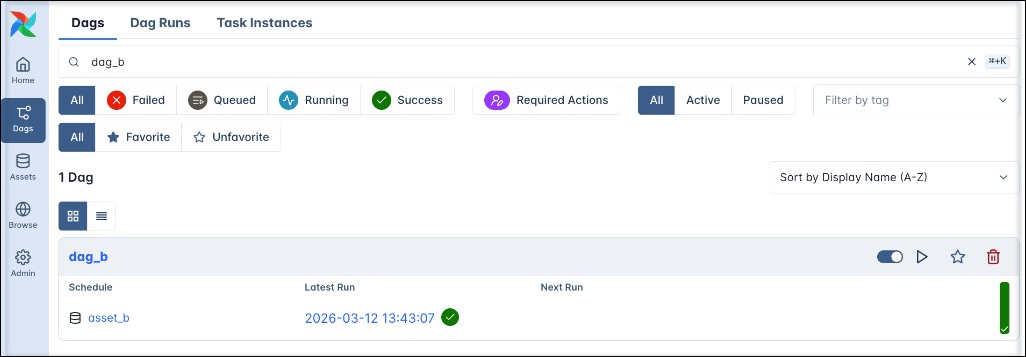

In the Dags view you can see which asset a Dag is scheduled on in the “Schedule” column.

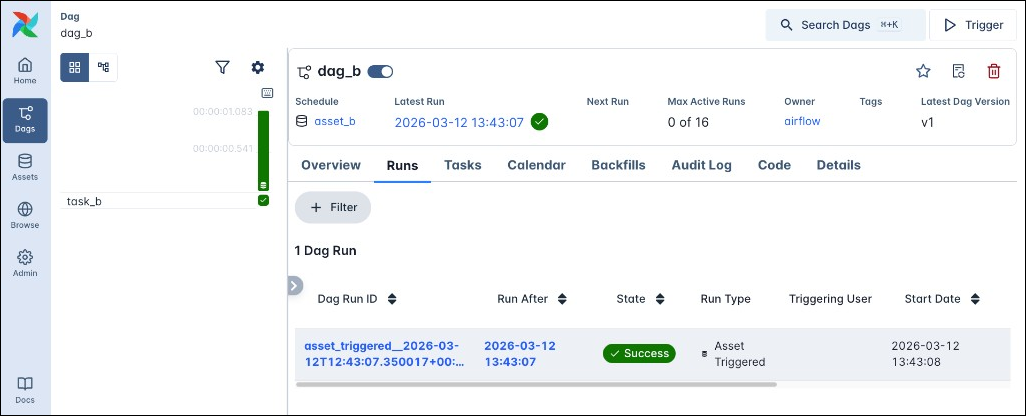

Any asset-based runs of this Dag have a Dag ID starting with asset_triggered_, the Run Type Asset Triggered and a database icon on the Dag run duration bar.

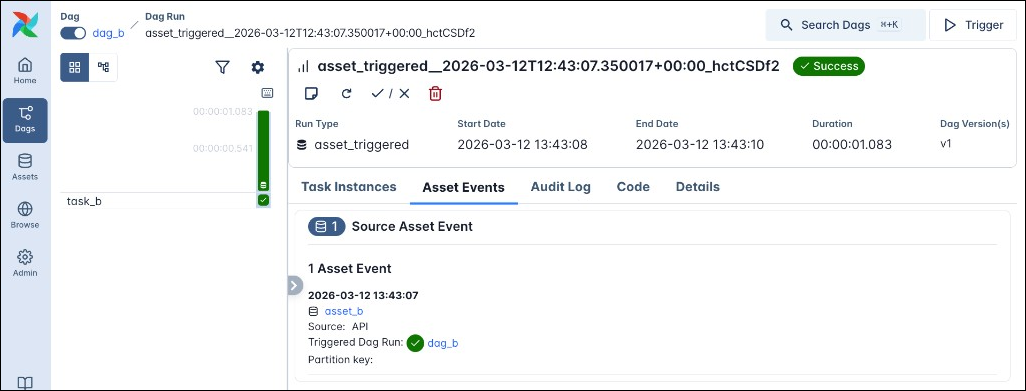

The Asset Events tab of the Dag run details page lists all asset events that triggered a particular Dag run (Source Asset Events)

There are some important rules to note about the asset schedule:

• Asset events only count towards the schedule of a Dag while the Dag is unpaused. If the Dag is paused it will ignore all updates to assets and start with a blank slate upon being unpaused.
• Dags that are scheduled on an asset are triggered every time a task that updates that asset completes successfully. For example, if task1 and task2 both produce asset_a, a consumer Dag of asset_a runs twice - first when task1 completes, and again when task2 completes.
• Dags scheduled on an asset are triggered as soon as the first task with that asset as an outlet finishes, even if there are downstream producer tasks that also operate on the asset.
• If you provide several assets in the schedule parameter of a Dag, the Dag will run as soon as an asset event is created for each of the assets it is scheduled on. After a Dag run the schedule is reset and the Dag will again wait for an asset event to be created for each of the assets it is scheduled on after the last Dag run. See Multiple Assets in the Airflow documentation for more information. For more complex multi-asset scheduling scenarios, see Options for advanced asset-based scheduling.
• Dags that are triggered by assets do not have the concept of a data interval. If you need to pass time-based information to a downstream Dag, use a partitioned asset schedule.

Asset graph

Clicking on any asset opens the asset graph for this asset. Each asset graph has 2 different views:

• Scheduling: This view connects each Dag with all assets that any tasks in said Dag produce updates to, as well as any Dags scheduled on an asset.

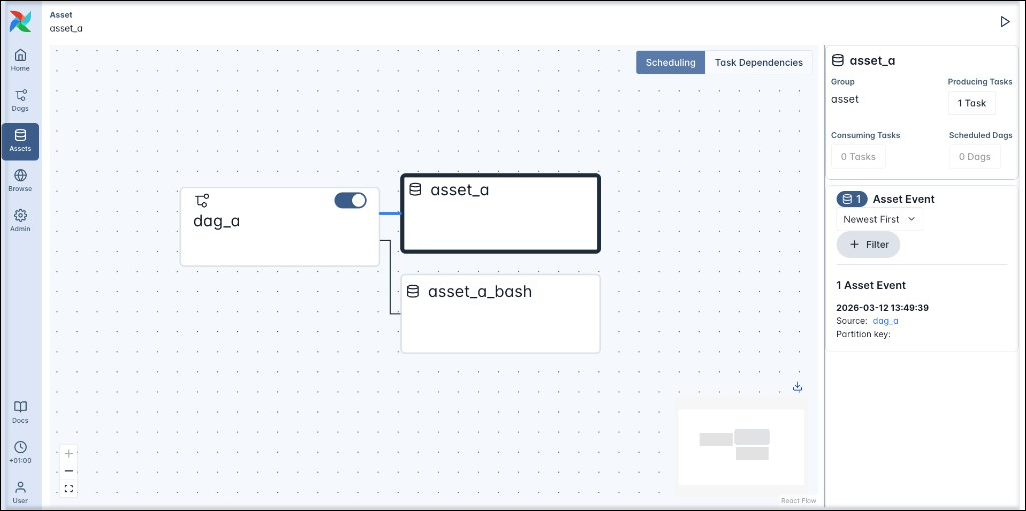

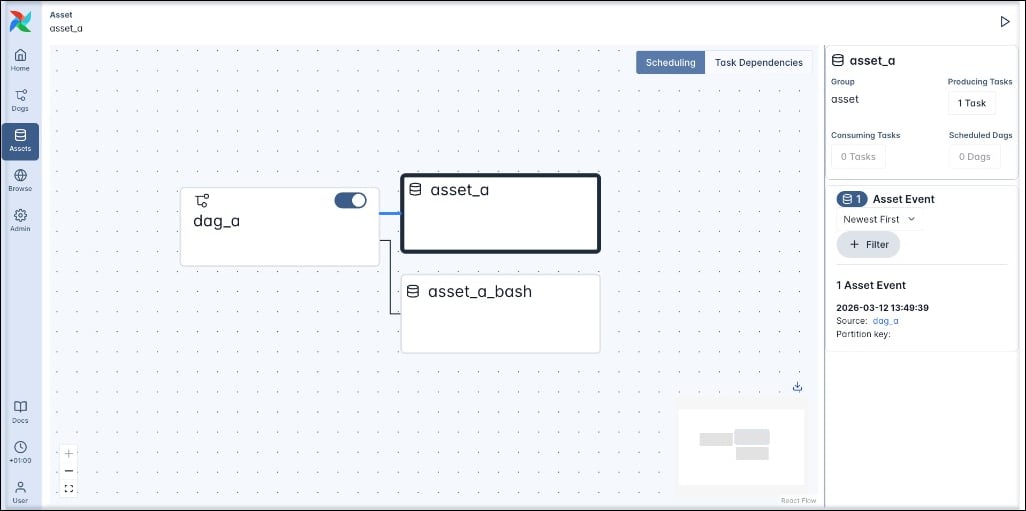

For example the Scheduling view for the asset graph for asset_a shows the relationship between the dag_a Dag and the asset_a and asset_a_bash assets (even though asset_a and asset_a_bash are not directly connected to each other).

• Task Dependencies: This view connects each task with all asset that the task updates through its outlets parameter, as well as any tasks that have the asset as one of their inlets parameter.

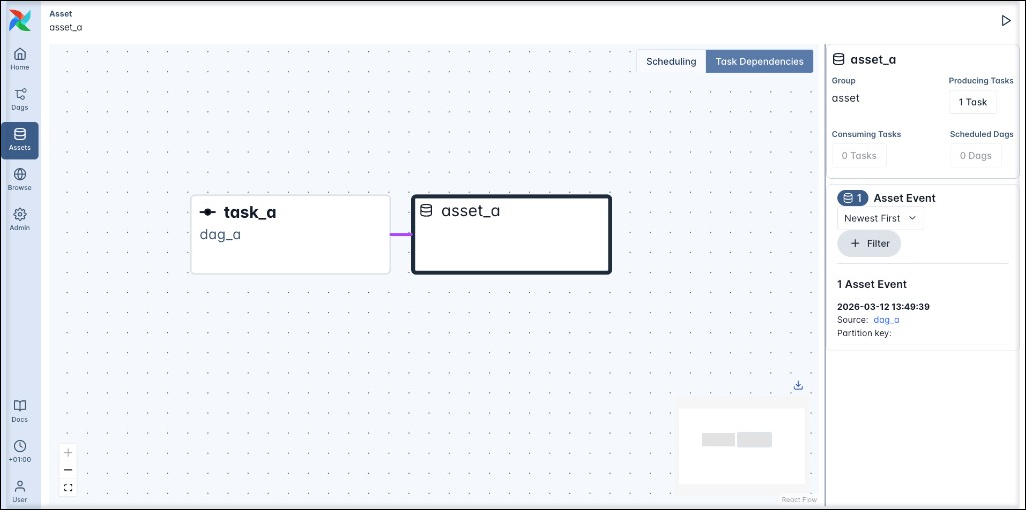

For example the Task Dependencies view for the asset graph for asset_a shows the relationship between the asset_a and task_a which has asset_a defined in its outlets parameter.

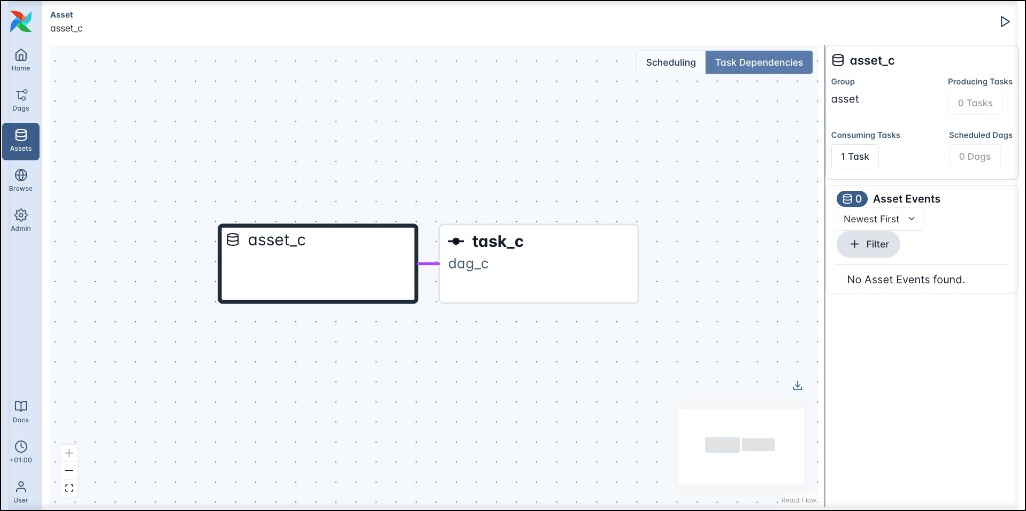

Similarly, the Task Dependencies view for asset_c shows the relationship between the asset_c and task_c which has asset_c defined in its inlets parameter. Note that the Scheduling view for the asset graph of asset_c is empty because inlets do not affect any Dag scheduling.

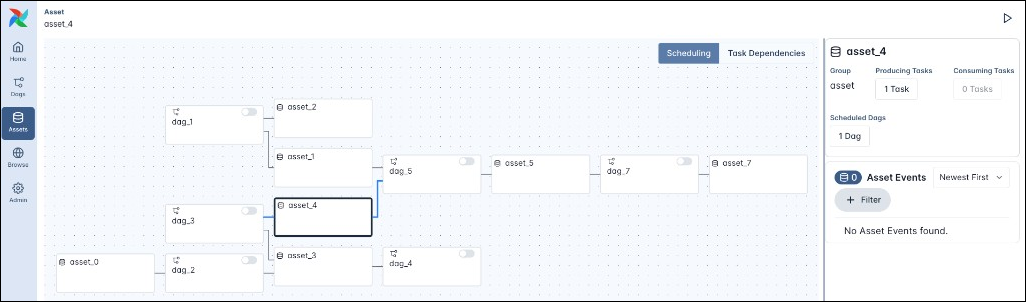

The asset graph allows you to track asset-based schedules across many Dags and tasks. The screenshot below shows a more complex example of the asset graph for asset_4 which contains seven assets and six Dags.

1
from airflow.sdk import Asset, dag, task
2
3
@dag
4
def dag_1():
5
6
    @task(outlets=[Asset("asset_1")])
7
    def task_1():
8
        pass
9
10
    task_1()
11
12
    @task(outlets=[Asset("asset_2")])
13
    def task_2():
14
        pass
15
16
    task_2()
17
18
dag_1()
19
20
@dag(schedule=[Asset("asset_0")])
21
def dag_2():
22
23
    @task(outlets=[Asset("asset_3")])
24
    def task_3():
25
        pass
26
27
    task_3()
28
29
30
dag_2()
31
32
@dag
33
def dag_3():
34
35
    @task(outlets=[Asset("asset_3"), Asset("asset_4")])
36
    def task_5():
37
        pass
38
39
    task_5()
40
41
42
dag_3()
43
44
45
@dag(schedule=[Asset("asset_3")])
46
def dag_4():
47
48
    @task
49
    def task_7():
50
        pass
51
52
    task_7()
53
54
dag_4()
55
56
@dag(schedule=[Asset("asset_4"), Asset("asset_1")])
57
def dag_5():
58

59
    @task(outlets=[Asset("asset_5")])
60
    def task_8():
61
        pass
62
63
    task_8()
64
65
dag_5()
66
67
@dag(schedule=[Asset("asset_5")])
68
def dag_7():
69

70
    @task(outlets=[Asset("asset_7")])
71
    def task_10():
72
        pass
73
74
    task_10()
75
76
dag_7()

Options for advanced asset-based scheduling

The advanced asset-based scheduling guide covers more complex asset-based scheduling scenarios, such as:

• Conditional asset scheduling: Schedule a Dag based on an asset expression, which can include any combination of assets, and | (OR) and & (AND) logical operators.
• Combined asset and time-based scheduling: Schedule a Dag to run on both a time-based schedule (cron or any other Timetable) plus whenever an asset expression is fulfilled.
• Asset event extras: Attach extra information to an asset event and retrieve it in downstream tasks.
• Partitioned asset schedules: Attach partition keys to asset events to create partitioned Dag runs.
• Asset aliases: Create named aliases for assets to reference in your Dag code and attach asset events to the alias at runtime. This is especially useful when using assets in dynamic task mapping.
• Cross-deployment dependencies: You can use assets to trigger a Dag in one Airflow environment from within a Dag in another Airflow environment.
• Asset listeners: Use listeners to run code when certain asset events occur anywhere in your Airflow instance.

Example: Basic asset-based scheduling

The simplest asset schedule is one Dag scheduled based on updates to one asset which is produced to by one task. In this example, we define that the my_producer_task task in the my_producer_dag Dag produces updates to the my_asset asset, creating attached asset events, and schedule the my_consumer_dag Dag to run once for every asset event created.

First, provide the asset to the outlets parameter of the producer task.

1
from airflow.sdk import Asset, dag, task
2
3
@dag
4
def my_producer_dag():
5
6
    @task(outlets=[Asset("my_asset")])
7
    def my_producer_task():
8
        pass
9
10
    my_producer_task()
11
12
my_producer_dag()

1
from airflow.sdk import Asset, DAG
2
from airflow.providers.standard.operators.python import PythonOperator
3
4
with DAG(dag_id="my_producer_dag"):
5
6
    def my_function():
7
        pass
8
9
    my_task = PythonOperator(
10
        task_id="my_producer_task",
11
        python_callable=my_function,
12
        outlets=[Asset("my_asset")]
13
    )

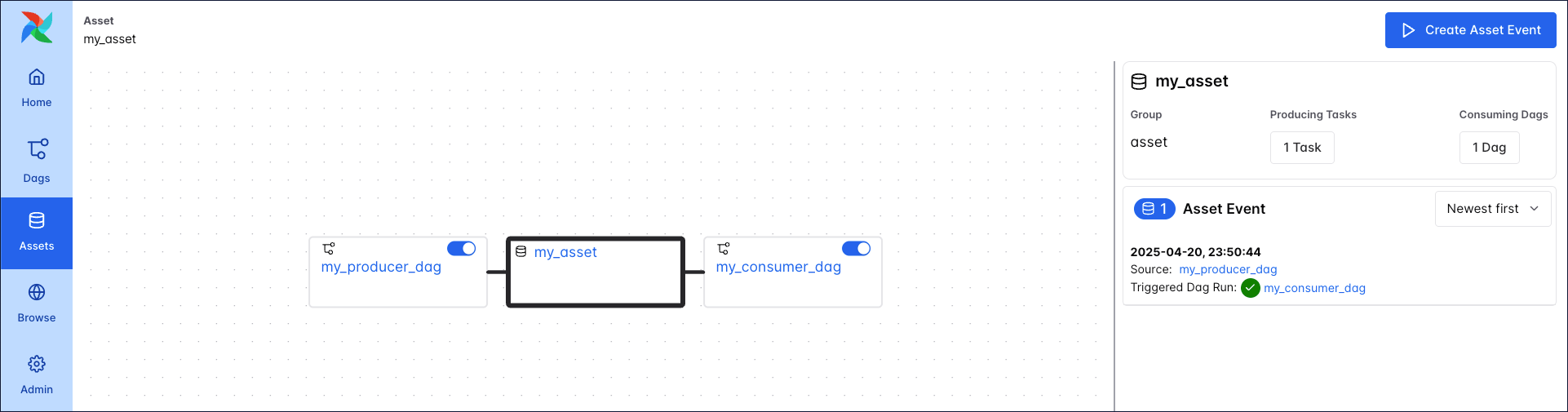

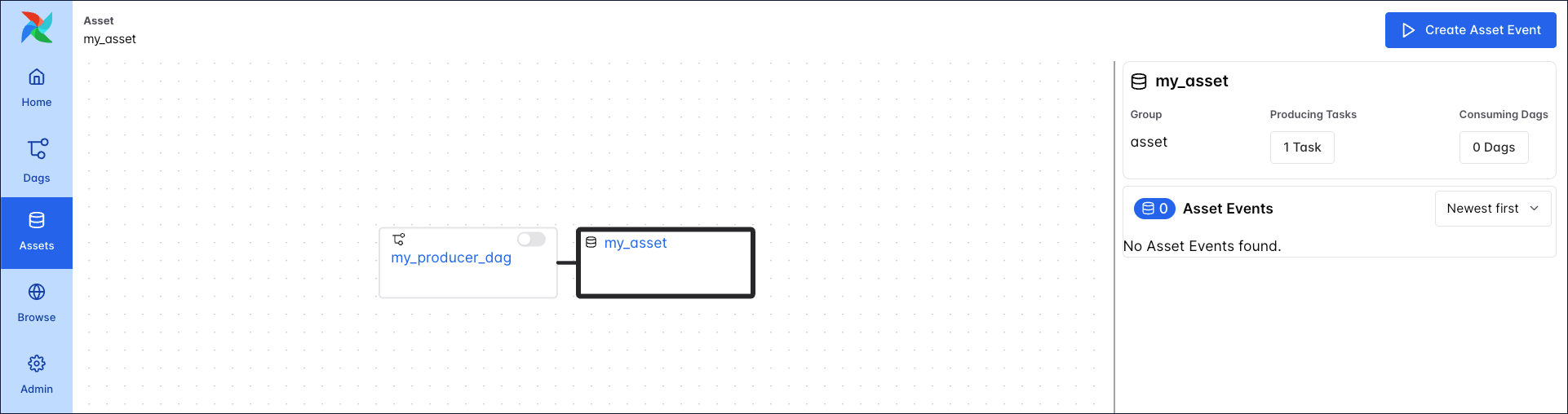

You can see the relationship between the Dag containing the producing task (my_producer_dag) and the asset in the Asset Graph located in the Assets tab of the Airflow UI.

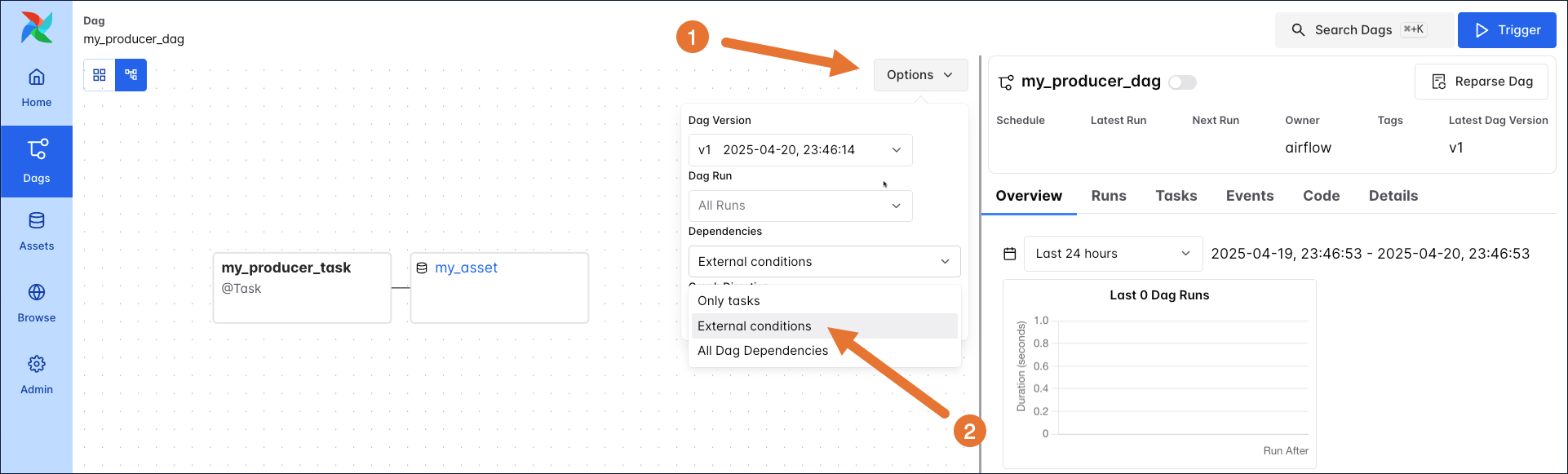

The graph view of the my_producer_dag shows the asset as well, if external conditions or all Dag dependencies are selected in the graph options Options.

Next, schedule the my_consumer_dag to run as soon as a new asset event is produced to the my_asset asset.

1
from airflow.sdk import Asset, dag
2
from airflow.providers.standard.operators.empty import EmptyOperator
3
4
@dag(
5
    schedule=[Asset("my_asset")],
6
)
7
def my_consumer_dag():
8
9
    EmptyOperator(task_id="empty_task")
10
11
my_consumer_dag()

1
from airflow.sdk import Asset, DAG
2
from airflow.operators.empty import EmptyOperator
3
4
with DAG(
5
    dag_id="my_consumer_dag",
6
    schedule=[Asset("my_asset")]
7
):
8
9
    EmptyOperator(task_id="empty_task")

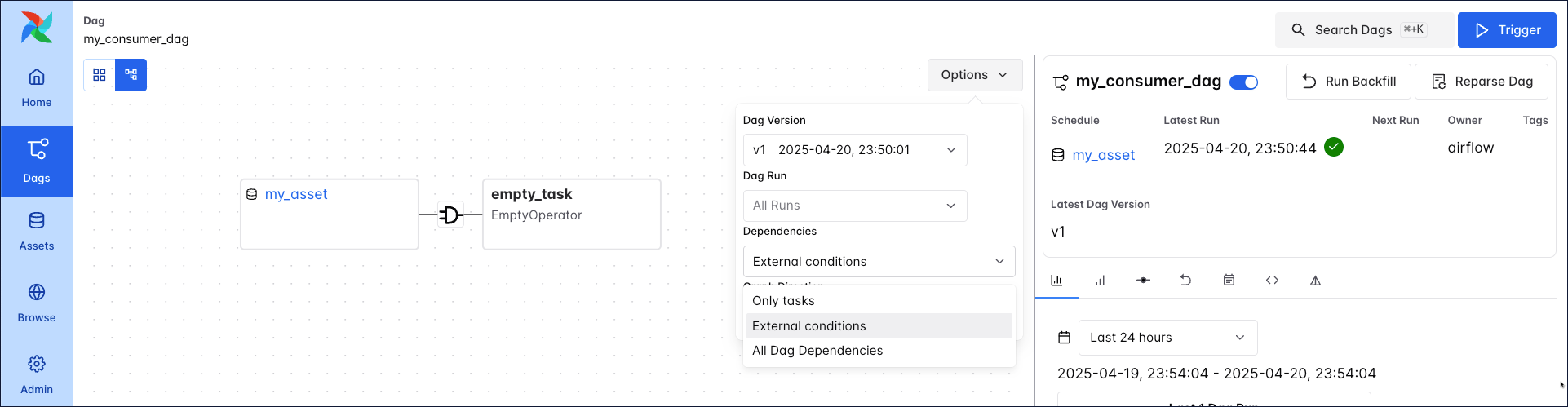

You can see the relationship between the Dag containing the producing task (my_producer_dag), the consuming Dag my_consumer_dag, and the asset in the asset graph located in the Assets tab of the Airflow UI.

When external conditions or all Dag dependencies are selected, the my_consumer_dag graph shows the asset as well.

After unpausing the my_consumer_dag, every successful completion of the my_producer_task task triggers a run of the my_consumer_dag.

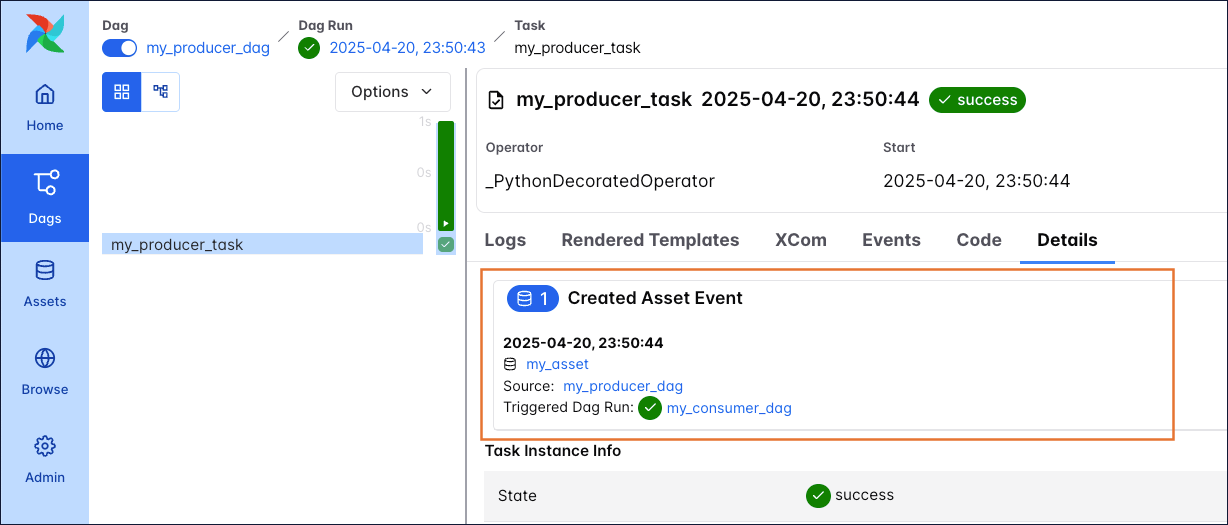

The producing task lists the Asset Events it caused in its details page, including a link to the Triggered Dag Run.

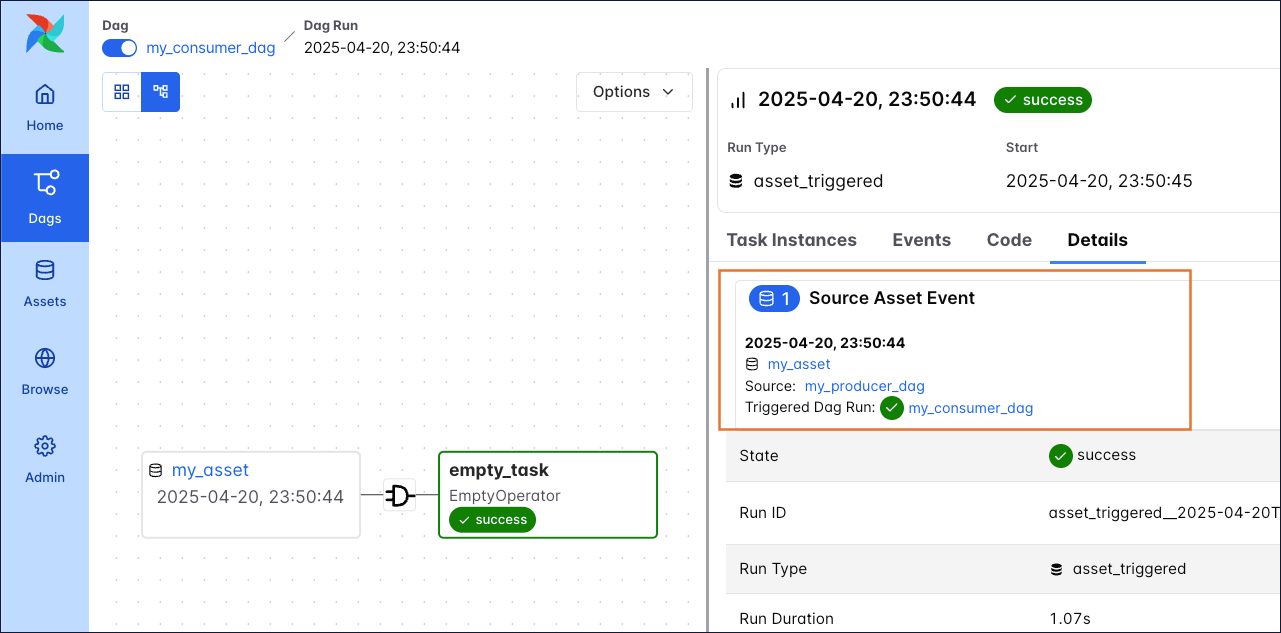

The triggered Dag run of the my_consumer_dag also lists the asset event, including a link to the source Dag from within which the asset event was created.
