Data quality and Airflow

Data quality is fundamental to trustworthy analytics and AI. Silent data issues, like missing records, schema changes, or duplicate entries, can go undetected until dashboards break or models fail. By then, the damage is done. This guide covers Dag-level checks with SQL check operators, pre-load checks against files in object storage, and third-party frameworks.

Dag-level checks

SQL check operators that run as part of your pipeline, with full control over failure behavior and notifications.

Pre-load checks

The AnalyticsOperator runs SQL against files in object storage before they are loaded.

Third-party frameworks

Great Expectations, dbt tests, and Soda Core for additional validation capabilities.

This guide uses Airflow 3.3 and version 2.1 of the Common SQL provider. If you use a different version, especially a different major version, some details might not apply to your setup.

Types of data quality challenges

Volume anomalies: Unexpected spikes or drops in row counts.
Schema drift: Column types changing without notice.
Completeness issues: Null values in critical fields.
Duplicate records: Compromising uniqueness constraints.
Business rule violations: Negative amounts, invalid dates, orphaned records.

Where to run your checks

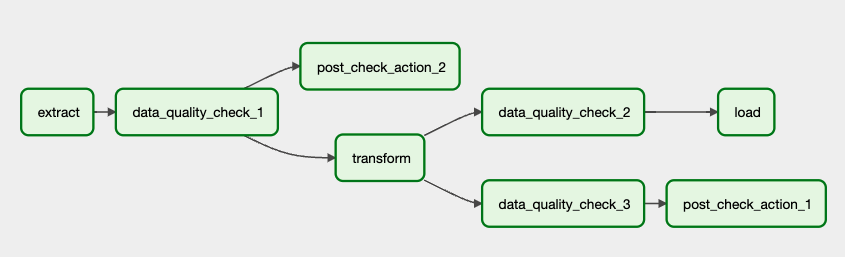

Data quality checks can be run at multiple points in a pipeline. Often teams want two different checks: against files before they are loaded, and against tables after the load.

	Pre-load checks	In-warehouse checks
Runs against	Files in object storage	Tables in a database or warehouse
Runs when	Before the load	During or after the load
Query engine	Apache DataFusion	Your database or warehouse
Operators	`AnalyticsOperator`	SQL check operators
Failure behavior	Returns query results, so a downstream task raises the exception	Fails the task directly (see the following note)
Compute	No warehouse compute, and the queried table does not have to exist	Warehouse compute
Use for	Row counts, null counts, and format validation on incoming files	Business rules, multi-table joins, and comparisons against previous runs

Dag-level checks do not have to stop your pipelineYou have several options to control failure behavior:

Trigger rules: Use trigger rules like all_done or none_failed_min_one_success on downstream tasks to continue despite failed checks. See Airflow trigger rules.
Branching: Use the BranchSQLOperator to route to a quarantine path instead of failing.
Shell exit code handling: When calling third-party frameworks through @task.bash, append || true or || exit 0 to prevent non-zero exit codes from failing the task.
Skip instead of fail: Set skip_on_exit_code in @task.bash(...) to mark tasks as skipped rather than failed.

Important: Even when a task fails but the Dag succeeds (through trigger rules), task-level on_failure_callback still fires, ensuring you can get notified about check failures without blocking your pipeline.

Choose a tool

Which tool you choose is determined by the needs and preferences of your organization. Astronomer recommends using Dag-level checks with SQL check operators if you want to:

Write checks without needing to set up software in addition to Airflow.
Write checks as Python dictionaries and in SQL.
Use any SQL statement that returns a single row of booleans as a data quality check.
Implement many different downstream dependencies depending on the outcome of different checks.
Have full observability of which checks failed from within Airflow task logs, including the full SQL statements of failed checks.

Astronomer recommends using Dag-level checks with a data validation framework such as Great Expectations or Soda in the following circumstances:

You want to collect the results of your data quality checks in a central place.
You prefer to write checks in JSON (Great Expectations) or YAML (Soda).
Most or all of your checks can be implemented by the predefined checks in the solution of your choice.
You want to abstract your data quality checks from the Dag code.

In both cases, Astronomer recommends adding pre-load checks with the AnalyticsOperator to validate incoming files before they are loaded.

Dag-level checks with Airflow

When to use each operator

Use case	Recommended operator
Primary key validation	`SQLColumnCheckOperator`
Null/duplicate checks	`SQLColumnCheckOperator`
Value range validation	`SQLColumnCheckOperator`
Row count thresholds	`SQLTableCheckOperator`
Cross-column business rules	`SQLTableCheckOperator`
Aggregate validations	`SQLTableCheckOperator`
Compare to expected value	`SQLValueCheckOperator`
Compare to historical data	`SQLIntervalCheckOperator`
Min/max threshold validation	`SQLThresholdCheckOperator`
Complex multi-table queries	`SQLCheckOperator`

SQL check operators

To access the SQL check operators, install the Common SQL provider:

apache-airflow-providers-common-sql

Import and use them within your Dag:

from airflow.providers.common.sql.operators.sql import (
    SQLColumnCheckOperator,
    SQLTableCheckOperator,
    SQLCheckOperator,
    SQLValueCheckOperator,
    SQLIntervalCheckOperator,
    SQLThresholdCheckOperator,
)

SQLCheckOperator

The SQLCheckOperator is the most generic check operator. It runs any SQL query and evaluates the result, giving you enough freedom to cover complex business rules. The check fails if any returned value evaluates to False in Python (for example, 0, None, empty string).

_check_no_orphaned_payments = SQLCheckOperator(
    task_id="check_no_orphaned_payments",
    conn_id=_DB_CONN_ID,
    sql="""
        SELECT COUNT(*) = 0
        FROM payments p
        LEFT JOIN bookings b ON p.booking_id = b.booking_id
        WHERE b.booking_id IS NULL
    """,
)

SQLColumnCheckOperator

The SQLColumnCheckOperator validates individual columns using built-in check types. Define a column_mapping dictionary to run multiple checks in a single task.Built-in check types:

Check	Description
`null_check`	Count of NULL values
`unique_check`	Count of duplicate values
`distinct_check`	Count of unique values
`min`	Minimum value in column
`max`	Maximum value in column

Comparison options:

equal_to, greater_than, geq_to (>=)
less_than, leq_to (<=)
tolerance (percentage threshold, as a fraction: 0.1 = 10%)

_check_columns = SQLColumnCheckOperator(
    task_id="check_non_promo_bookings_columns",
    conn_id=_DB_CONN_ID,
    table="bookings",
    partition_clause="promo_code IS NOT NULL",
    column_mapping={
        "booking_id": {
            "null_check": {"equal_to": 0},
            "unique_check": {"equal_to": 0},
        },
        "passengers": {
            "min": {"geq_to": 1},
            "max": {"leq_to": 10, "tolerance": 0.05},  # 5% tolerance
        },
    },
)

partition_clauseThe optional partition_clause is an additional WHERE filter applied before the checks. It can be added at the operator level (partitions all checks), at the column level in the column mapping (partitions all checks for that column), or at the check level (partitions just that check).

SQLTableCheckOperator

The SQLTableCheckOperator runs custom SQL expressions against a given table that must evaluate to true. It is suited for business rules spanning multiple columns or requiring aggregations.

_check_report_business_rules = SQLTableCheckOperator(
    task_id="check_report_business_rules",
    conn_id=_DB_CONN_ID,
    table="daily_planet_report",
    checks={
        "net_fare_not_negative": {
            "check_statement": "total_net_fare_usd >= 0",
        },
        "discounts_leq_gross": {
            "check_statement": "total_discounts_usd <= total_gross_fare_usd",
        },
        "has_rows_for_today": {
            "check_statement": "COUNT(*) >= 1",
            "partition_clause": "report_date = '{{ ds }}'",
        },
    },
)

The SQLTableCheckOperator also supports an optional partition_clause on check level for an additional WHERE filter applied before the check.

SQLValueCheckOperator

Performs a simple value check by comparing a SQL result to an expected value (pass_value). The value can be of any type. For numerical values, you can set an additional tolerance percentage.

_check_planet_count = SQLValueCheckOperator(
    task_id="check_planet_count",
    conn_id=_DB_CONN_ID,
    sql="SELECT COUNT(*) FROM planets",
    pass_value=3,
    tolerance=0.1,  # 10% tolerance
)

SQLIntervalCheckOperator

Verify that metrics defined as SQL expressions remain within tolerance compared to those from previous days (days_back). This utility helps track how values change over time and identify potential outliers.

_check_bookings_vs_last_week = SQLIntervalCheckOperator(
    task_id="check_bookings_vs_last_week",
    conn_id=_DB_CONN_ID,
    table="bookings",
    date_filter_column="CAST(booked_at AS DATE)",
    days_back=-7,
    ratio_formula="max_over_min",
    metrics_thresholds={"COUNT(*)": 3},  # max 3x deviation
)

DefaultsThe default for days_back is -7, and ds for the date_filter_column. Always set date_filter_column explicitly to your table’s actual date column.

SQLThresholdCheckOperator

Performs a value check against a minimum and maximum threshold.

_check_avg_fare_in_range = SQLThresholdCheckOperator(
    task_id="check_avg_fare_in_range",
    conn_id=_DB_CONN_ID,
    sql="SELECT AVG(amount_usd) FROM payments",
    min_threshold=40000,
    max_threshold=80000,
)

SQL expression thresholdsThresholds can also be SQL expressions, not just numeric values. For example: min_threshold="SELECT MIN(target_avg) FROM benchmarks".

Notifications

Detecting data quality issues is only part of the story. The other part is raising awareness. To be notified when a data quality check fails, combine the on_failure_callback task parameter with Airflow notifiers. Slack example: To use the SlackNotifier, install the following package:

apache-airflow-providers-slack

In the templated text field, you can access the table through task.table and the actual quality issue through exception.

from airflow.providers.slack.notifications.slack import SlackNotifier

SQLTableCheckOperator(
    task_id="business_rule_checks",
    on_failure_callback=SlackNotifier(
        slack_conn_id="slack_default",
        text="""
            Data quality checks failed for table: `{{ task.table }}`!
            ```
            {{ exception }}
            ```
        """,
        channel="#data-alerts",
    ),
    ...
)

SlackNotifierThe SlackNotifier requires a properly configured Slack connection. In this case, the connection ID is slack_default.

AppriseNotifierThe AppriseNotifier supports 100+ notification services (Slack, Email, PagerDuty, Teams, etc.) through a unified interface. Install it using apache-airflow-providers-apprise.

Check patterns

Astronomer recommends running column checks first (field-level validation), followed by table checks (business logic), and then proceed with downstream processing. Additionally, use task groups to organize your data quality checks and use the default_args parameter to configure notifications for all checks at once.

@task_group(
    default_args={
        "on_failure_callback": notify_dq_failure,
    },
)
def data_quality_checks():
    _column_checks = SQLColumnCheckOperator(...)
    _table_checks = SQLTableCheckOperator(...)

Pre-load checks with the AnalyticsOperator

The AnalyticsOperator runs SQL directly against files in object storage using Apache DataFusion. Use it to validate files before they are loaded into a warehouse. The operator reads from Amazon S3 and the local filesystem, supports the Parquet, CSV, and Avro formats, and queries Apache Iceberg tables through a catalog. To access the AnalyticsOperator, install the Common SQL provider with the datafusion extra:

apache-airflow-providers-common-sql[datafusion]

Define a datasource

A DataSourceConfig defines the location and format of the files the operator queries:

from airflow.providers.common.sql.config import DataSourceConfig
from airflow.providers.common.sql.operators.analytics import AnalyticsOperator

_landing_bookings = DataSourceConfig(
    conn_id="aws_default",
    table_name="raw_bookings",
    uri="s3://daily-planet-landing/bookings/",
    format="parquet",
)

table_name is the identifier you reference in your queries. It does not have to exist in a database.

Partitioned dataFor partitioned data, pass the partition columns through options. For example: options={"table_partition_cols": [("year", "integer")]}.

Run the checks

Pass your datasource configs and a list of queries to the operator:

_check_landing_zone = AnalyticsOperator(
    task_id="check_landing_zone",
    datasource_configs=[_landing_bookings],
    queries=[
        "SELECT COUNT(*) AS row_count FROM raw_bookings",
        "SELECT COUNT(*) AS null_ids FROM raw_bookings WHERE booking_id IS NULL",
    ],
    result_output_format="json",
)

Fail the task on the results

The AnalyticsOperator runs your queries and returns the results. Unlike the SQL check operators, it does not evaluate a condition or fail. If you want to fail your Dag based on the check results, add a downstream task that reads the results and raises an exception:

import json

from airflow.exceptions import AirflowException
from airflow.sdk import task


@task
def validate_landing_zone(raw: str) -> None:
    results = json.loads(raw)
    row_count = results[0]["data"][0]["row_count"]
    null_ids = results[1]["data"][0]["null_ids"]

    if row_count == 0 or null_ids > 0:
        raise AirflowException(
            f"Check failed: {row_count} rows, {null_ids} null booking_id values"
        )


validate_landing_zone(_check_landing_zone.output)

Aggregate in SQLmax_rows_check defaults to 100. Aggregate in SQL rather than pulling rows into XCom. A check should return a number, not a dataset.

Third-party frameworks

Great Expectations

The airflow-provider-great-expectations package provides operators for running Great Expectations validations directly in your Dags. When deciding which operator fits your use case, consider:

Where is your data? In memory as a DataFrame, or in an external data source?
Do you need to trigger actions? Such as sending notifications or updating external systems based on validation results.
What Data Context do you need? Ephemeral for stateless validations, or persistent to track results over time.

Scenario	Recommended operator
Data already in memory as Pandas or Spark DataFrame	`GXValidateDataFrameOperator`
Data in a database, warehouse, or file system	`GXValidateBatchOperator`
Need to trigger Slack notifications, emails, or other actions	`GXValidateCheckpointOperator`
Want full GX Core features with ValidationDefinitions	`GXValidateCheckpointOperator`

See Orchestrate Great Expectations with Airflow to learn how to use these operators in your Dag.

dbt tests

If you use dbt with Airflow through Cosmos, use dbt’s built-in testing framework:

Schema tests: unique, not_null, accepted_values, relationships.
Custom tests: SQL-based assertions for business-specific validation.

See Orchestrate dbt Core with Airflow for integration patterns.

Soda Core

Run Soda checks using @task.bash:

@task.bash
def soda_scan():
    return "soda scan -d snowflake -c soda_config.yml checks.yml"

Quick reference

Approach	Best for	Trade-offs
`SQLColumnCheckOperator`	Column-level validation (null, unique, min/max)	Requires code changes
`SQLTableCheckOperator`	Business rules, aggregations	Requires code changes
`SQLValueCheckOperator`	Compare to expected value with tolerance	Simple comparisons only
`SQLIntervalCheckOperator`	Compare to historical data	Requires consistent history
`SQLThresholdCheckOperator`	Min/max bounds validation	Simple bounds only
`SQLCheckOperator`	Complex multi-table queries	Most flexible, most verbose
`AnalyticsOperator`	Validating files in object storage before load	Returns results instead of failing, so it requires a downstream task to be a gate
`GXValidateDataFrameOperator`	In-memory DataFrame validation	Requires data in memory
`GXValidateBatchOperator`	Database/file validation using BatchDefinition	More setup than DataFrame
`GXValidateCheckpointOperator`	Full GX features with actions	Most configuration required
dbt tests	Model-layer validation	Requires dbt
Soda Core	Declarative YAML-based checks	Additional tool

Conclusion

Pre-load checks with the AnalyticsOperator validate files before they are loaded, without warehouse compute. Dag-level SQL check operators validate tables after the load and fail the task when a check does not pass. Many teams should use both, and set the failure behavior for each check based on whether it should stop the pipeline.

Overview

Get started

Airflow and AI

Airflow concepts

Tutorials

Integrations & connections

Reference Architectures

Observability concepts

Glossary

Data quality and Airflow

Dag-level checks

Pre-load checks

Third-party frameworks

Types of data quality challenges

Where to run your checks

Choose a tool

Dag-level checks with Airflow

When to use each operator

SQL check operators

Notifications

Check patterns

Pre-load checks with the AnalyticsOperator

Define a datasource

Run the checks

Fail the task on the results

Third-party frameworks

Great Expectations

dbt tests

Soda Core

Quick reference

Conclusion

Dag-level checks

Pre-load checks

Third-party frameworks

​Types of data quality challenges

​Where to run your checks

​Choose a tool

​Dag-level checks with Airflow

​When to use each operator

​SQL check operators

​Notifications

​Check patterns

​Pre-load checks with the AnalyticsOperator

​Define a datasource

​Run the checks

​Fail the task on the results

​Third-party frameworks

​Great Expectations

​dbt tests

​Soda Core

​Quick reference

​Conclusion

Types of data quality challenges

Where to run your checks

Choose a tool

Dag-level checks with Airflow

When to use each operator

SQL check operators

Notifications

Check patterns

Pre-load checks with the AnalyticsOperator

Define a datasource

Run the checks

Fail the task on the results

Third-party frameworks

Great Expectations

dbt tests

Soda Core

Quick reference

Conclusion
