This guide explains how to identify and resolve common Airflow Dag issues. It also includes resources to try out if you can’t find a solution to an Airflow issue. While the focus of the troubleshooting steps provided lies on local development, much of the information is also relevant for running Airflow in a production context.
You can use AI to help you debug Airflow and Airflow Dags. Astronomer recommends using Otto, Astronomer’s data engineering agent. See the following resources for more information:
Consider implementing systematic testing of your Dags to prevent common issues. See the Best practices for testing Apache Airflow® Dags eBook.

​
Assumed knowledge

To get the most out of this guide, you should have an understanding of:

​
General Airflow debugging approach

To give yourself the best possible chance of fixing a bug in Airflow, contextualize the issue by asking yourself the following questions:
  • Is the problem with Airflow, or is it with an external system connected to Airflow? Test if the action can be completed in the external system without using Airflow.
  • What is the state of your Airflow components? Inspect the logs of each component and restart your Airflow environment if necessary.
  • Does Airflow have access to all relevant files? This is especially relevant when running Airflow in a containerized service like the Astro CLI.
  • Are your Airflow connections set up correctly with correct credentials? See Troubleshooting connections.
  • Is the issue with all Dags, or is it isolated to one Dag?
  • Can you collect the relevant logs? For more information on log location and configuration, see the Airflow logging guide.
  • Which versions of Airflow and Airflow providers are you using? Make sure that you’re using the correct version of the Airflow documentation.
  • Can you reproduce the problem in a new local Airflow instance using the Astro CLI?
Answering these questions will help you narrow down what kind of issue you’re dealing with and inform your next steps.

​
Airflow isn’t starting on the Astro CLI

The 3 most common ways to run Airflow locally are using the Astro CLI, running a standalone instance, or running Airflow in Docker. This guide focuses on troubleshooting the Astro CLI, which is an open source tool for quickly running Airflow on a local machine. The most common issues related to the Astro CLI are:
  • The Astro CLI wasn’t correctly installed. Run astro version to confirm that you can successfully run Astro CLI commands. If a newer version is available, consider upgrading.
  • There are errors caused by custom commands in the Dockerfile, or dependency conflicts with the packages in packages.txt and requirements.txt.
  • Airflow components are in a crash-loop because of errors in custom plugins or XCom backends. View scheduler logs using astro dev logs -s to troubleshoot.
To troubleshoot infrastructure issues when running Airflow on other platforms, for example in Docker, on Kubernetes using the Helm Chart or on managed services, refer to the relevant documentation and customer support. You can learn more about testing and troubleshooting locally with the Astro CLI in the Astro documentation.

​
Common Dag issues

This section covers common issues related to Dag code that you might encounter when developing.

​
Dags don’t appear in the Airflow UI

If a Dag isn’t appearing in the Airflow UI, it’s typically because Airflow is unable to parse the Dag. If this is the case, you’ll see an Import Error in the Airflow UI.

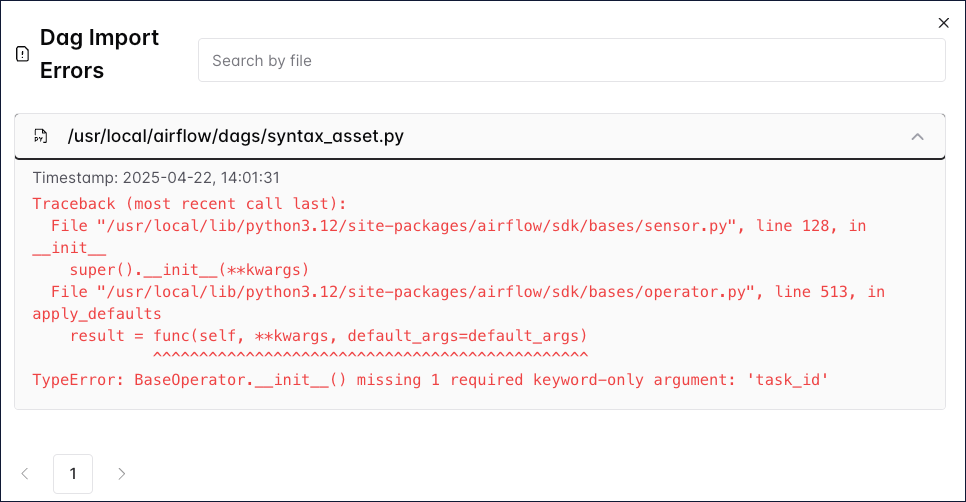

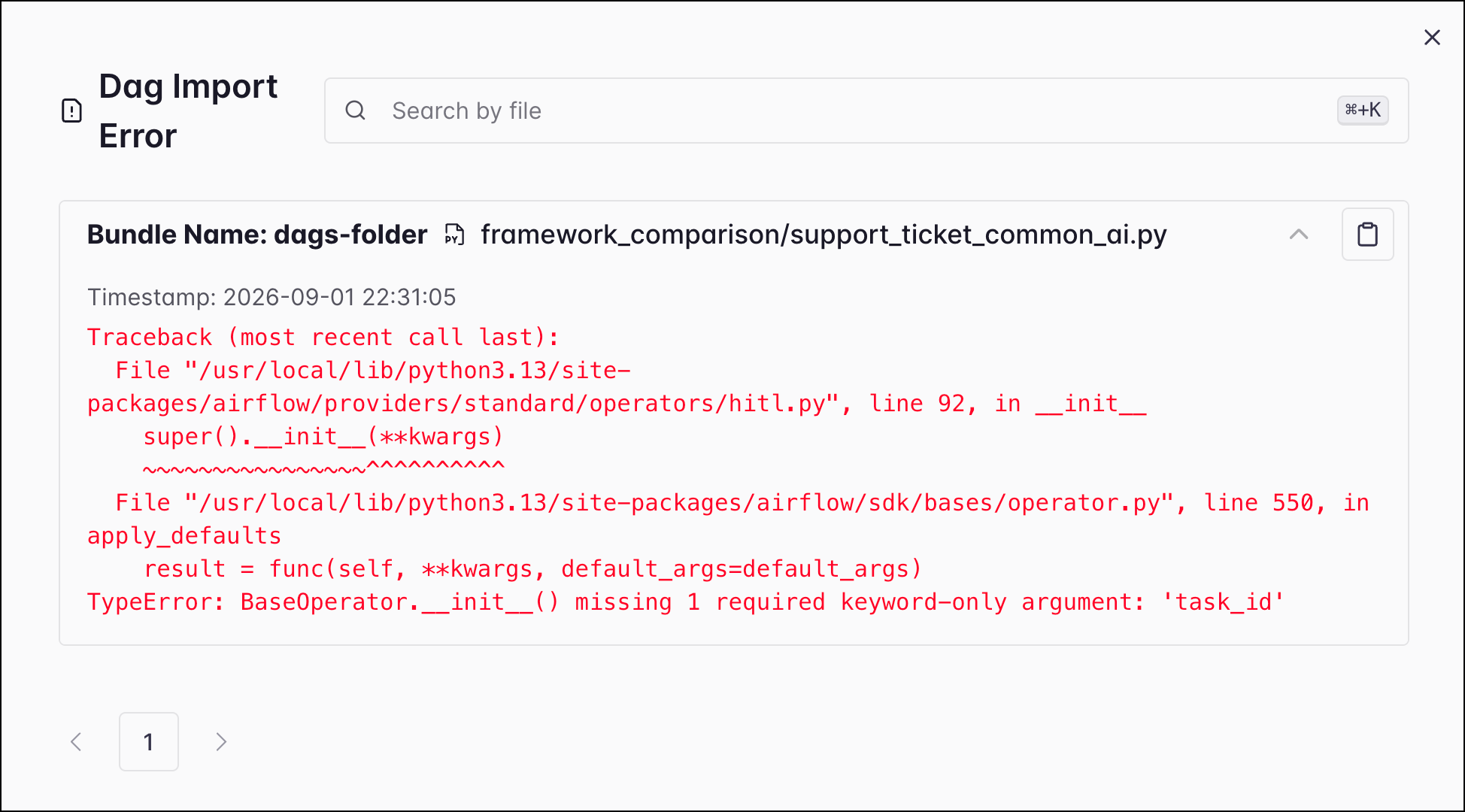

Dag Import Error panel showing a traceback for a missing task_id argument
The message in the import error can help you troubleshoot and resolve the issue. To view import errors in your terminal, run astro dev run dags list-import-errors with the Astro CLI, or run airflow dags list-import-errors with the Airflow CLI. If you don’t see an import error message but your Dags still don’t appear in the UI, try these debugging steps:
  • Make sure all of your Dag files are located in the dags folder.
  • Airflow scans the dags folder for new Dags every AIRFLOW__DAG_PROCESSOR__REFRESH_INTERVAL, which defaults to 5 minutes but can be modified. You can force reparsing of all files with astro dev run dags reserialize / airflow dags reserialize.
  • Ensure that you have permission to see the Dags, and that the permissions on the Dag file are correct.
  • Run astro dev run dags list with the Astro CLI or airflow dags list with the Airflow CLI to make sure that the Airflow Dag processor has serialized the Dag in the metadata database. If the Dag appears in the list but not in the UI, try restarting Airflow with astro dev restart.
  • Try restarting the Airflow Dag processor with astro dev restart.
  • If you see an error in the Airflow UI indicating that the Dag processor isn’t running, check the Dag processor logs. If you are using the Astro CLI, run astro dev logs -d and then try restarting.

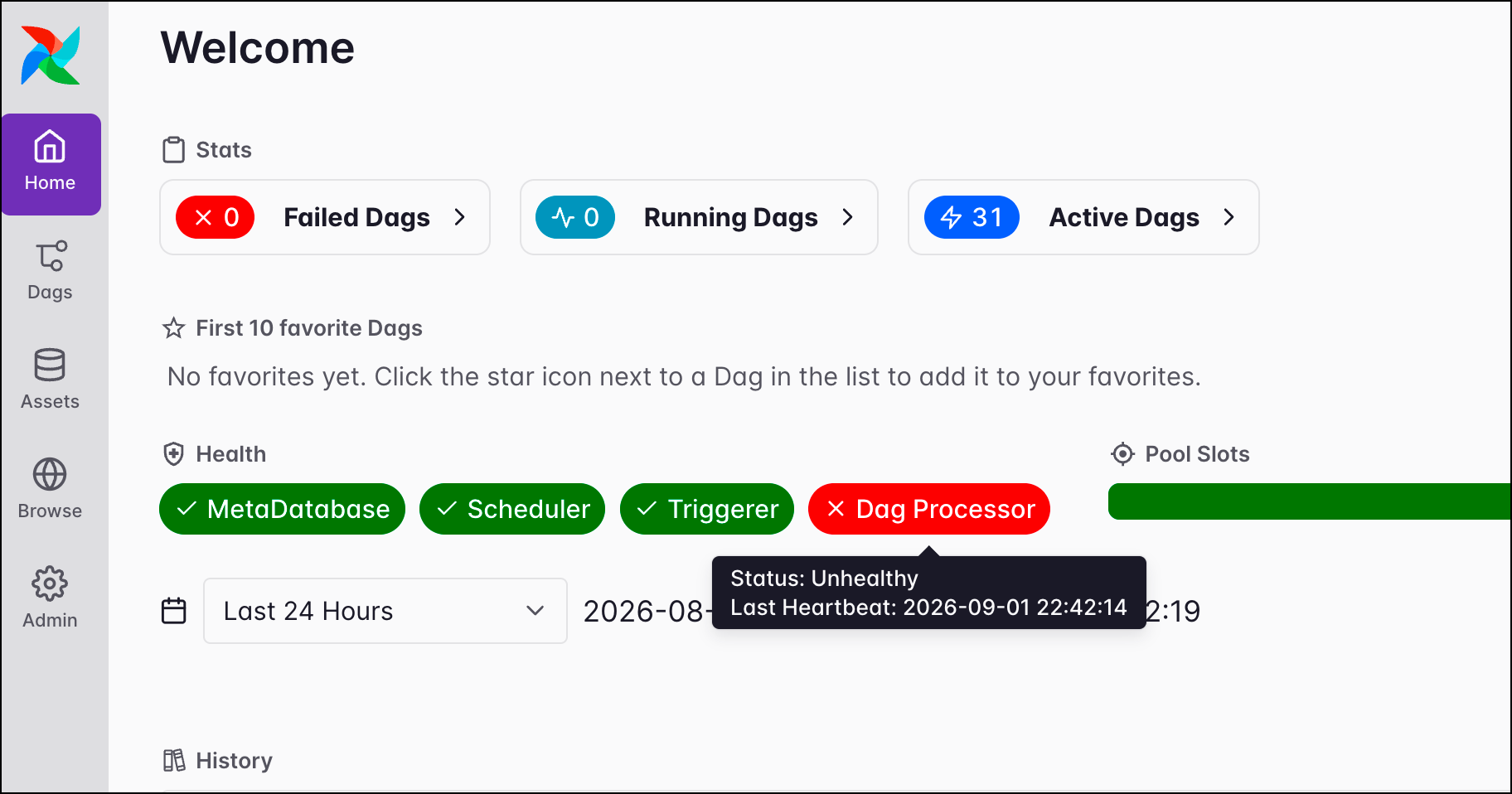

    Dag processor unhealthy
At the code level, ensure that each Dag: You can configure an Airflow listener as a plugin to run any Python code, either when a new import error appears (on_new_dag_import_error) or when the Dag processor finds a known import error (on_existing_dag_import_error). Note that these listener events are experimental, see Listeners in the Airflow documentation.

​
Import errors due to dependency conflicts

A frequent cause of Dag import errors isn’t having the necessary packages installed in your Airflow environment. You might be missing provider packages that are required for using specific operators or hooks, or you might be missing Python packages that are imported at the Dag level. In an Astro project, you can install OS-level packages by adding them to your packages.txt file. You can install Python-level packages, such as provider packages, by adding them to your requirements.txt file. If you need to install packages using a specific package manager, consider doing so by adding a bash command to your Dockerfile. To prevent compatibility issues when new packages are released, Astronomer recommends pinning a package version to your project. For example, adding apache-airflow-providers-amazon==9.35.0 to your requirements.txt file ensures that no future releases of apache-airflow-providers-amazon causes compatibility issues. If no version is pinned, Airflow will always use the latest available version. If you are using the Astro CLI, packages are installed in the scheduler container. You can confirm that a package is installed correctly by running:
If you have conflicting package versions or need to run multiple Python versions, you can run tasks in different environments using a few different operators: If many Airflow tasks share a set of alternate package and version requirements consider using Remote Execution.

​
Dags aren’t running correctly

If your Dags are either not running or running differently than you intended, consider checking the following common causes:
  • Dags need to be unpaused in order to run on their schedule. You can unpause a Dag by clicking the toggle on the left side of the Airflow UI or by using the Airflow CLI or Airflow REST API.

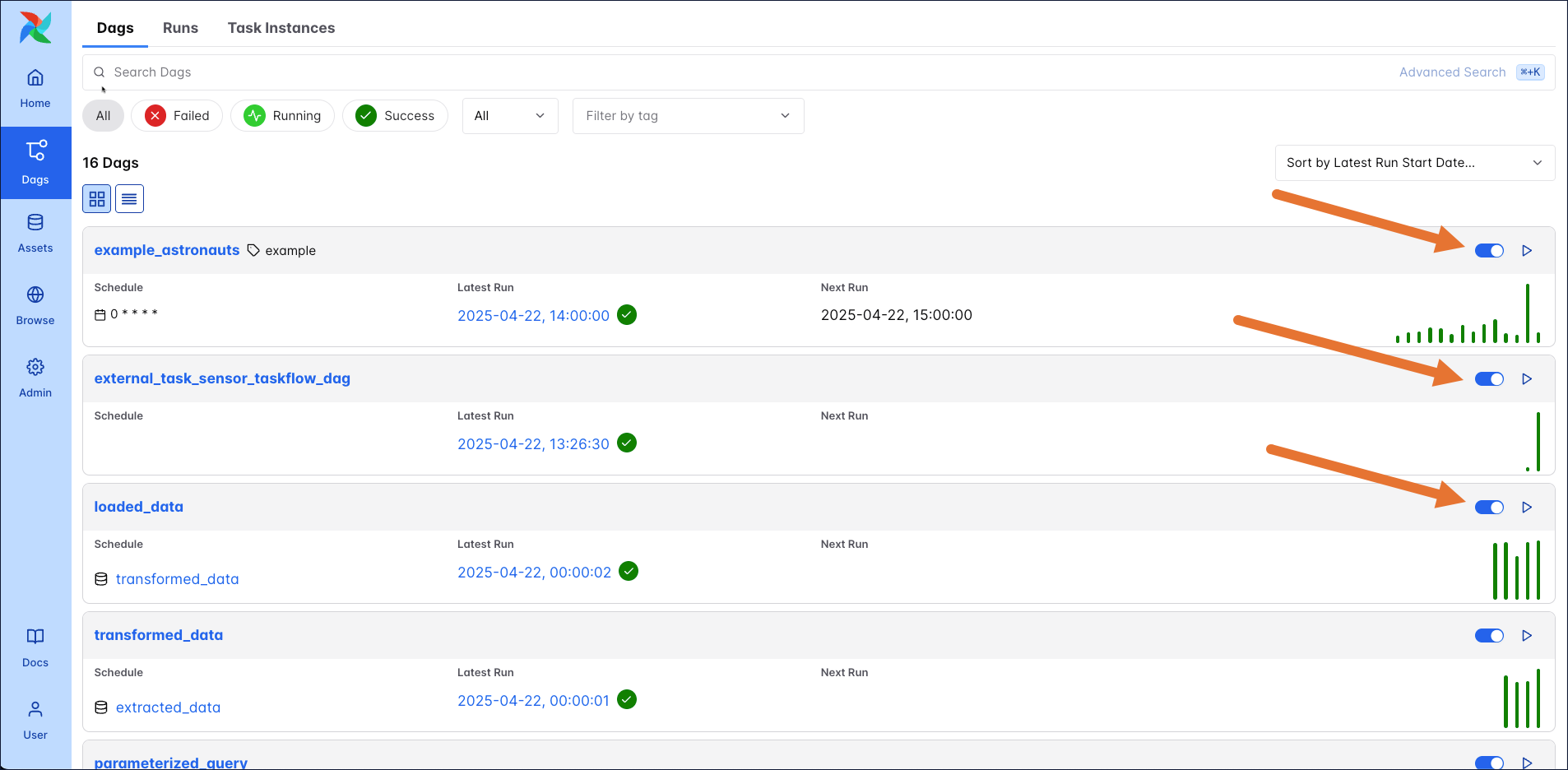

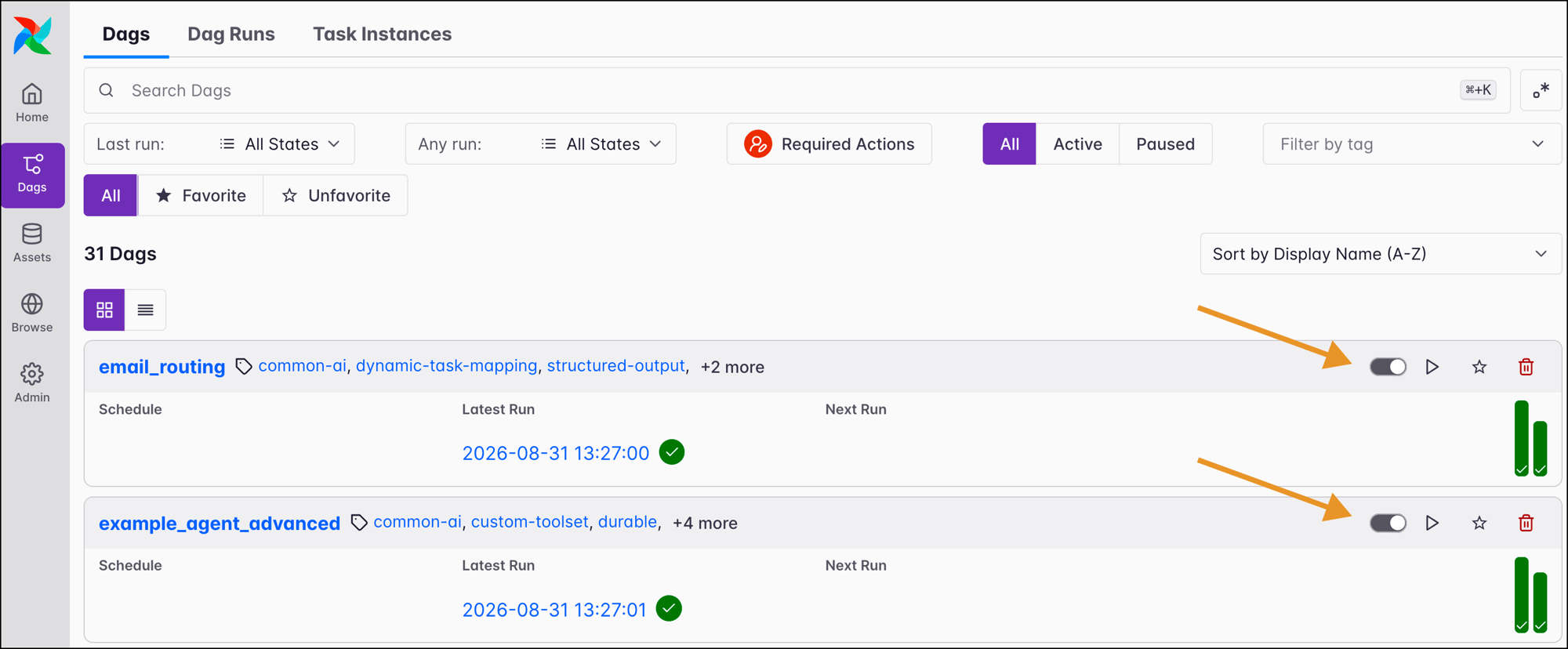

    Location of unpause toggle in the Airflow UI
    If you want all Dags unpaused by default, you can set AIRFLOW__CORE__DAGS_ARE_PAUSED_AT_CREATION to False in your Airflow config. The config can be overriden at the level of individual Dags using the Dag parameter is_paused_upon_creation.
  • Double check that each Dag has a unique dag_id. If two Dags with the same id are present in one Airflow instance, a AirflowDagDuplicatedIdException appears and there might be unexpected behavior if the Dag is triggered, for example, changes in which Dag is used for task execution every Dag parsing interval.

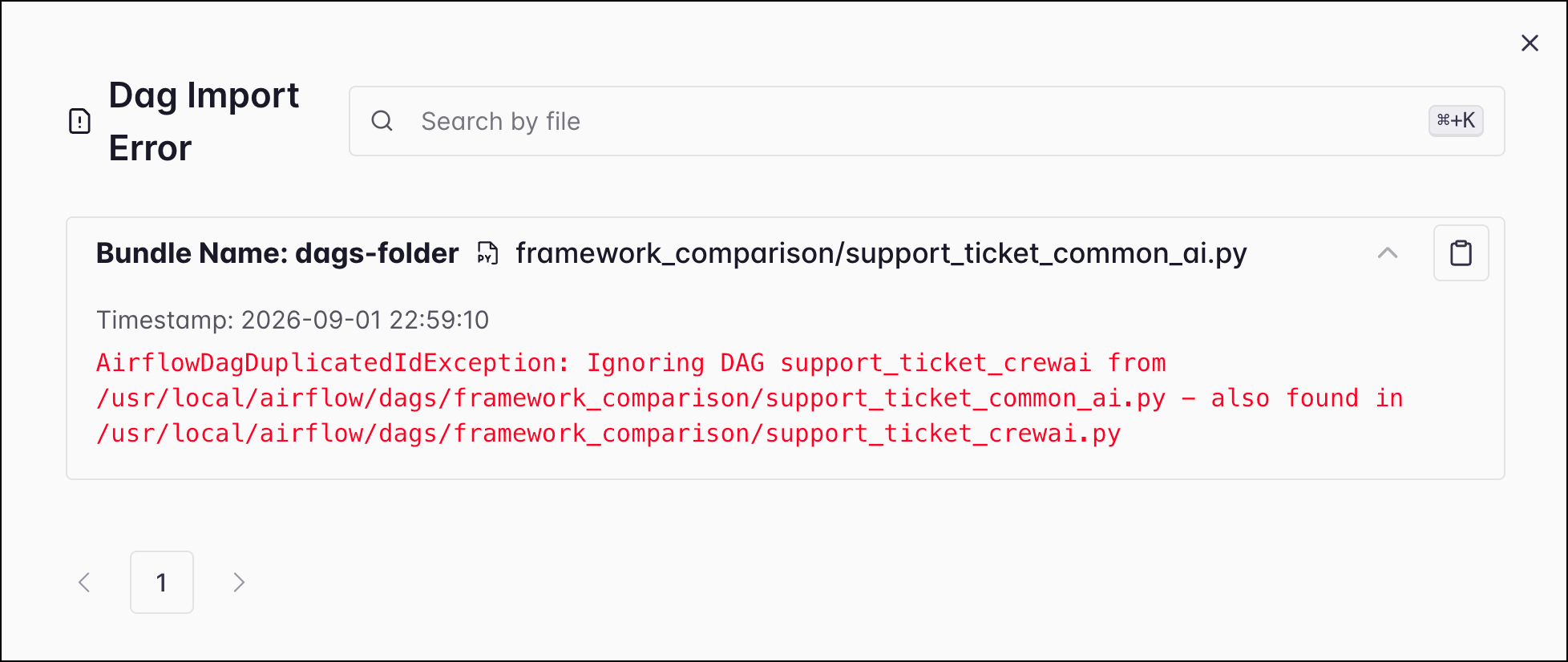

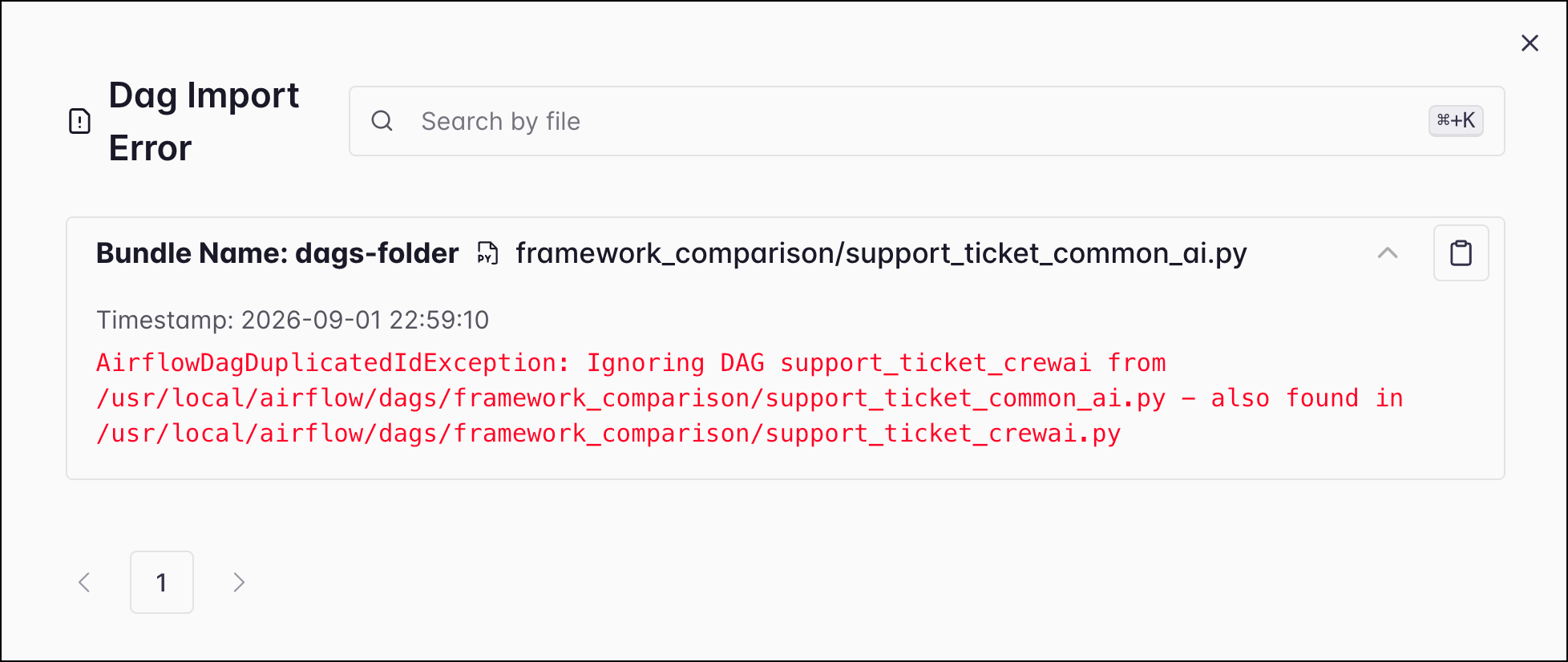

    Dag Import Error panel showing an AirflowDagDuplicatedIdException traceback
  • Make sure your Dag has a start_date in the past. A Dag with a start_date in the future will result in a successful Dag run with no task runs. Don’t use datetime.now() as a start_date.
  • Test the Dag using astro dev dags test <dag_id>. With the Airflow CLI, run airflow dags test <dag_id>.

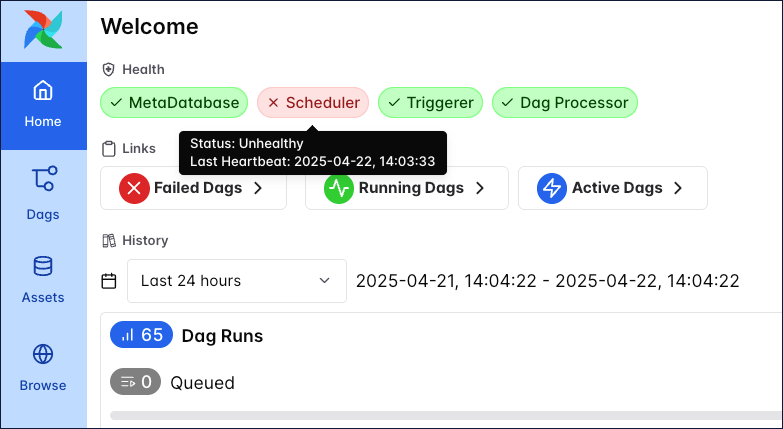

  • If no Dags are running, check the state of your scheduler using astro dev logs -s.
If your Dag is running, but not on the schedule you expected, review the Schedule Dags in Airflow guide. If you are using a custom timetable, ensure that the data interval for your Dag run doesn’t precede the Dag start date.

​
Common task issues

This section covers common issues related to individual tasks you might encounter. If your entire Dag isn’t working, see the Dags aren’t running correctly section above.
There were significant changes to the Airflow architecture between Airflow 2 and Airflow 3, greatly improving Airflow’s security posture and enabling new features such as remote execution. The most important impact of those changes for Dag authors is that directly accessing the metadata database from within Airflow tasks isn’t possible anymore.If you are encountering task failures after upgrading, see Practical guide: Upgrade from Apache Airflow 2 to Airflow 3 for more information on breaking changes, and consider Upgrading Airflow with Otto, Astronomer’s data engineering AI agent.

​
Tasks aren’t running correctly

It is possible for a Dag to start but its tasks to be stuck in various states or to not run in the desired order. If your tasks aren’t running as intended, try the following debugging methods:
  • Double check that your Dag’s start_date is in the past. A future start_date will result in a successful Dag run even though no tasks ran.
  • If your tasks stay in a scheduled or queued state, ensure your scheduler is running properly. If needed, restart the scheduler or increase scheduler resources in your Airflow infrastructure.
  • If your tasks have the depends_on_past parameter set to True, those newly added tasks won’t run until prior task runs have been successful.
  • When running many instances of a task or Dag, be mindful of scaling parameters and configurations. Airflow has default settings that limit the amount of concurrently running Dags and tasks. See Scaling Airflow to optimize performance and the Best practices for scaling Apache Airflow® webinar to learn more.
  • If you are using task decorators and your tasks aren’t showing up in the Graph and Grid, make sure you are calling the decorated task functions. See also Introduction to Airflow decorators.
  • Check your task dependencies and trigger rules. See Manage Dag and task dependencies in Airflow and Airflow trigger rules. Consider recreating your Dag structure with EmptyOperators to ensure that your dependencies are structured as expected.
  • The AIRFLOW__SCHEDULER__TASK_QUEUED_TIMEOUT config controls how long tasks can be in queued state before they are either retried or marked as failed. The default is 600 seconds.

​
Tasks are failing

Most task failure issues fall into one of 3 categories:
  • Issues with operator parameter inputs.
  • Issues within the operator.
  • Issues in an external system.
Failed tasks appear as red squares in the Grid view, where you can also directly access task logs.

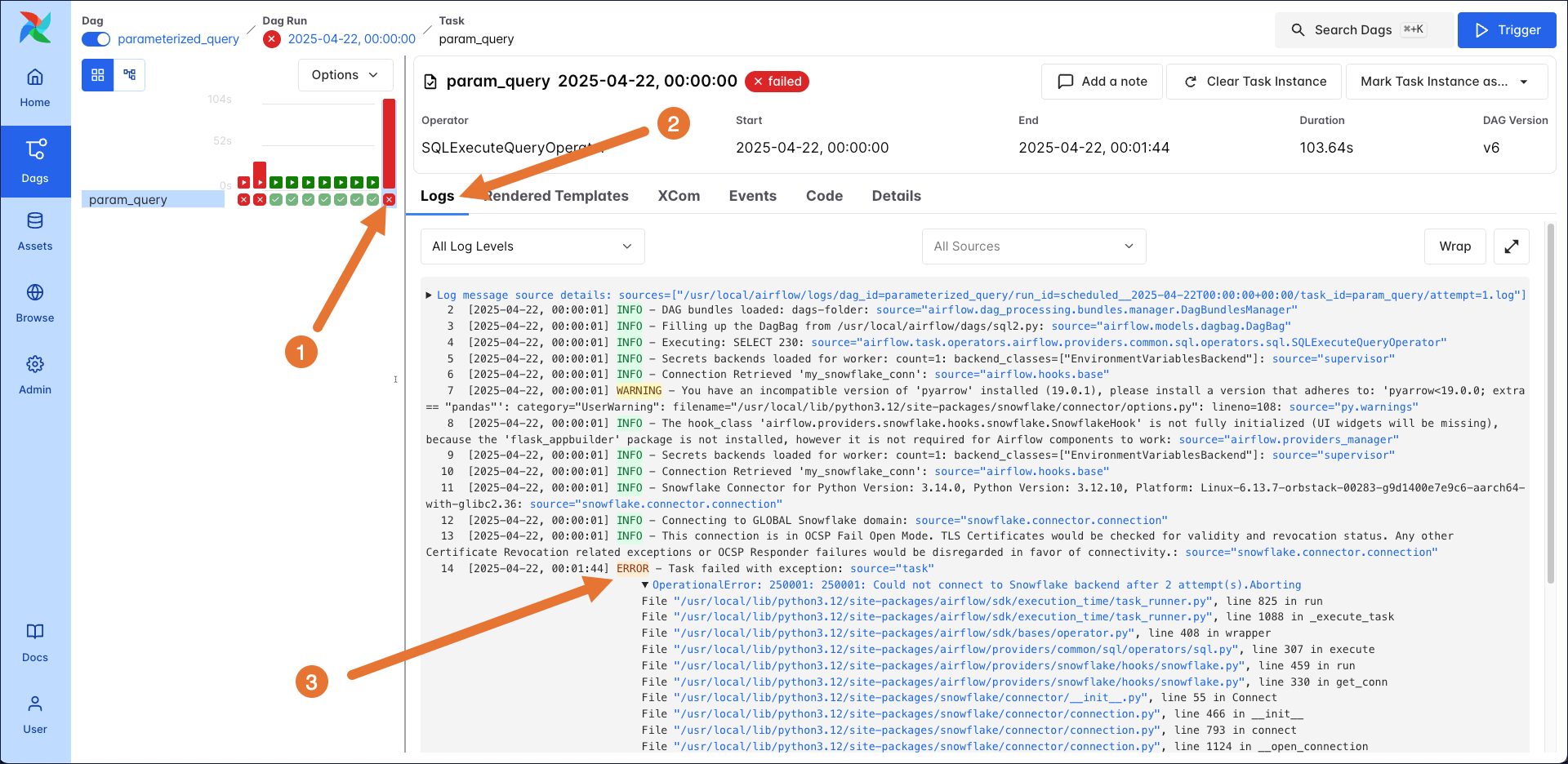

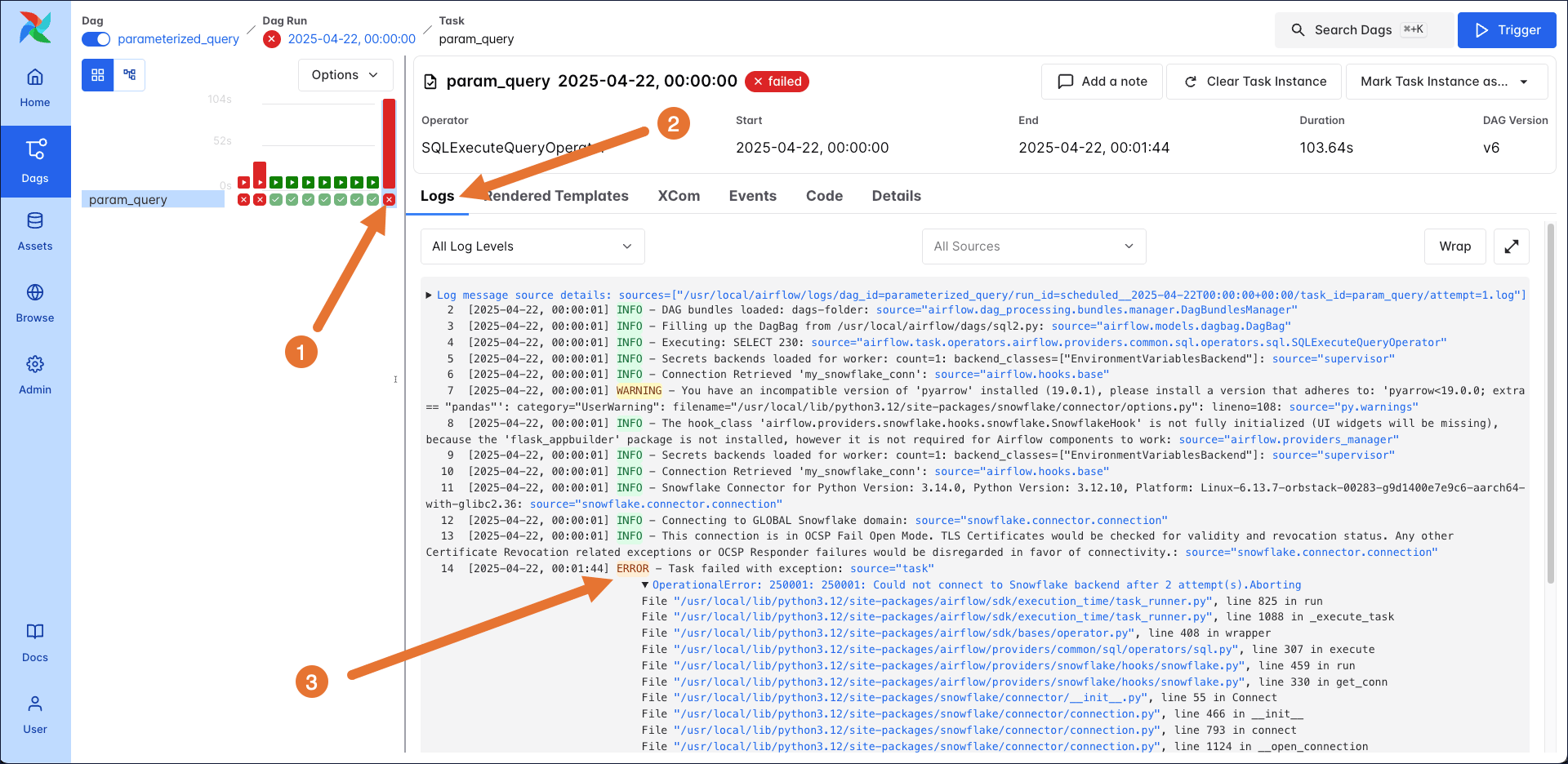

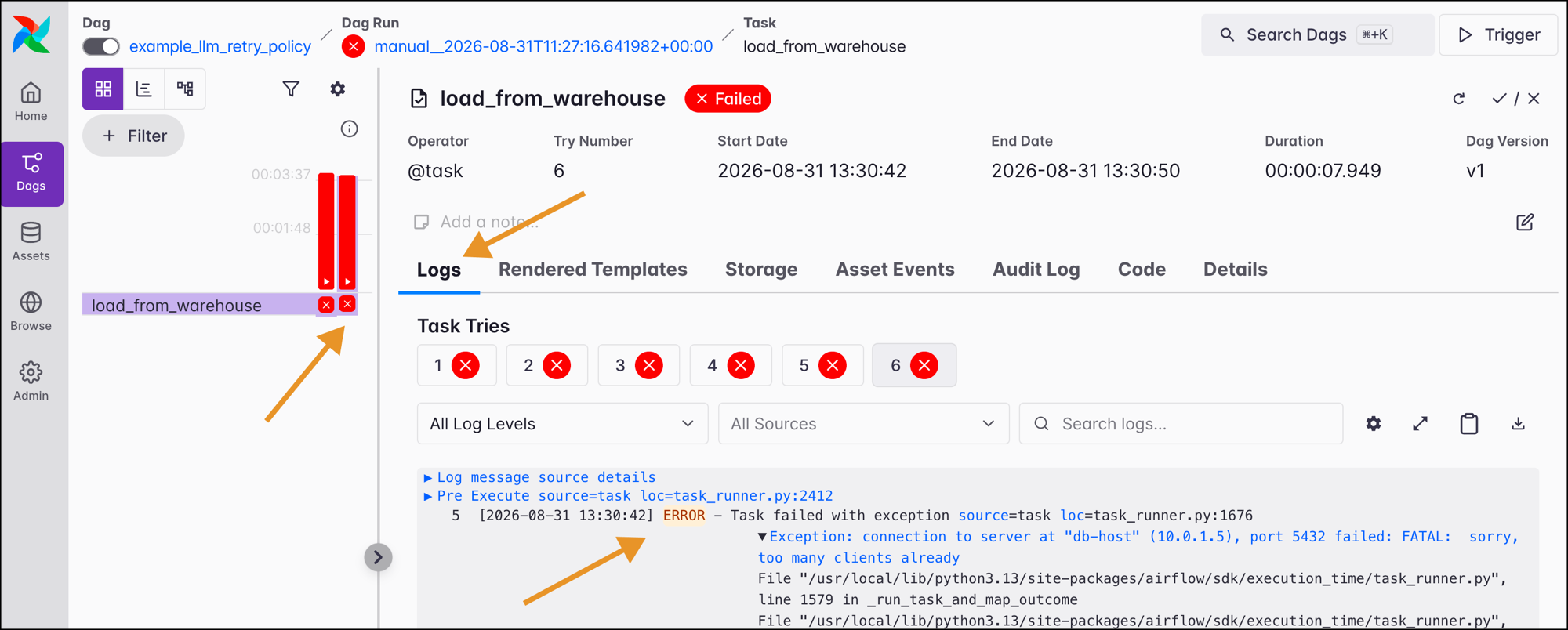

Grid view showing a failed task and its logs with the error that caused the failure
The task logs provide information about the error that caused the failure. To help identify and resolve task failures, you can set up error notifications. See Error Notifications in Airflow. Task failures in newly developed Dags with error messages such as Task exited with return code Negsignal.SIGKILL, OOM or containing a -9 error code are often caused by a lack of memory on your Airflow worker. Increase the RAM in the worker handling the task, for example by assigning it to a bigger worker queue.
After resolving your issue you may want to rerun your Dags or tasks, see Rerunning Dags.

​
Issues with dynamically mapped tasks

Dynamic task mapping is a powerful feature that allows you to dynamically adjust the number of tasks at runtime based on changing input parameters. It is also possible to dynamically map over task groups. Possible causes of issues when working with dynamically mapped tasks include:
  • You didn’t provide a keyword argument to the .expand() function.
  • When using .expand_kwargs(), you didn’t provide mapped parameters in the form of a List(Dict).
  • You tried to map over an empty list, which causes the mapped task to be skipped.
  • You exceeded the limit for how many mapped task instances you can create. This limit depends on the Airflow core config AIRFLOW__CORE__MAX_MAP_LENGTH and is 1024 by default. Exceeding the limit will fail the task upstream of your dynamically mapped task.
  • The number of mapped task instances of a specific task that can run in parallel across all runs of a given Dag depend on the task level parameter max_active_tis_per_dag.
  • Not all parameters are mappable. If a parameter doesn’t support mapping you will see an import error.
When creating complex patterns with dynamically mapped tasks, we recommend first creating your Dag structure using EmptyOperators or @task decorators. Once the structure works as intended, you can start adding your tasks. Refer to the Create dynamic Airflow tasks guide for code examples.
It is very common that the output of an upstream operator is in a slightly different format than what you need to map over. Use .map() to transform elements in a list using a Python function.

​
Missing logs

When you check your task logs to debug a failure, you may not see any logs. On the log page in the Airflow UI, you may see a spinning wheel, or you may just see a blank file. Generally, logs fail to appear when a process dies in your scheduler or worker and communication is lost. The following are some debugging steps you can try:
  • Try rerunning the task by clearing the task instance to see if the logs appear during the rerun.
  • Increase the [AIRFLOW__API__LOG_FETCH_TIMEOUT_SEC] config to greater than the 5 second default. This config controls how long the API server waits for the initial handshake when fetching logs from the workers, and having extra time here can sometimes resolve issues.
  • Increase the resources available to your workers (if using the Astro or Celery executor) or scheduler (if using the local executor).
  • If you’re using the Kubernetes executor and a task fails very quickly (in less than 15 seconds), the pod running the task spins down before the API server has had a chance to collect the logs from the pod. If possible, try building in some wait time to your task depending on which operator you’re using. If that isn’t possible, try to diagnose what could be causing a near-immediate failure in your task. This is often related to either lack of resources or an error in the task configuration.
  • Increase the CPU or memory on the worker handling the task.
  • Ensure that your logs are retained until you need to access them. If you are an Astronomer customer see our documentation on how to View logs.
  • Check your scheduler and API server logs for any errors that might indicate why your task logs aren’t appearing.
  • If you are writing to local storage on your worker, it is possible to exceed the disk space of a worker, which cases the worker pod to be evicted with no logs visible. This can be resolved by increasing the ephemeral storage space available in your worker queue settings.

​
Troubleshooting connections

Typically, Airflow connections are needed to allow Airflow to communicate with external systems. Most hooks and operators have a conn_id or similar parameter to which you can provide a connection ID string. Because of this, improperly defined connections are one of the most common issues Airflow users have to debug. While the specific error associated with a poorly defined connection can vary widely, you will typically see a message with “connection” in your task logs. If you haven’t defined a connection, you’ll see a message such as 'connection_abc' is not defined. The following are some debugging steps you can try:
  • Review Manage connections in Apache Airflow to learn how connections work.
  • Make sure you have the necessary provider packages installed to be able to use a specific connection type.
  • Change the <external tool>_default connection to use your connection details or define a new connection with a different name and pass the new name to the hook or operator.
  • Define connections using Airflow environment variables instead of adding them in the Airflow UI. Make sure you’re not defining the same connection in multiple places. If you do, the environment variable takes precedence.
  • Test if your credentials work when used in a direct API call to the external tool.
To find information about what parameters are required for a specific connection:
  • Read the provider documentation in the Airflow Registry to access the Apache Airflow documentation for the provider. Most commonly used providers will have documentation on each of their associated connection types. For example, you can find information on how to set up different connections to Azure in the Azure provider docs.
  • Check the documentation of the external tool you are connecting to and see if it offers guidance on how to authenticate.
  • View the source code of the hook that is being used by your operator.

​
I need more help

The information provided here should help you resolve the most common issues. If your issue wasn’t covered in this guide, try the following resources:
  • Use Otto, Astronomer’s data engineering AI agent to help you debug.
  • If you are an Astronomer customer you can contact our customer support.
  • Join the Apache Airflow Slack and open a thread in #newbie-questions or #troubleshooting. The Airflow slack is the best place to get answers to more complex Airflow specific questions.
  • If you found a bug in Airflow or one of its core providers, open an issue in the Airflow GitHub repository. For bugs in Astronomer open source tools open an issue in the relevant Astronomer repository.
  • Post your question to Stack Overflow, tagged with airflow and other relevant tools you are using. Using Stack Overflow is ideal when you are unsure which tool is causing the error, since experts for different tools will be able to see your question.
To get more specific answers to your question, include the following information in your question or issue:
  • Your method for running Airflow (Astro CLI, standalone, Docker, managed services).
  • Your Airflow version and the version of relevant providers.
  • The full error with the error trace if applicable.
  • The full code of the Dag causing the error if applicable.
  • What you are trying to accomplish in as much detail as possible.
  • What you changed in your environment when the problem started.
