Deploy Airflow with the Airflow Operator

Astro Private Cloud (APC) manages Airflow Deployments with Helm by default. Operator mode is an alternative that manages a Deployment through the Airflow Kubernetes Operator — a kubebuilder-based controller that reconciles Airflow Deployments from a custom resource definition (CRD) — instead of a Helm release. You choose the mode for each Deployment. Helm remains the default and is fully supported.

Astro Private Cloud 2.1This feature was introduced in Astro Private Cloud 2.1. To access this feature, upgrade your Astro Private Cloud installation to 2.1 or later.

Airflow operator support is under active development for Astro Private Cloud. Several Helm-mode features aren’t available in operator mode yet. See Feature support.

If your cluster already runs the Astro Runtime Operator, you can bring its existing Airflow Deployments under APC management with Adopt Astro Runtime Operator managed Deployments, and hand the operator itself over with Move the operator under APC.

Concepts

Deployment mode: each APC Deployment is either Helm (a Helm release, the default) or operator (an Airflow CRD reconciled by the operator).
Reconciliation: the control plane builds the Airflow custom resource (CR) spec from the Deployment configuration, and the data plane applies the CR and monitors the operator’s reconciliation, rather than managing a Helm release.
Mixed mode: a single APC installation can run Helm and operator Deployments side by side, and you can enable operator support for each data plane.
Cluster-scoped resources: the operator requires cluster-level CRDs, mutating and validating webhooks, and cert-manager. Review these with your security team before you enable operator support. See Security and governance.

Prerequisites

An APC 2.1 or later installation running in split mode or unified mode.
Permission to update the Helm values for the data plane, or for the unified installation.
Cluster-level permission to install CRDs and to configure mutating and validating webhooks.
Either cert-manager in the cluster, or a serving certificate you generate yourself. See Provide the webhook TLS certificate.

Enable operator support

Operator support is off by default, and it installs with the data plane, which hosts operator Deployments. In split mode, enable it in the Helm configuration for the data plane. In unified mode, where the control plane and data plane run in the same cluster, enable it in that installation’s Helm configuration:

global:
  airflowOperator:
    enabled: true

Enabling operator support installs the operator CRDs, configures the mutating and validating webhooks, adds the Prometheus label filters for operator Deployments, and grants the data plane the role-based access control (RBAC) it needs for airflow.apache.org CRD resources.

Provide the webhook TLS certificate

The Kubernetes API server calls the operator’s mutating and validating webhooks over TLS, so the webhooks need a serving certificate and the CA bundle that signed it. Choose one of the following methods based on whether cert-manager is available in your cluster.

Configure exactly one of these methods. The operator sub-chart uses cert-manager by default; if you disable cert-manager without providing your own certificate, the chart fails to render with an error instead of installing a broken webhook.

Use cert-manager

cert-manager is enabled for the operator sub-chart by default. If cert-manager is available in your cluster, keep it enabled: it generates the serving certificate with the correct DNS names and injects the CA bundle into the webhook configurations automatically:

airflow-operator:
  certManager:
    enabled: true

This is the recommended method. It requires no manual certificate management, and cert-manager renews the certificate before it expires.

Provide your own certificate

If cert-manager isn’t available, generate a serving certificate yourself and pass it to the operator sub-chart. The webhook Service is named <release-name>-airflow-operator-webhook-service.

Set the Service DNS names

Set the DNS names as shell variables. The certificate must be valid for both, or the API server rejects the webhook connection:

export NAMESPACE=<apc-namespace>
export SERVICE=<release-name>-airflow-operator-webhook-service
export DNS1="${SERVICE}.${NAMESPACE}.svc"
export DNS2="${SERVICE}.${NAMESPACE}.svc.cluster.local"

Generate the CA and serving certificate

Generate a CA and a serving certificate whose Subject Alternative Names (SANs) cover both DNS names:

# Generate a CA key and self-signed CA certificate. This becomes the caBundle.
openssl genrsa -out ca.key 2048
openssl req -x509 -new -nodes -key ca.key -sha256 -days 3650 \
  -subj "/CN=airflow-operator-webhook-ca" -out ca.crt

# Generate the serving key and certificate signing request.
openssl genrsa -out tls.key 2048
openssl req -new -key tls.key -subj "/CN=${DNS1}" -out tls.csr

# Sign the request with the CA, embedding the required SANs.
cat > san.ext <<EOF
subjectAltName = DNS:${DNS1}, DNS:${DNS2}
extendedKeyUsage = serverAuth
EOF

openssl x509 -req -in tls.csr -CA ca.crt -CAkey ca.key -CAcreateserial \
  -out tls.crt -days 3650 -sha256 -extfile san.ext

Don’t reuse an ingress or general-purpose certificate. A certificate that lacks the .svc SANs fails the webhook TLS handshake even when the CA bundle is correct.

Create the TLS secret

Create a kubernetes.io/tls secret in the release namespace from the serving certificate and key:

kubectl -n "${NAMESPACE}" create secret tls airflow-operator-webhook-tls \
  --cert=tls.crt --key=tls.key

Configure the operator sub-chart

Point the operator sub-chart at the secret and provide the CA bundle. Set certManager.enabled to false, webhooks.useCustomTlsCerts to true, webhooks.customCertsSecretName to the secret name, and webhooks.caBundle to the raw contents of ca.crt:

airflow-operator:
  certManager:
    enabled: false
  webhooks:
    useCustomTlsCerts: true
    customCertsSecretName: airflow-operator-webhook-tls
    caBundle: |
      -----BEGIN CERTIFICATE-----
      ...
      -----END CERTIFICATE-----

Provide caBundle as raw PEM text, not base64. When webhooks.useCustomTlsCerts is true, both webhooks.customCertsSecretName and webhooks.caBundle are required — the chart fails to render if either is missing.

Certificates you provide yourself don’t renew automatically. Before tls.crt expires, regenerate it, update the secret, and redeploy. If the CA changes, update caBundle as well.

Create an operator Deployment

After you enable operator support, a Deployment Mode selector appears when you create a Deployment. To create an operator-managed Deployment, set Deployment Mode to Operator, then complete the rest of the Deployment configuration as usual. Helm is the default, and the selector doesn’t appear when operator support is off.

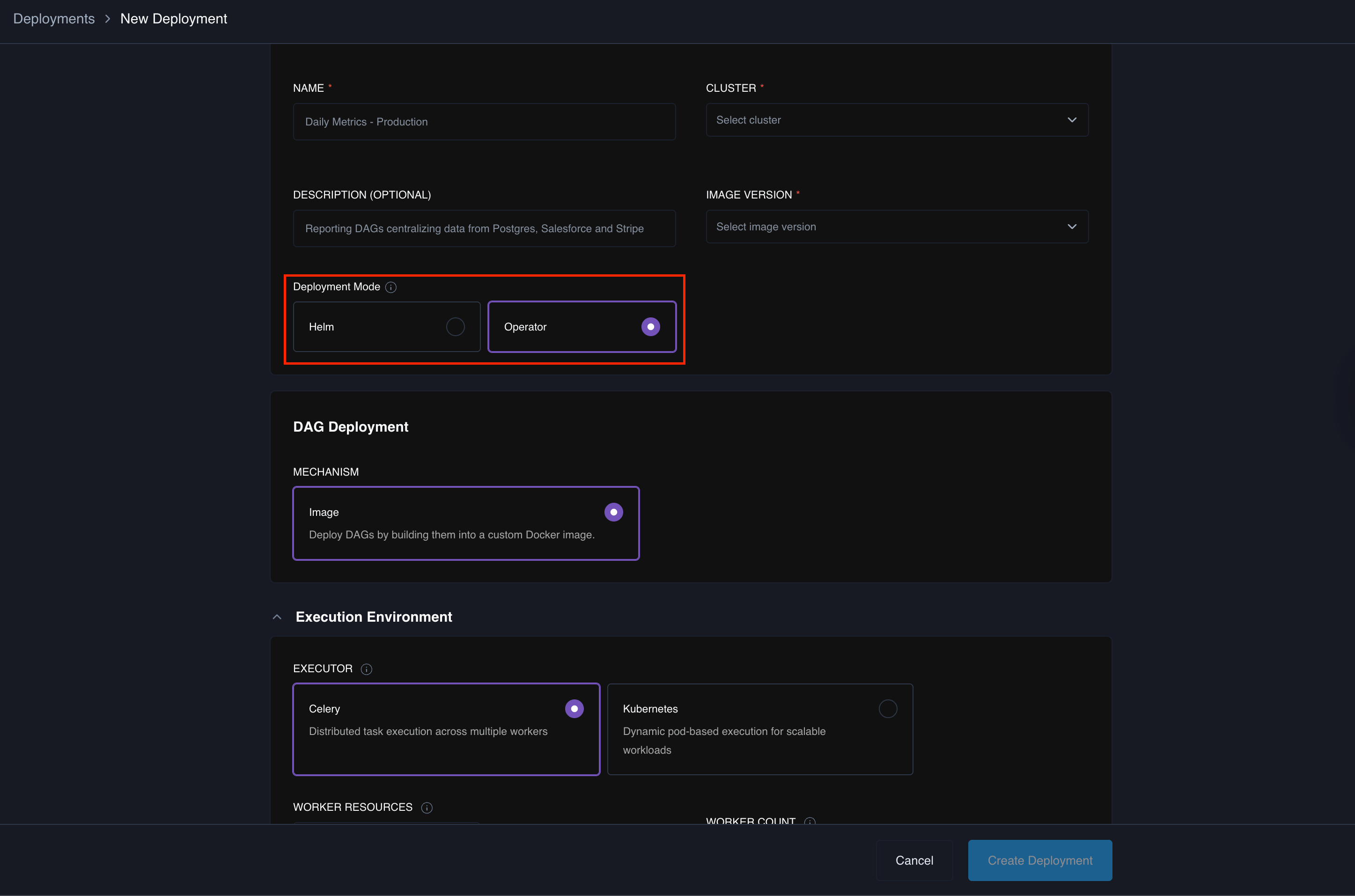

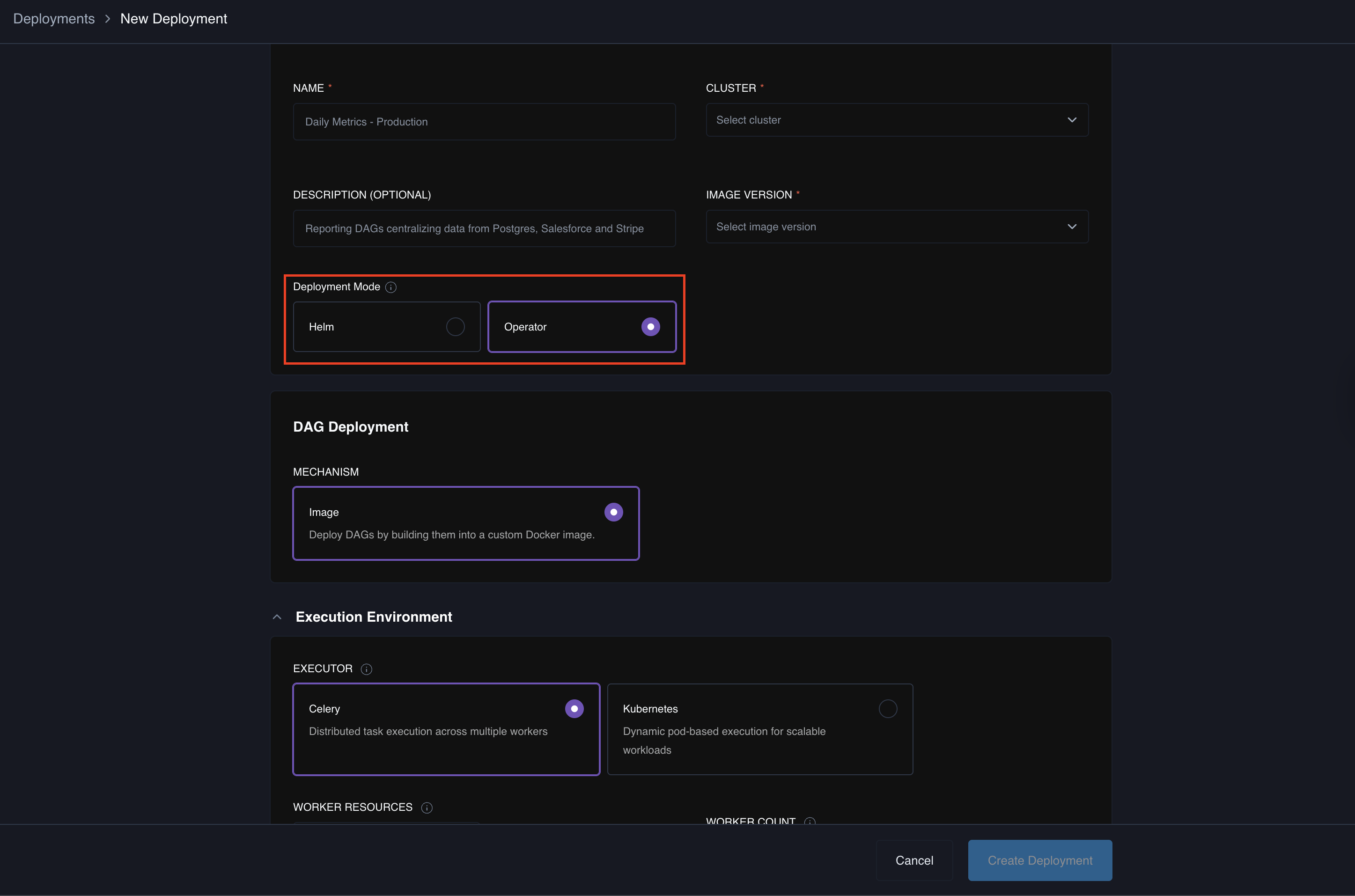

The New Deployment page with the Deployment Mode selector showing Helm and Operator options, with Operator selected.

Feature support

Operator mode reaches most Helm capabilities, but not all. Use Helm mode for a Deployment that needs a feature in the second of the following lists. Available in operator mode in APC 2.1:

Celery executor and Kubernetes executor
Airflow 2 and Airflow 3
PostgreSQL-backed Deployments
Private registry
Auth sidecar and bring-your-own ingress
Network policies for Airflow components and platform-level network policy
Custom resource configuration (CPU and memory)
Manual release name
DaemonSet logging
In-cluster and external Elasticsearch logging
Airflow rollback
OpenShift support

Not yet available in operator mode — use Helm mode:

Dag-only deploy, Network File System (NFS) volume and git-sync Dag Deployment
Namespace pools
Sidecar logging
MySQL-backed Deployments
Resource-quota enforcement
Enabling or disabling the triggerer independently
Celery Flower UI
Disaster-recovery (DR) failover and control-plane high availability (HA)

Security and governance

Operator mode installs cluster-scoped resources:

The Airflow CRDs
A mutating and validating webhook
cert-manager integration, when you use cert-manager to issue the webhook certificate

Because these are cluster-level, review them with your security team before you enable operator support. If your change-control process requires it, you can manage the CRDs out-of-band — for example, install them separately as a cluster admin or through GitOps — so the platform chart doesn’t create them. Set crd.create to false on the operator sub-chart:

airflow-operator:
  crd:
    create: false

The default is true, which lets the chart create the CRDs. When you set it to false, install the operator CRDs yourself before you create any operator Deployment.

The operator CRDs carry a helm.sh/resource-policy: keep annotation, so Helm never deletes them, even when you set crd.create to false on an existing installation. This prevents an upgrade from removing the CRDs, which would delete every operator Deployment. Remove the CRDs manually only after you delete all operator Deployments.

Known limitations

Several Helm-mode features aren’t available in operator mode. See Feature support. Helm remains the default and the fuller-featured mode.
Operator mode isn’t a migration path between modes. You set the mode when you create a Deployment, and you can’t convert an existing Deployment from Helm to operator or from operator to Helm. To change modes, create a new Deployment in the target mode.
