Best practices for rightsizing Airflow resources on Astro

Astro gives you options to customize your Deployment settings, enabling you to choose the right amount of resources for your processing needs. This means you can customize the size of your Airflow components so that your processes can sufficiently scale for heavier workloads, without you needing to reserve resources that you don't need.

This guide shares an example process for how to use Deployment Metrics in Astro to analyze your Deployment's performance and determine whether or not to adjust your allocated resources. The process covers the following steps:

  • Define thresholds for the minimum and maximum resource use that you feel are an optimal performance range.
  • Examine your historical DAG and Deployment performance data to see if your Deployment operates within your optimal performance range.
  • Determine any required changes to your resource allocations for your workers and scheduler.
  • Make those adjustments in your Deployment settings.

You can periodically repeat this process to make sure that your Airflow resources are optimized for your workloads as your needs change.

tip

If you want to analyze your Deployment metrics in greater detail, you can use the Universal Metrics Exporter to configure a metrics export at the Deployment or Workspace level.

Feature overview​

Prerequisites​

This guide assumes that you have:

Step 1: Determine performance thresholds​

Define two performance thresholds:

  • Maximum threshold Choose a capacity percentage, between 0% and 100%, that you want to consider the upper limit for ideal performance, but still leaves some additional capacity for pipeline growth. This example uses 75% for the maximum threshold.

  • Minimum threshold Choose a capacity percentage, between 0% and 100%, that you want to consider the lower limit for ideal performance, where you don't think that unconsumed resources are wasted. This example uses 50% for the minimum threshold.

Step 2: Retrieve your Deployment metrics​

In the Astro UI, open the Deployments page and choose the Deployment you want to rightsize. Navigate to the Analytics tab and choose Last 7 days for the timeframe.

Step 3: Adjust your scheduler resource settings​

For Astro Hosted Deployments that are Medium, Large, or Extra Large, your scheduler has a separate DAG processor component, which appears as a separate line in each line graph of your Deployment metrics. In these Deployments, scheduler and DAG processor resources should be considered separately. For Small deployments, which combine the scheduler and DAG processor, use the following Scheduler Resources steps to right-size your Deployment size.

Scheduler Resources​

The Deployment metrics show the CPU and Memory use per Pod as percentages, which you can compare to the Minimum Threshold and Maximum Threshold that you defined in Step 1. For scheduler resources, follow the same process:

  • If CPU or Memory is between the Minimum Threshold and the Maximum Threshold, no changes are needed.
  • If CPU or Memory is greater than the Maximum Threshold, then increase those resources.
  • If CPU or Memory is less than the Minimum Threshold, then decrease those resources.

In the following example, you can see the resource metrics for a small scheduler and DAG processor, where both run in one single process and the metrics show a single line graph. If you had a minimum threshold set for 50% and maximum for 75%, the following example that shows around 5% CPU use and 14% for Memory use indicates that you can allocate more processes to this Deployment, or decrease the memory and CPU for its scheduler.

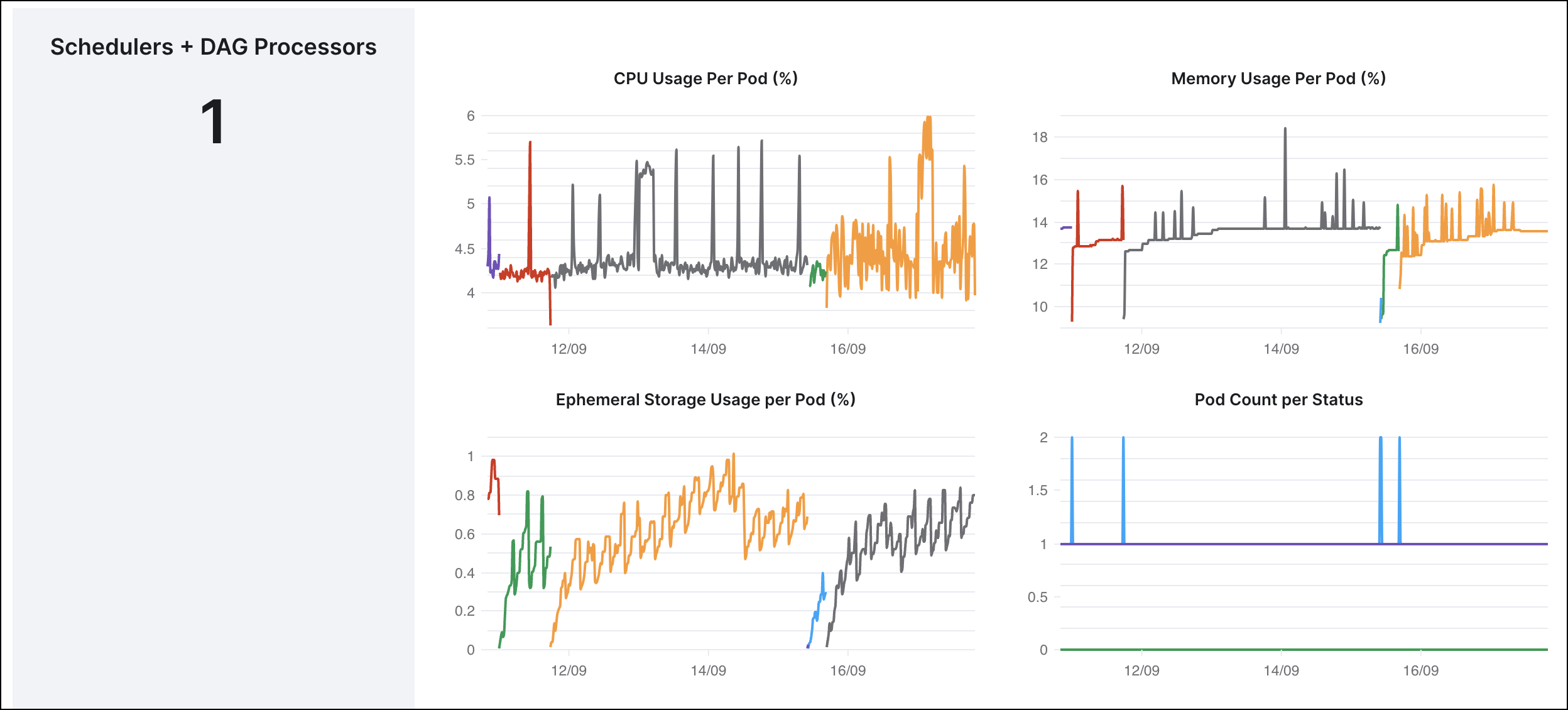

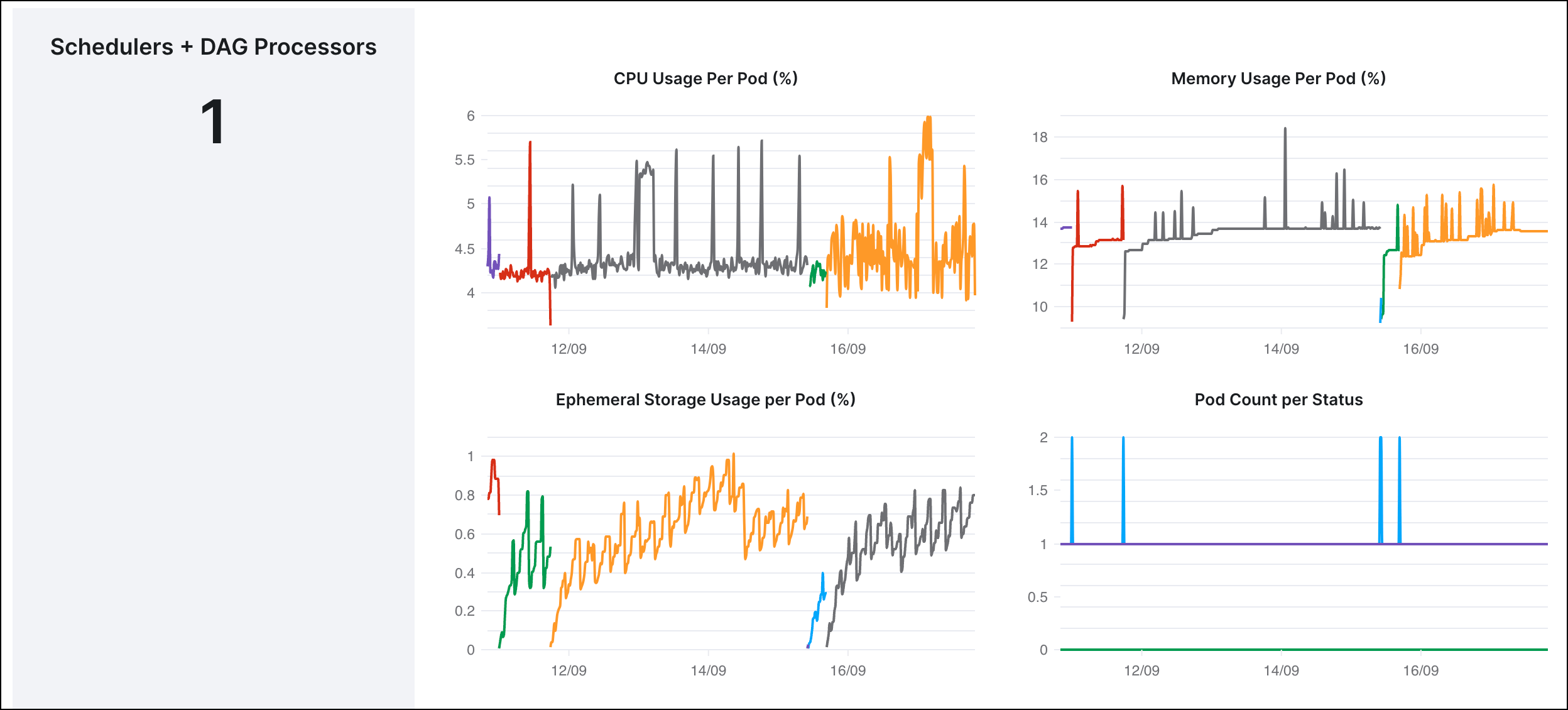

Screenshot of Schedulers CPU and Memory use metrics, showing a line graph of a consistent 3-6% for the CPU and around 9-19% use for memory over the previous 7 days.

DAG processor Resources and Performance​

info

For Medium, Large, and Extra Large Deployments only

For Medium, Large, and Extra Large Deployments, the DAG processor can run close to, or at, maximum vCPU utilization without competing for resources with the scheduler, since the two components run separately. A DAG processor running at 100% vCPU utilization results in slower DAG file processing times without causing scheduler unavailability. For these Deployment sizes, high DAG processor vCPU utilization is a good sign because this means your DAG processor is running near full capacity and is processing DAGs efficiently.

You can rightsize DAG processor memory following the same process as other resources:

  • If CPU or Memory is between the Minimum Threshold and the Maximum Threshold, no changes are needed.
  • If CPU or Memory is greater than the Maximum Threshold, then increase those resources.
  • If CPU or Memory is less than the Minimum Threshold, then decrease those resources.

To rightsize DAG processor vCPU, consider your current DAG file processing speed. In large deployments, Large and Extra Large size, the limitation for DAG file processing time tends to be the number of parsing processes, which can be adjusted through an Airflow environment variable, parsing_processes. You can create and store an Airflow environment variable directly in the Astro UI.

If DAG file processing is slow and you want to increase performance, use the following steps:

  • If DAG processor vCPU utilization is low (< 50%), increase DAG processor vCPU utilization by increasing the number of parsing processes. You should see DAG processor vCPU utilization increase.
  • If DAG processor vCPU utilization is high (> 80%), or the number of parsing processes is higher than 12 parsing processes, increase Deployment size.

In the following example, you can see the resource metrics for a Medium size scheduler that includes a DAG processor. If you had a minimum threshold set for 50% and maximum for 75%, the following example that shows consistent 4-8% for the DAG processor vCPU, consistent 2-6% use for scheduler CPU use, and 7-15% memory use by both the scheduler and DAG processor indicates that you can allocate more processes to this Deployment, or scale down the size of the size of the resources.

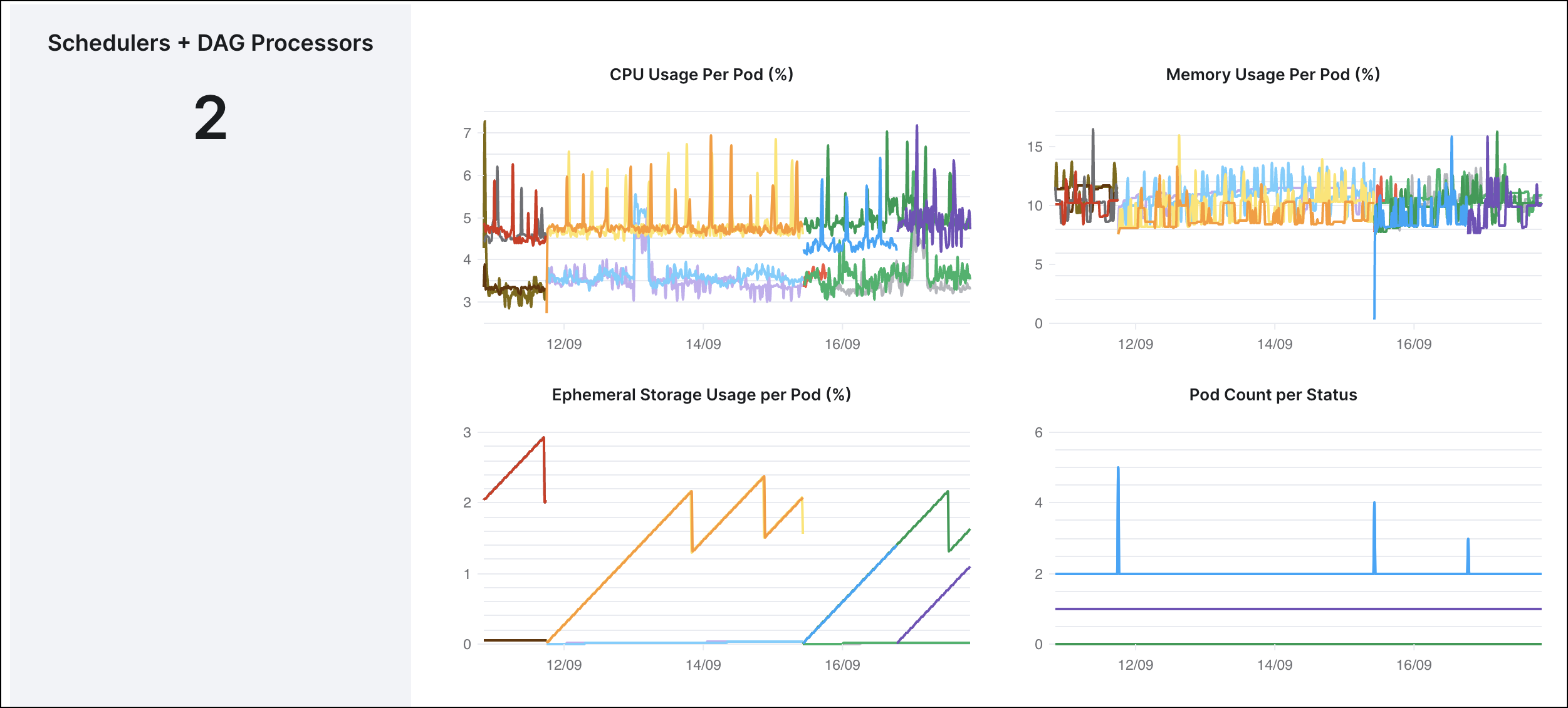

Screenshot of Schedulers CPU and Memory use metrics, showing a line graph of a consistent 4-8% for the DAG processor vCPU, consistent 2-6% use for scheduler CPU use, and 7-15% memory use by both the scheduler and DAG processor over the previous 7 days.

Learn more about adjusting parsing_processes and how to see the number of default parsing processes across each Deployment size in Scaling Airflow.

See Scheduler resources for more details about configuring your scheduler.

Step 4: Adjust your executor resource settings​

Go to the Workers section of your Deployment analytics to view the CPU and Memory use for your workers. This shows the CPU and Memory use per worker Pod as percentages, which you can compare to the Minimum threshold and Maximum threshold you defined in Step 1.

tip

Enable Dynamic Y-Axis scaling to autoscale the graphs to best fit the data reported for each metric.

  • If CPU or Memory is between the Minimum Threshold and the Maximum Threshold, no changes are needed.
  • If CPU or Memory is greater than the Maximum Threshold, then increase those resources.
  • If CPU or Memory is less than the Minimum Threshold, then decrease those resources.

Using the following example, with the thresholds defined as 50% for the minimum and 75% for the maximum, you would reduce the available CPU for your workers because CPU use over time remained around 25% to 30%. Because the metrics show resource use to remain approximately 50%, which is within the optimal performance range but consistently on the lower end of the scale, you could choose to reduce the resources you use. Depending on whether you use the CeleryExecutor or Kubernetes executor, you adjust your resources in different ways.

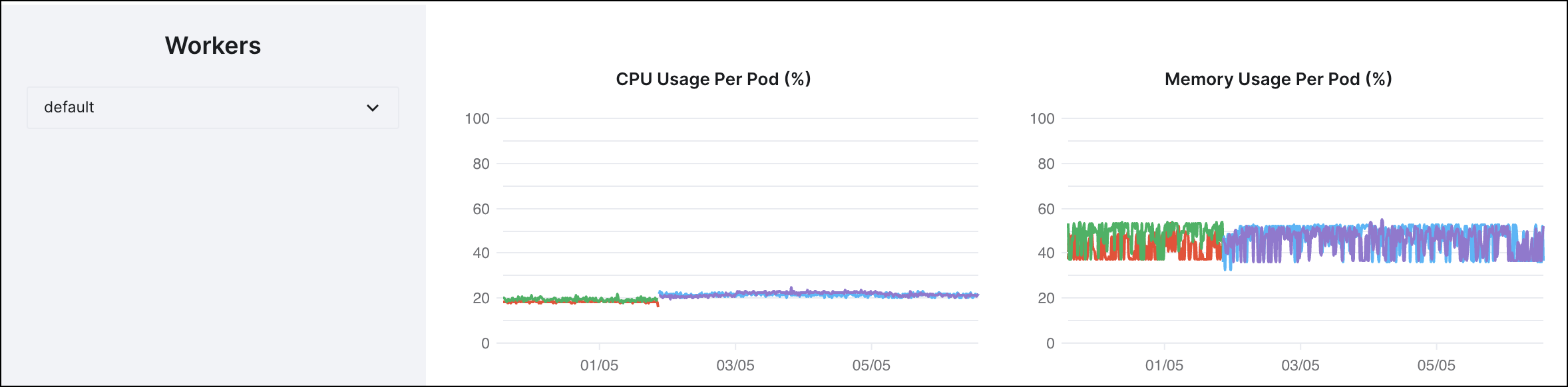

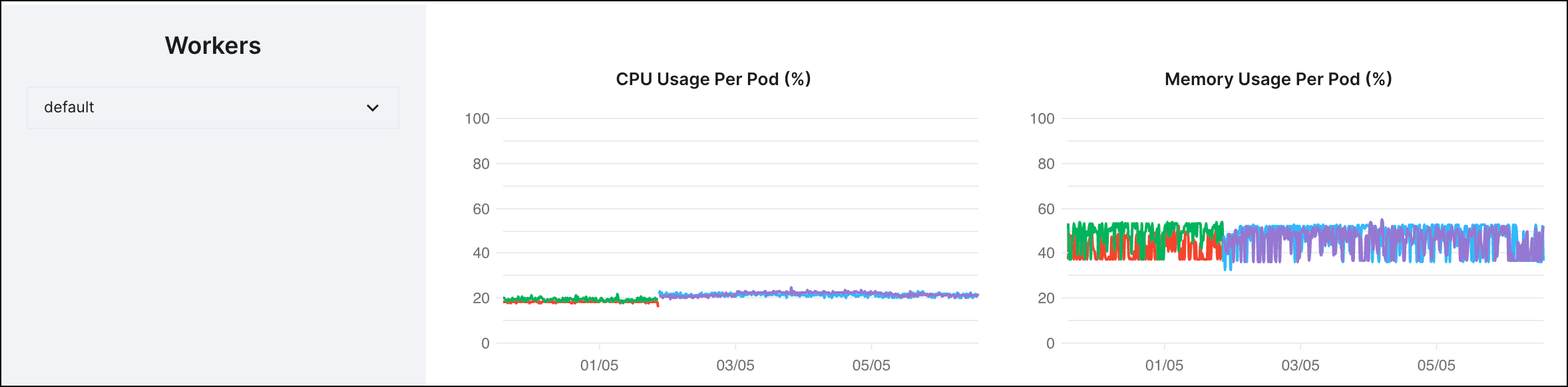

Screenshot of Workers CPU and Memory use metrics, showing a line graph of a consistent 30% use for the CPU and around 50% use for memory over the previous 7 days.

Changing Celery Executor resources​

If you use the Celery Executor, you cannot directly configure the CPU or memory available to your workers. Instead, you can configure the worker types, such as A5 or A10, which have a fixed amount of CPU and memory. See more information about Configuring worker queues to select a different resource size.

Step 5: (Optional - Celery only) Examine Pod count​

If you have minimum and maximum Celery pod counts configured for your Deployment, you can compare the Pod count per status to your CPU use. This diagram shows you how many pods your Deployment uses.

The following example shows the Pods used by a Deployment that can autoscale to a maximum of ten worker Pods, and a minimum of zero Pods. Because the maximum number of Pods used is only five Pods, you can see that there are an additional five Pods available, if needed.

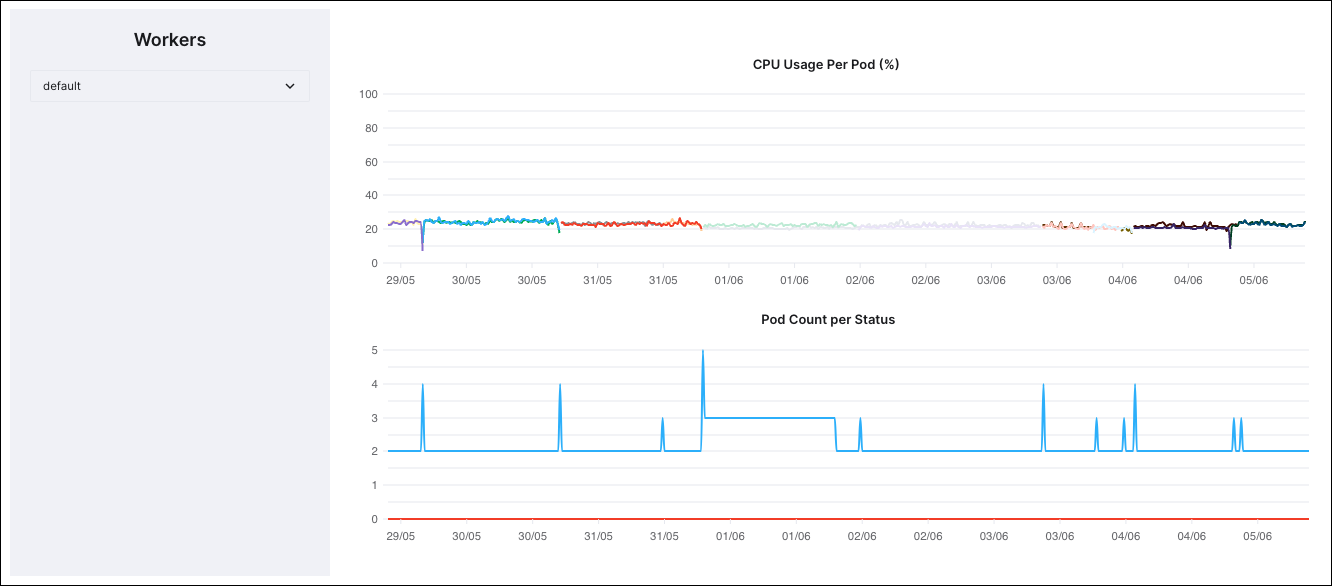

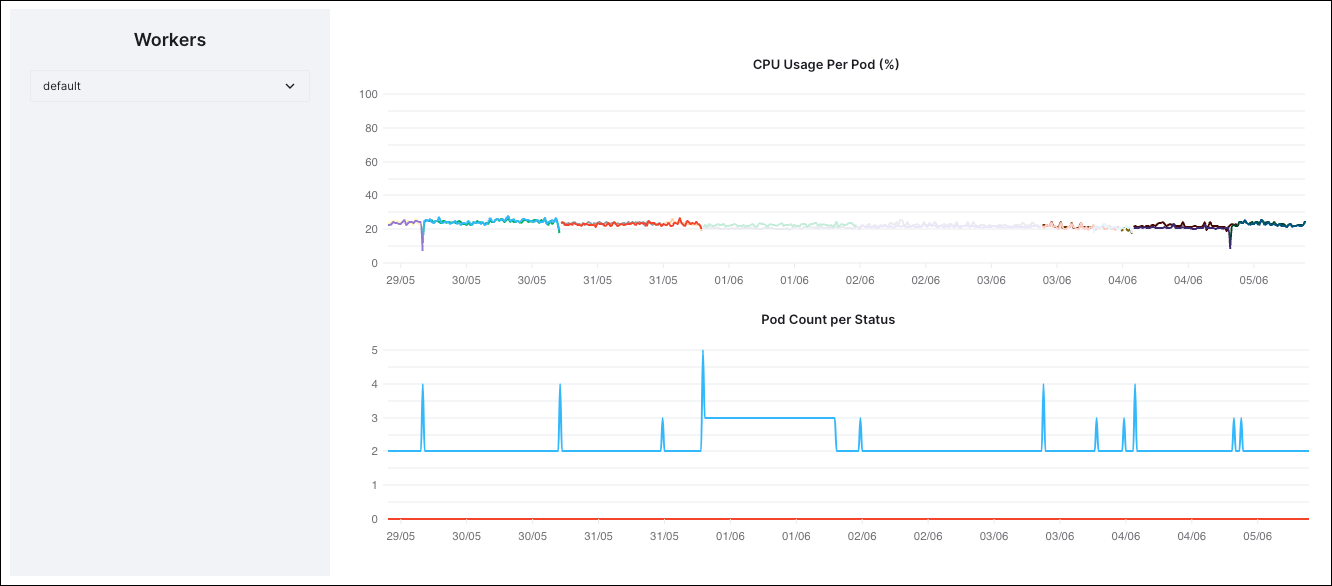

Screenshot of Pod count metrics, showing a line graph of the number of Pods used by the Deployment over the previous seven days. The maximum number of Pods used was 5, rarely, but most consistently the Deployment used 2.
