Manage user permissions on Astronomer Software

Astronomer supports a permissions and role-based access control (RBAC) framework that allows users to configure varying levels of access both at the Workspace and Airflow Deployment levels.

Workspace and Deployment-level access can each be configured with 3 user roles (Admin, Editor, Viewer), all of which can be set and changed via the Software UI and CLI. Each role maps to a combination of permissions to both Astronomer and Apache Airflow itself.

The guidelines below will cover:

1. How to invite users to an Astronomer Workspace and Deployment
2. How to view, set and modify user roles
3. Deployment and Workspace Permissions Reference

Invite users​

Workspace and Deployment Admins can invite and otherwise manage users both via the Software UI and CLI. All users who have access to a Workspace must be assigned 1 of 3 Workspace roles, though deployment-level roles are not required.

Read below for guidelines.

Invite to Workspace​

The ability to invite users to an Astronomer Workspace is limited to Workspace Admins, who can also grant the Admin role to other users. Workspace Editors and Viewers cannot invite or otherwise manage other Workspace users, though they may do so at the deployment level depending on their deployment-level role.

A user who creates a Workspace is automatically granted the Admin role for the Workspace and has the ability to create any number of Airflow Deployments within it. Every Workspace must have at least 1 Workspace Admin.

Using the Software UI​

To invite a user to a Workspace via the Software UI, navigate to Workspace > Users > Invite User.

When a Workspace Admin invites a user to a Workspace in which one or more Airflow Deployments exist, they'll have the opportunity to set that user's deployment-level roles as well, though it is not required.

If a Workspace Admin invites a user to a Workspace that has 0 Airflow Deployments, the Deployment Roles modal above will not appear.

Using the Astro CLI​

To invite a user to a Workspace using the Astro CLI, run:

astro workspace user add <email-address> --workspace-id <workspace-id> --role <workspace-role>

Only Workspace Admins can invite other users and set their permissions.

To find Workspace ID, you can:

• Run $ astro workspace list
• Find it in the Workspace URL from your browser after the /w/ (e.g. https://app.basedomain/w/<workspace-id>)

To set a Role, add a flag in the following format:

• --WORKSPACE_EDITOR
• --WORKSPACE_VIEWER
• --WORKSPACE_ADMIN

If you do not specify a role in this command, WORKSPACE_VIEWER will be set by default. In all cases where a user is invited to a Workspace and deployment-level role is not specified, no deployment-level role will be assumed.

Using Teams​

You can invite a group of users from a configured third party identity provider (IdP) as a Team on your Workspace. A Team is an IdP-defined group of users who all share the same permissions to a given Deployment or Workspace.

Note that to use Teams, a System Admin must first complete the setup in Integrate an auth system and configure user groups as described in Import IdP Groups.

To add a Team to a Workspace:

1. In the Astronomer UI, go to your Workspace and open the Teams tab.

2. Click Add Team.

3. Under Team Name, enter the name of your IdP group.

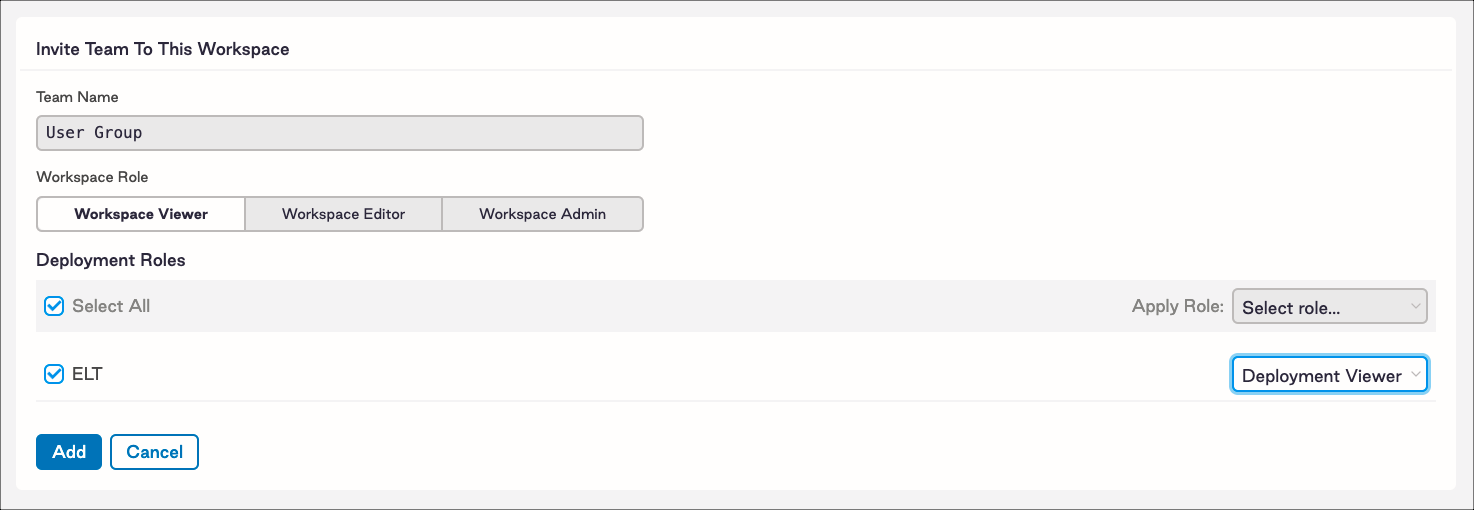

4. Select a Workspace Role for the Team. If your Workspace has existing Deployments, you can also configure the Team's permissions to those Deployments on this page:



5. Click Add.

Invite to Deployment​

The ability to invite Workspace users to an Airflow Deployment within it is limited to Deployment Admins, who can also grant the Admin role to other users. Deployment Editors and Viewers cannot invite or otherwise manage users. A user who creates a Deployment is automatically granted the Admin role within it.

Note: In order for a user to be granted access to an Airflow Deployment, they must first be invited to and assigned a role within the Workspace. On the other hand, a user could be a part of a Workspace but have no access or role to any Airflow Deployments within it.

Using the Software UI​

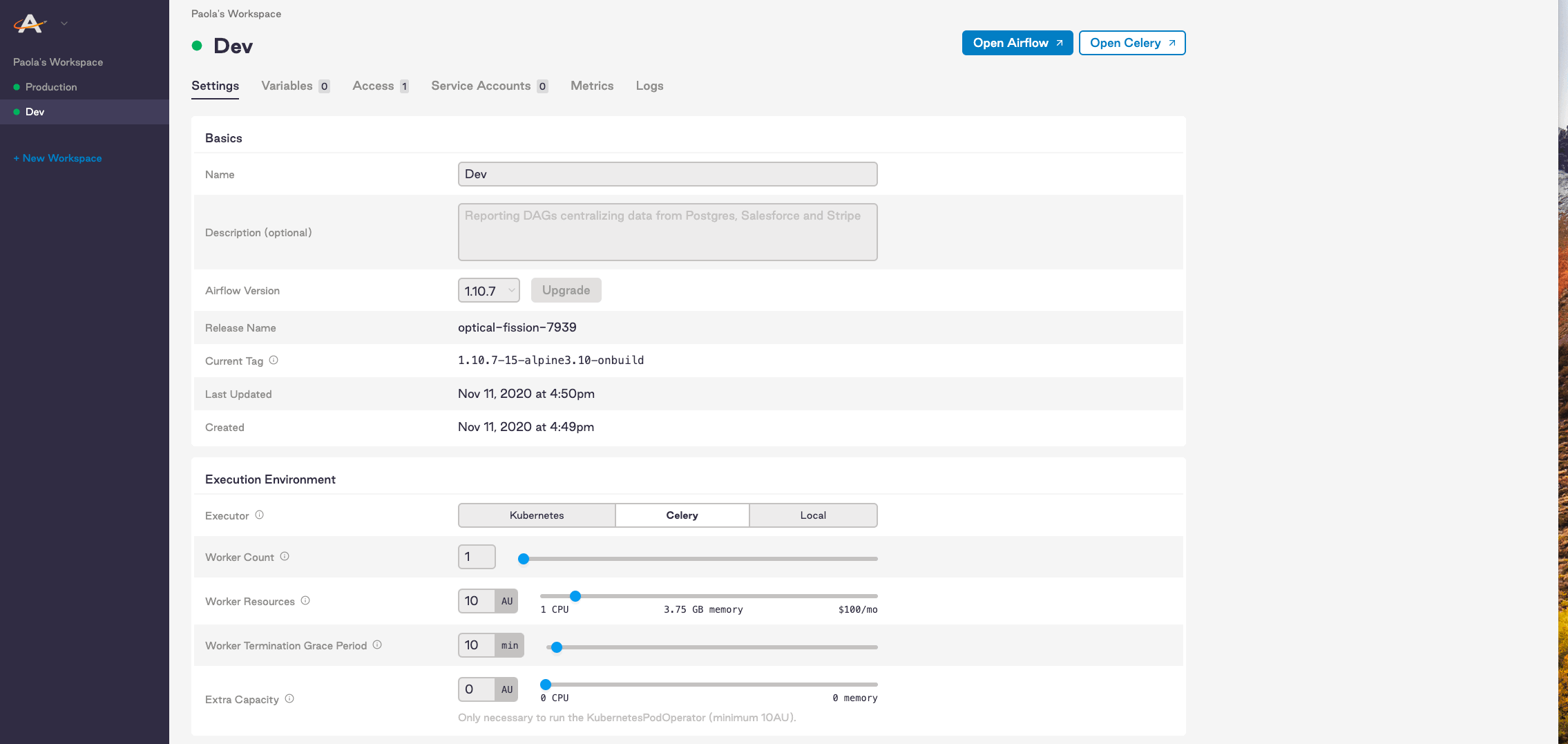

To invite a Workspace user to an Airflow Deployment via the Software UI, navigate to: Workspace > Deployment > Access.

From there:

1. Type the Workspace user's name in the search bar on top (or click Show All to view all users)
2. Select a deployment role from the drop-down menu to the right of the selected user
3. Click the + symbol

Using the Astro CLI​

To invite a Workspace user to an Airflow Deployment using the Astro CLI, run:

astro deployment user add --email=<email-address> --deployment-id=<deployment-id> --role=<deployment-role>

Only Deployment Admins can invite other users and set their permissions.

To find Deployment ID, you can:

• Run $ astro deployment list

To set a Role, add a flag in the following format:

• --DEPLOYMENT_EDITOR
• --DEPLOYMENT_VIEWER
• --DEPLOYMENT_ADMIN

If you do not specify a role in this command, DEPLOYMENT_VIEWER will be set by default.

Using Teams​

You can invite a group of users from a configured third party identity provider (IdP) as a Team on your Deployment. A Team is an IdP-defined group of users who all share the same permissions to a given Deployment or Workspace.

Note that to use Teams, a System Admin must first complete the setup in Integrate an auth system and configure user groups as described in Import IdP Groups.

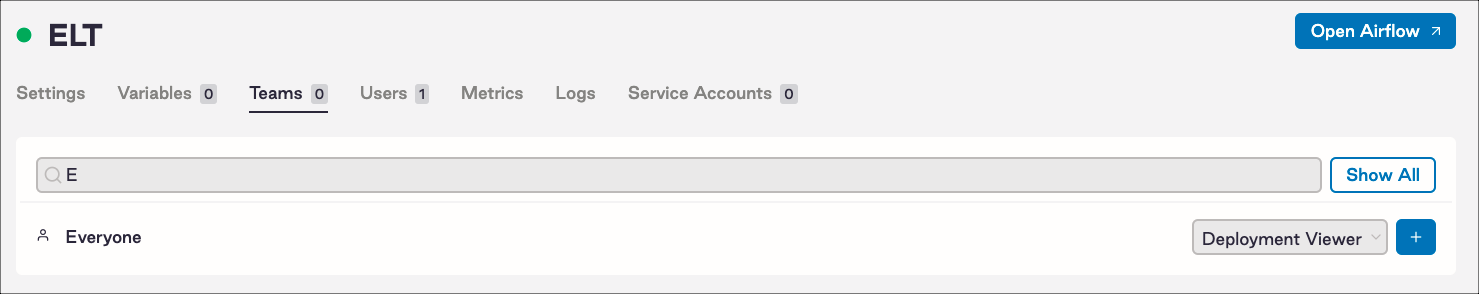

To add a team to a Deployment:

1. In the Astronomer UI, go to your Deployment and open the Teams tab.

2. In the search bar that appears, search for your Team's name.

3. When your Team appears, select a Deployment-level role for the Team and click the + button:



View and edit user roles​

Workspace​

View Workspace users​

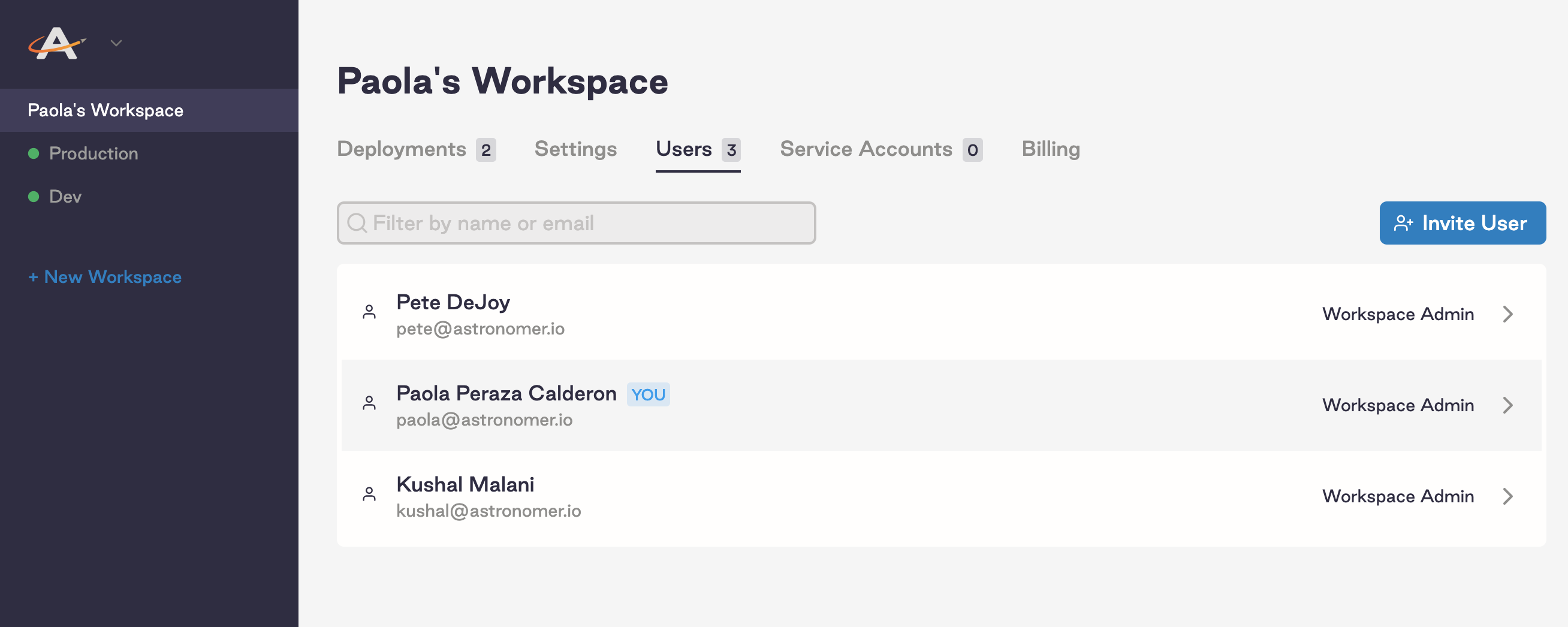

To view roles within a Workspace via the Software UI, navigate to Workspace > Users. All Workspace users have access to this view and can see the roles of other users.

To list Workspace users using the Astro CLI, run:

astro workspace user list

This command will output the email addresses of all users in the Workspace alongside their ID and Workspace Role.

Edit Workspace user role​

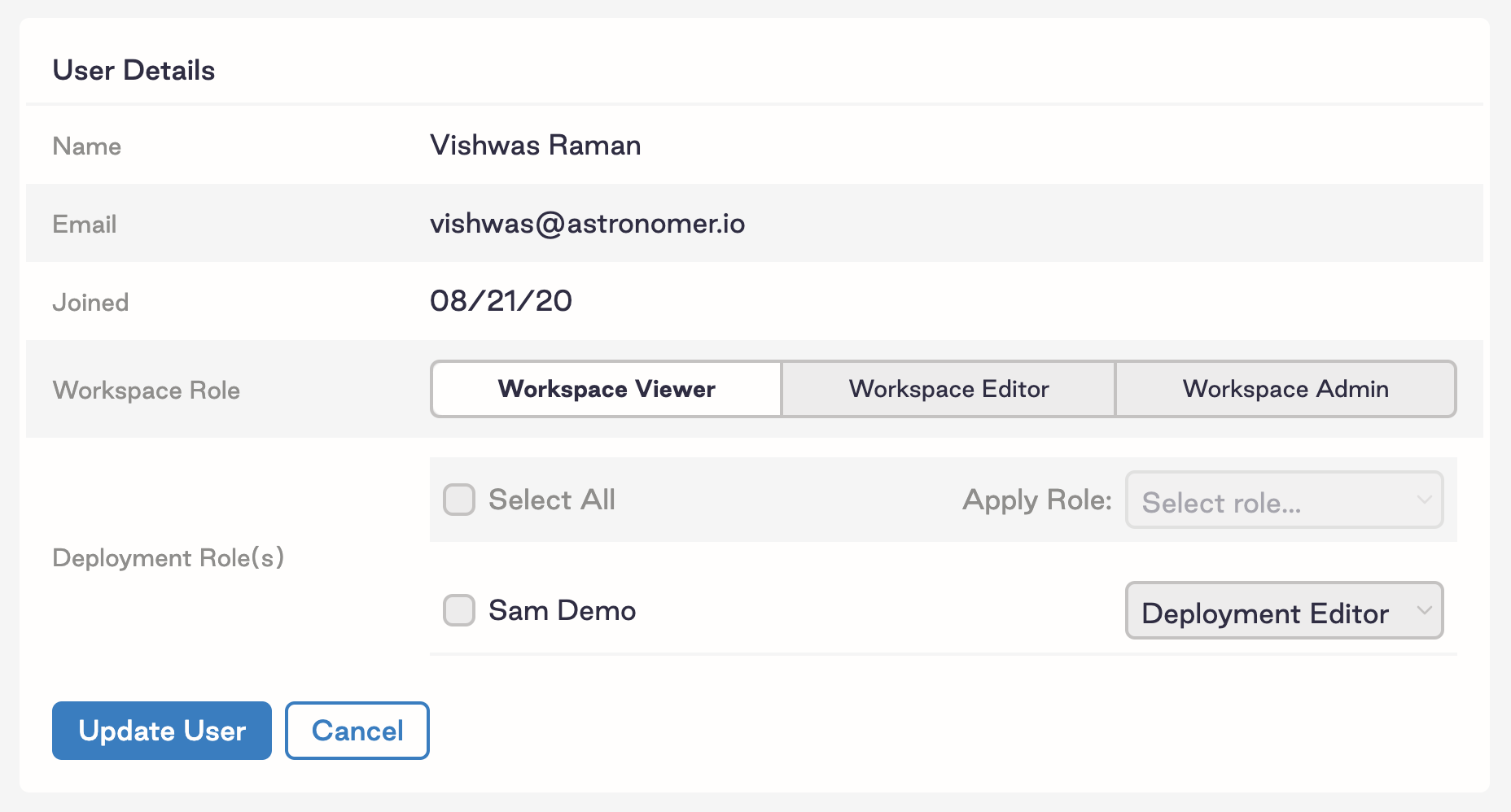

If you're a Workspace Admin, you can edit both Workspace and deployment-level permissions by navigating to Workspace > Users and clicking into an individual user.

To edit a user's role using the Astro CLI, run:

astro workspace user update <email> --workspace-id=<workspace-id> --role=<workspace-role>

Only Workspace Admins can modify the role of another user in the Workspace.

Remove Workspace user​

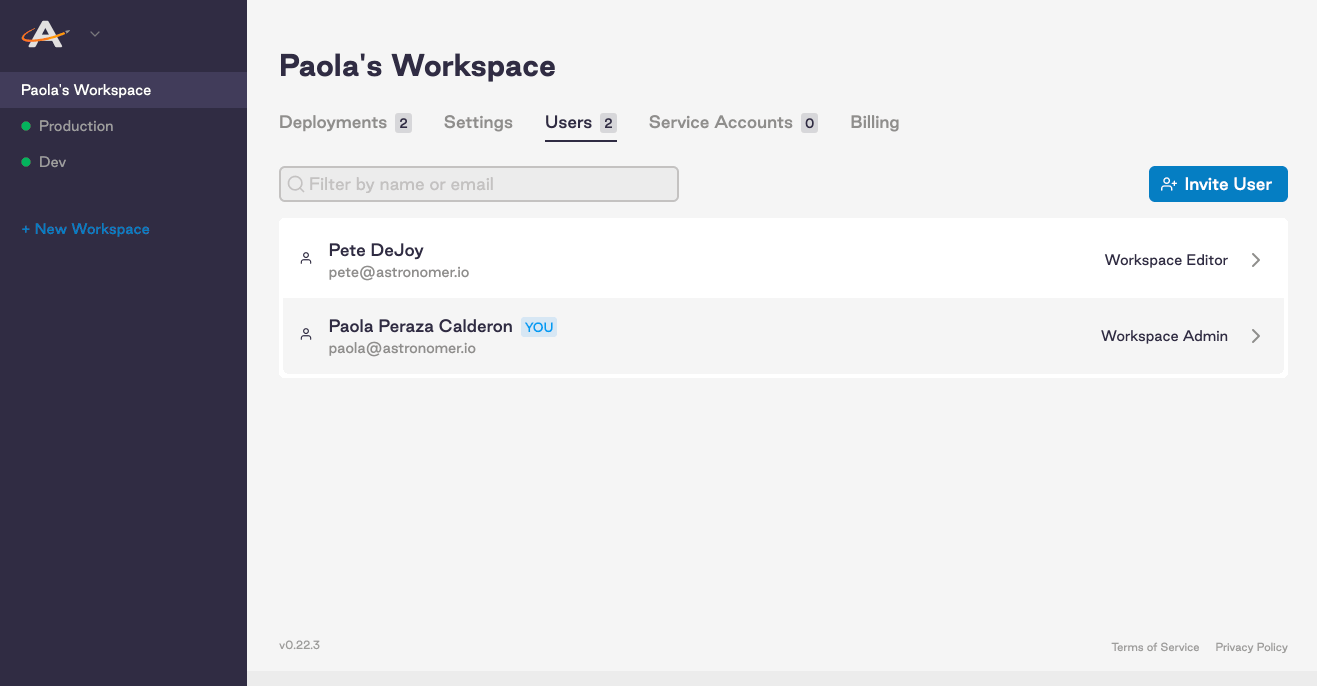

Workspace Admins can remove users from a Workspace by navigating to: Workspace > Users > Individual User > Remove User.

To remove a user from a Workspace via the Astro CLI, make sure you're first operating in that Workspace. Then, run:

astro workspace user remove <email>

Only Workspace Admins can remove other Workspace users.

Deployment​

View Deployment users​

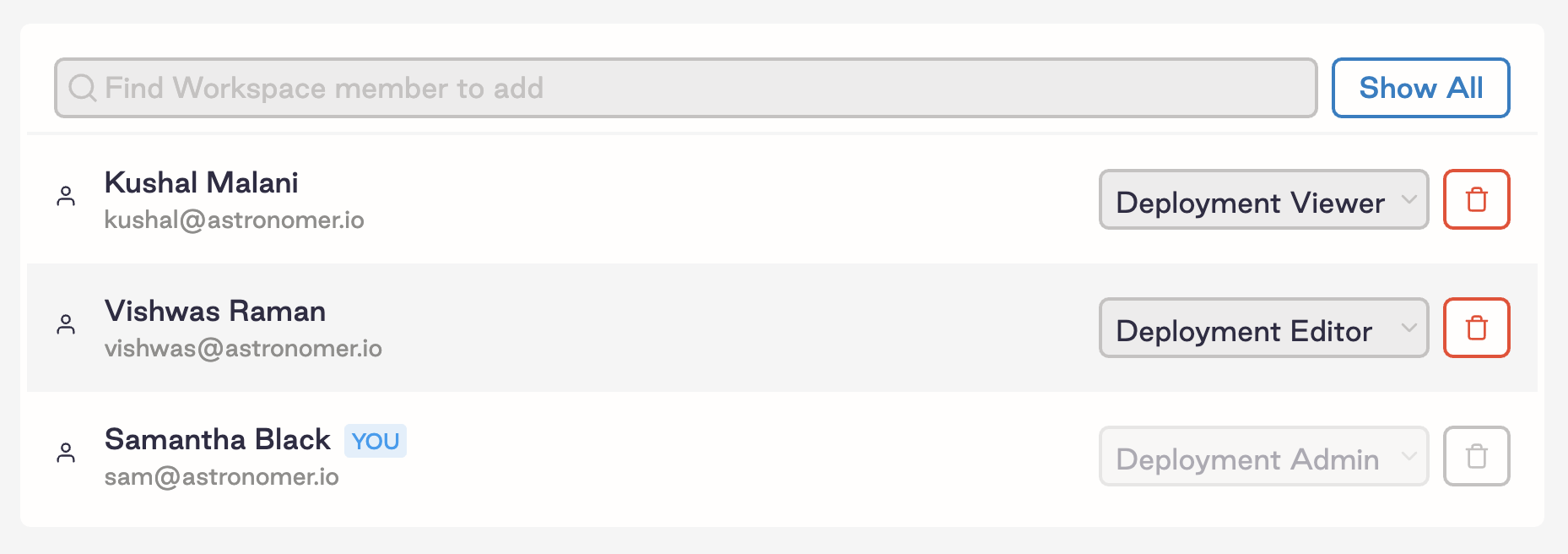

To list all users within a Deployment and their corresponding roles, navigate to Workspace > Deployment > Access. All Deployment users have access to this view and can see the roles of other users.

To list Deployment users via the Astro CLI, run:

astro deployment user list --deployment-id=<deployment-id>

Edit Deployment user role​

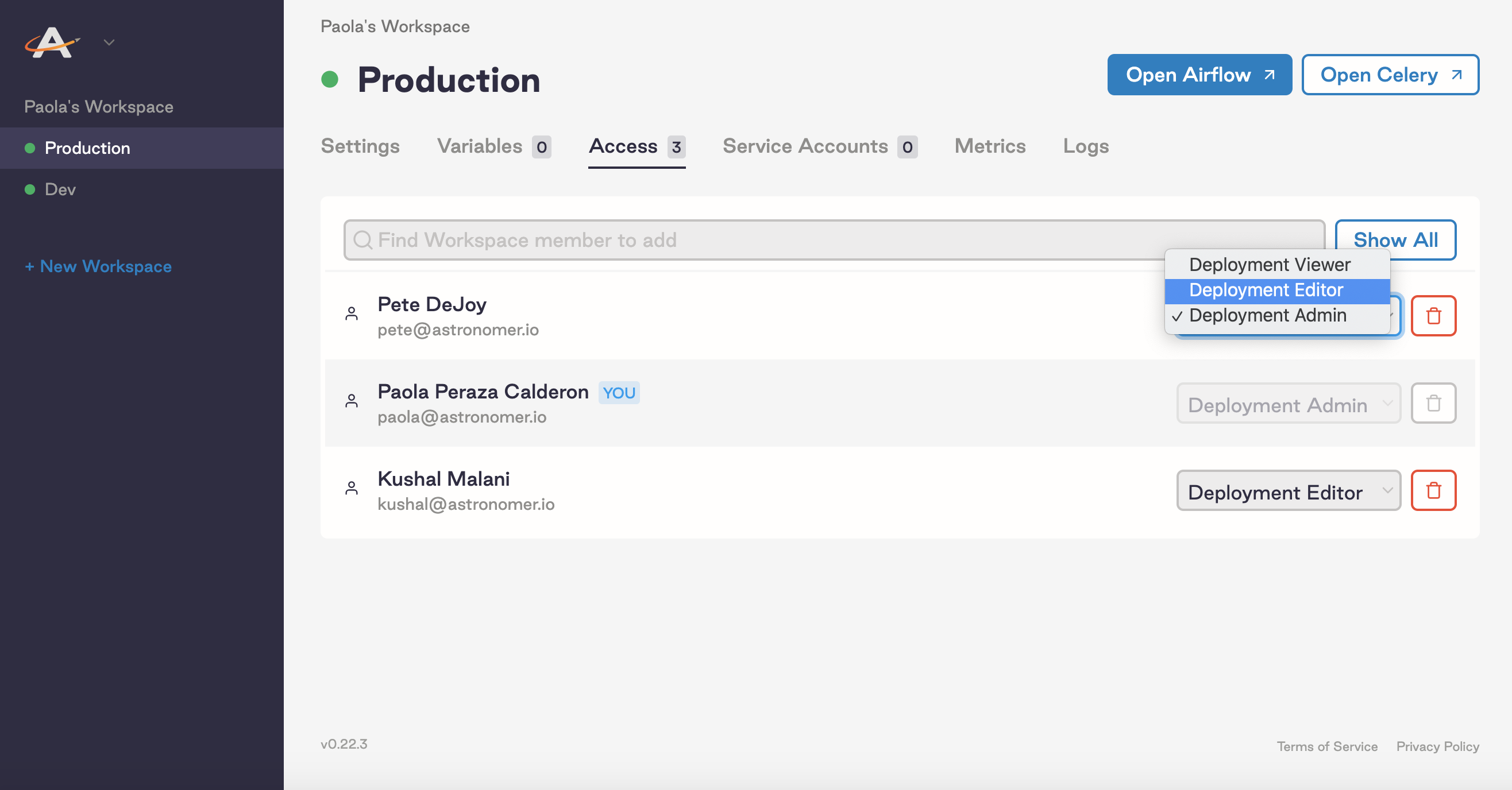

Deployment Admins can edit permissions using the dropdown menu in the Access tab in the Software UI.

To edit a user's role using the Astro CLI, run:

astro deployment user update <email> --deployment-id=<deployment-id> --role=<deployment-role>

Note: A deployment-level role cannot be edited while a Workspace invitation to that user is pending. If you invite a user to a Workspace, you will not be able to modify their permissions until they accept the Workspace invite.

Remove Deployment user​

To delete a user from an Airflow Deployment via the Software UI, Deployment Admins can click on the red "wastebasket" icon within the Access tab shown in the screenshot above.

To delete a user from an Airflow Deployment using the Astro CLI, run:

astro deployment user remove <email> --deployment-id=<deployment-id>

User permissions reference​

Workspace​

Workspace Admin​

Workspace Admins are the highest-tiered role at the Workspace level. Admins:

• Can manage users and their permissions in a Workspace.
• Can perform CRUD (create, read, update, delete) operations on the Workspace (e.g. delete the Workspace, change its name).
• Can create Airflow Deployments in the Workspace.
• Can perform CRUD operations on any Airflow Deployment within the Workspace.
• Can perform CRUD operations on any service account in the Workspace.

Every Workspace must have at least 1 Workspace Admin.

A Workspace Admin always has these permissions for any Deployment in the Workspace. Even if a Workspace admin also has a defined role with lower permissions like Deployment Viewer, Astronomer uses the permissions configured for the user at the Workspace level.

Workspace Editor​

Below a Workspace Admin, an Editor:

• Can access and make changes to the Workspace in the Settings tab
• Can perform CRUD operations on any service account in the Workspace
• Can create Airflow Deployments in the Workspace
• Cannot manage other users in the Workspace
• Cannot delete the Workspace

Workspace Viewer​

A Workspace Viewer is limited to read-only mode. Viewers:

• Can list users in a Workspace
• Can view all service accounts in the Workspace
• Cannot delete or modify the Workspace or its users

Note: If a role is not set, newly invited users are Workspace Viewers by default.

Deployment​

Deployment Admin​

Deployment Admins are the highest-tiered role. Admins:

• Can perform CRUD (create, read, update, delete) Astronomer operations on the Deployments, such as modify resources, add environment variables, push code, or delete the Deployment
• Can manage users and their permissions in the Deployment
• Can perform CRUD operations on any service account in the Workspace
• Can perform CRUD Airflow operations (push code, add Connections, clear tasks, delete DAGs etc.)
• Have full access to the Admin menu in the Airflow UI
• Have full access to modify and interact with DAGs in the Airflow UI

Every Deployment must have at least 1 Deployment Admin.

Deployment Editor​

With fewer permissions than Admins, a Deployment Editor:

• Can access and make changes to the Deployment on Astronomer, such as modify resources, add environment variables, or push code
• Cannot delete the Deployment
• Can perform CRUD operations on any service account in the Deployment
• Cannot manage other users in the Deployment
• Has full access to modify and interact with DAGs in the Airflow UI

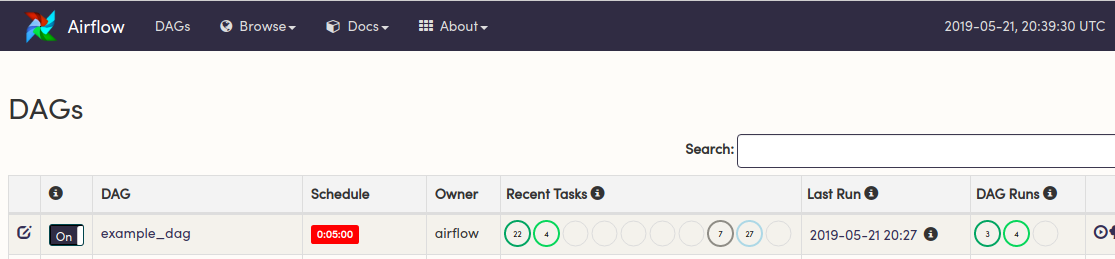

• Does NOT have access to the Admin menu in Airflow, which includes:
  • Pools
  • Configuration
  • Users
  • Connections
  • Variables
  • XComs

Deployment Viewer​

Deployment Viewers are limited to read-only mode. They can only:

• View Deployment users
• View the Metrics and Logs tab of the Software UI
• View information about DAGs and tasks in the Airflow UI

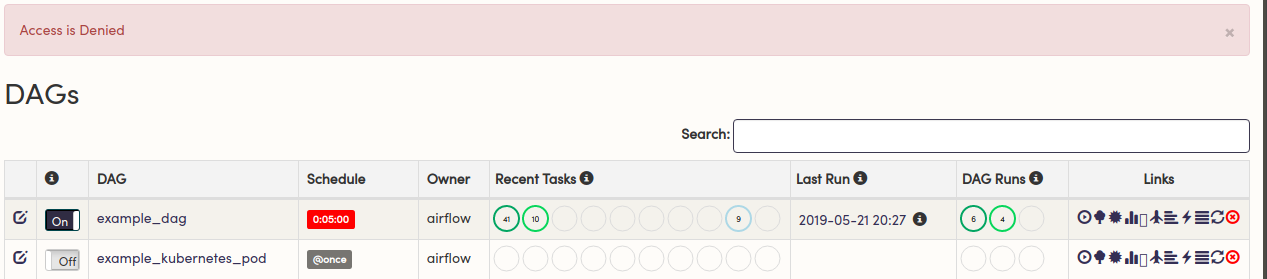

Deployment Viewers cannot deploy to, modify, or delete anything within an Airflow Deployment. Additionally, they cannot create or use service accounts to do so. Attempts to modify a Deployment in any way will result in a 403 and an Access is Denied message.

What's next​

As an Astronomer Software user, you're free to customize all user permissions at the platform-level. For more information, read:

• Manage Users on Astronomer Software
• Integrate an auth system
