Using Airflow as a Data Analyst

Watch Video On Demand

Hosted By

  • Kenten Danas
  • Viraj Parekh
  • Amir Zahreddine

Webinar agenda:

  1. What is Apache Airflow®?
  2. What makes a good data analyst
  3. A user story
  4. The stack
  5. The workflow
  6. The Airflow DAG
  7. Data Analysis step by step (Airflow, Databricks, Tableau)

Useful links:

What is Apache Airflow®?

using-airflow-as-a-data-analyst-image13

What makes a good Data Analyst

Extensive knowledge of the business and KPIs

Knowledge of company data and what’s missing

Domain expertise to inform decision-makers -Data analysts then analyze the relevant data and compute the necessary metrics.

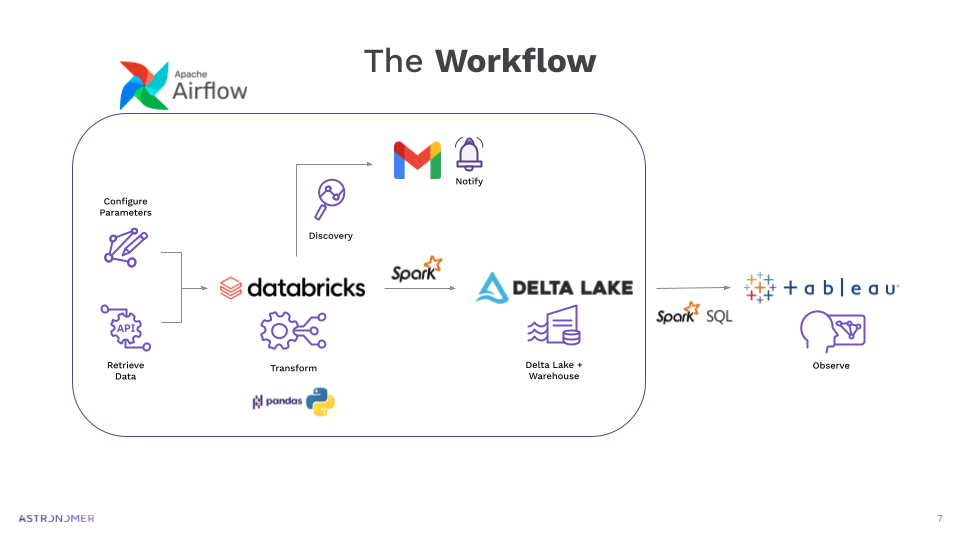

The Data Analyst’s Stack and Workflow

Data analysts work with a wide variety of tools. A typical analyst’s stack and workflow might look like this:

  • Existing DE pipelines
  • Operators galore
  • Scheduling
Apache Airflow®
  • Notebook interface
  • Mounted database
  • Spark support
  • Python and SQL
databricks
  • UI-based visualization
  • Regular data refresh
  • Easy stakeholder access
tableau

using-airflow-as-a-data-analyst-image18

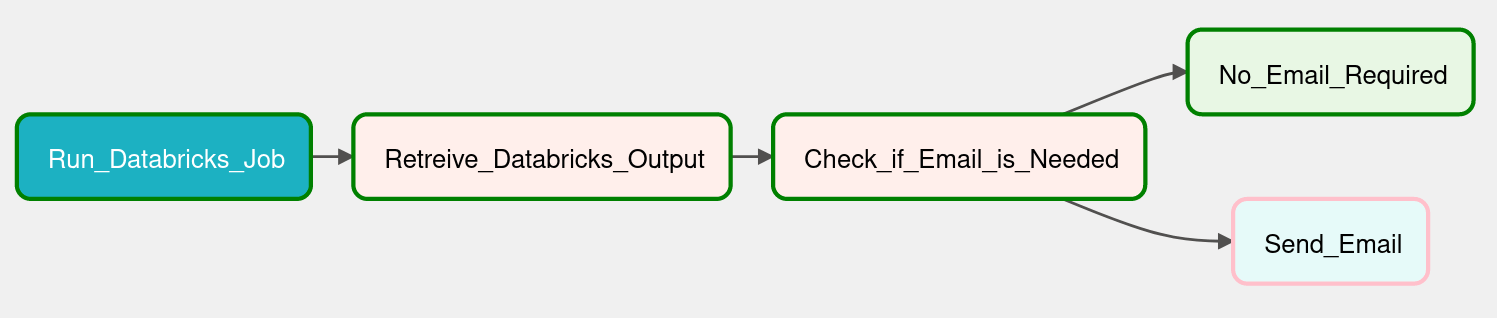

Airflow DAG task dependencies

run_databricks_job >> retreive_databricks_output >> branching >> [no_mail, mail]

using-airflow-as-a-data-analyst-image17

In this sample DAG, we see:

  1. Airflow triggering the Databricks job; then
  2. retrieving the output from the Databricks job (in between these two tasks the Databricks notebook is running and performing the transformations and analysis); then
  3. making a decision whether an email notification to the client is necessary based on the outputs results from the Databricks notebook; then
  4. based on that decision, either sending or not sending an email.

Sample data analysis: A User Story

Imagine a Data Analyst who works for an investment management firm, helping clients make good decisions about their investment portfolios. To do so, the Data Analyst retrieves market data regularly, and for each client provides an analysis of how the industries they are invested in perform.

The Data Analyst persists the transformed data from analyses, sends automated notifications to clients to take action when relevant, and keeps a dashboard up to date for them to check their investment health at a glance.

Let’s look into this Data Analysts workflow.

Sample data analysis Part 1: Airflow triggers Databricks notebook with parameters

Step 1: Passing Parameters from Airflow

As notebook_params in the DatabricksRunNowOperator.

   portfolio = {
               "stocks": "MSFT AAPL IBM WMT SHOP GOOGL TSLA GME AMZN COST COKE CBRE NVDA AMD PG"
               }

   # Run the Databricks job and retrieve the job Run ID
   run_databricks_job = DatabricksRunNowOperator(
       task_id="Run_Databricks_Job",
       databricks_conn_id=DATABRICKS_CONNECTION_ID,
       job_id=137122987688189,
       do_xcom_push=True,
       notebook_params = portfolio
   )

Step 2: Retrieving Parameters in Databricks

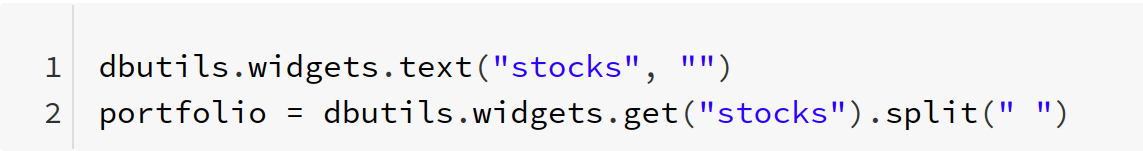

Use dbutils.widgets.text(param, default_value) to load params pushed by Airflow into the notebook.

using-airflow-as-a-data-analyst-image1

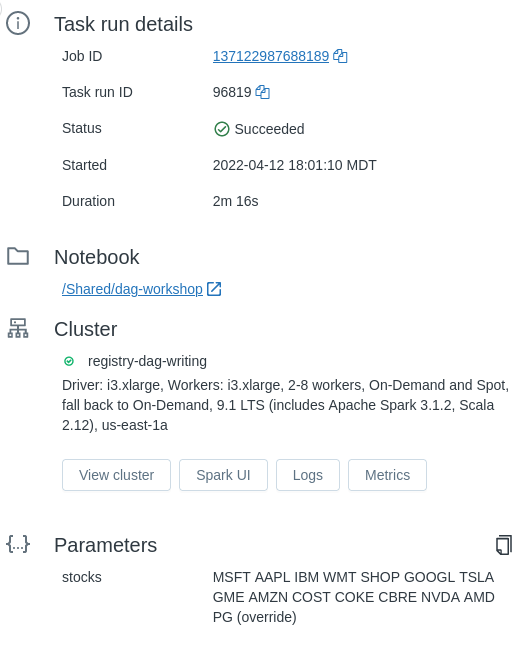

Step 3: Check the parameters in the Databricks UI after the notebook runs

using-airflow-as-a-data-analyst-image9

Sample data analysis Part 2: Data ingestion & transformations

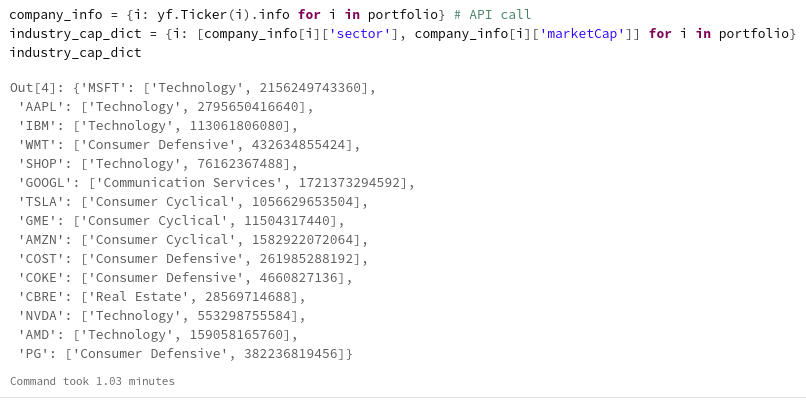

Step 1: Invoking the API

Pull data from Yahoo Finance using the yfinance Python package 1

using-airflow-as-a-data-analyst-image12

Code credits: https://github.com/ranaroussi/yfinance

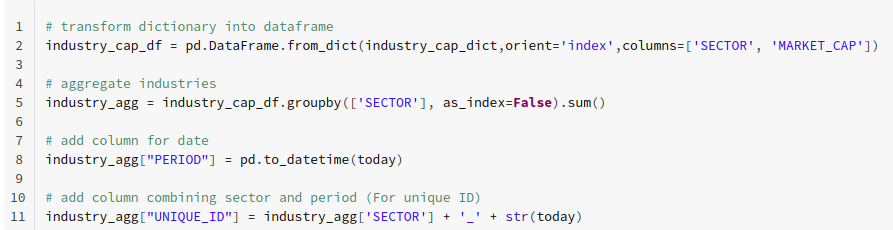

Step 2. Aggregating Market Cap. by Industry Sector

using-airflow-as-a-data-analyst-image6

Sample data analysis Part 3: Enjoying the View, A (Delta) Table on a (Delta) Lake

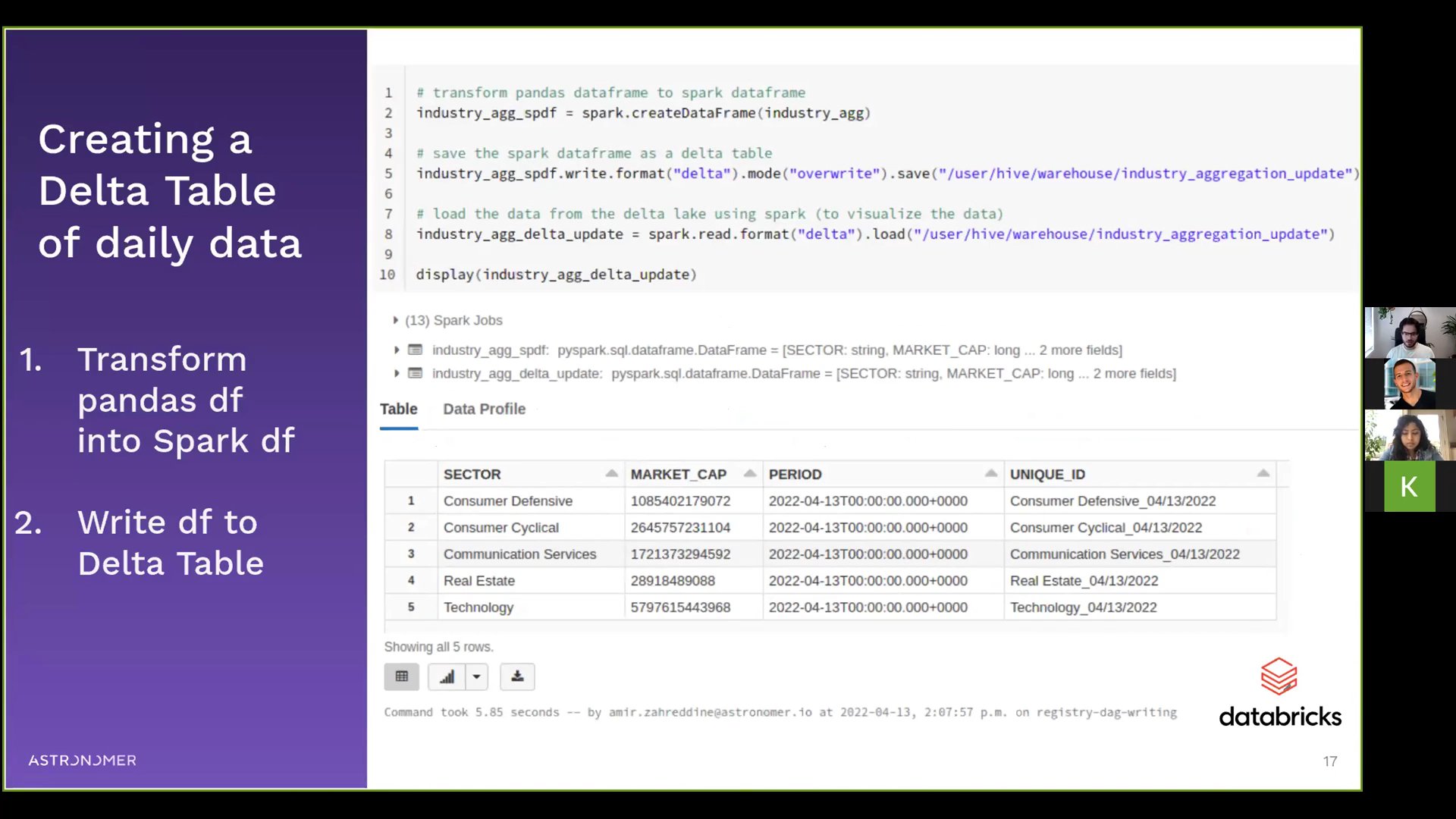

Creating a Delta Table of daily data

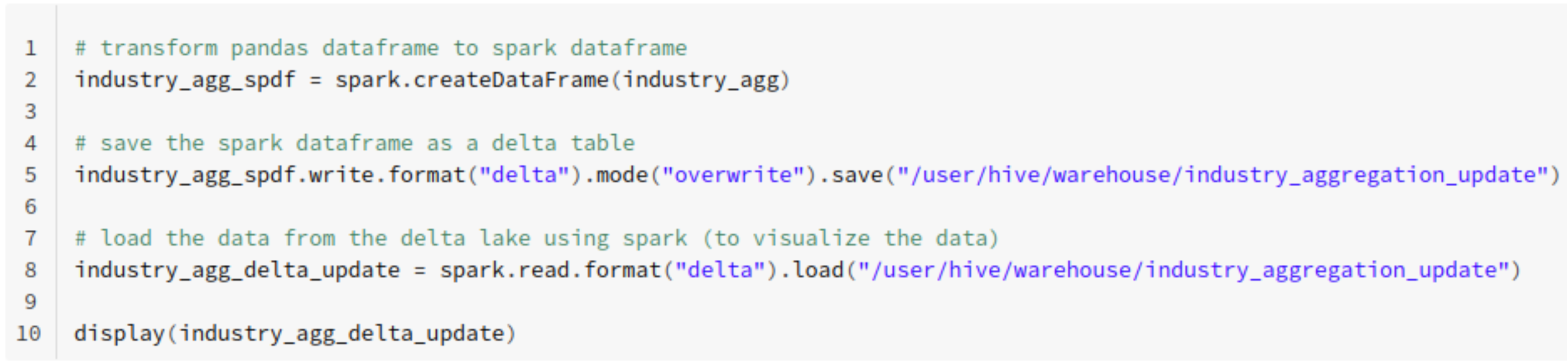

Step 1: Transform pandas df into Spark df

Screen Shot 2022-04-22 at 10.32.53 AM

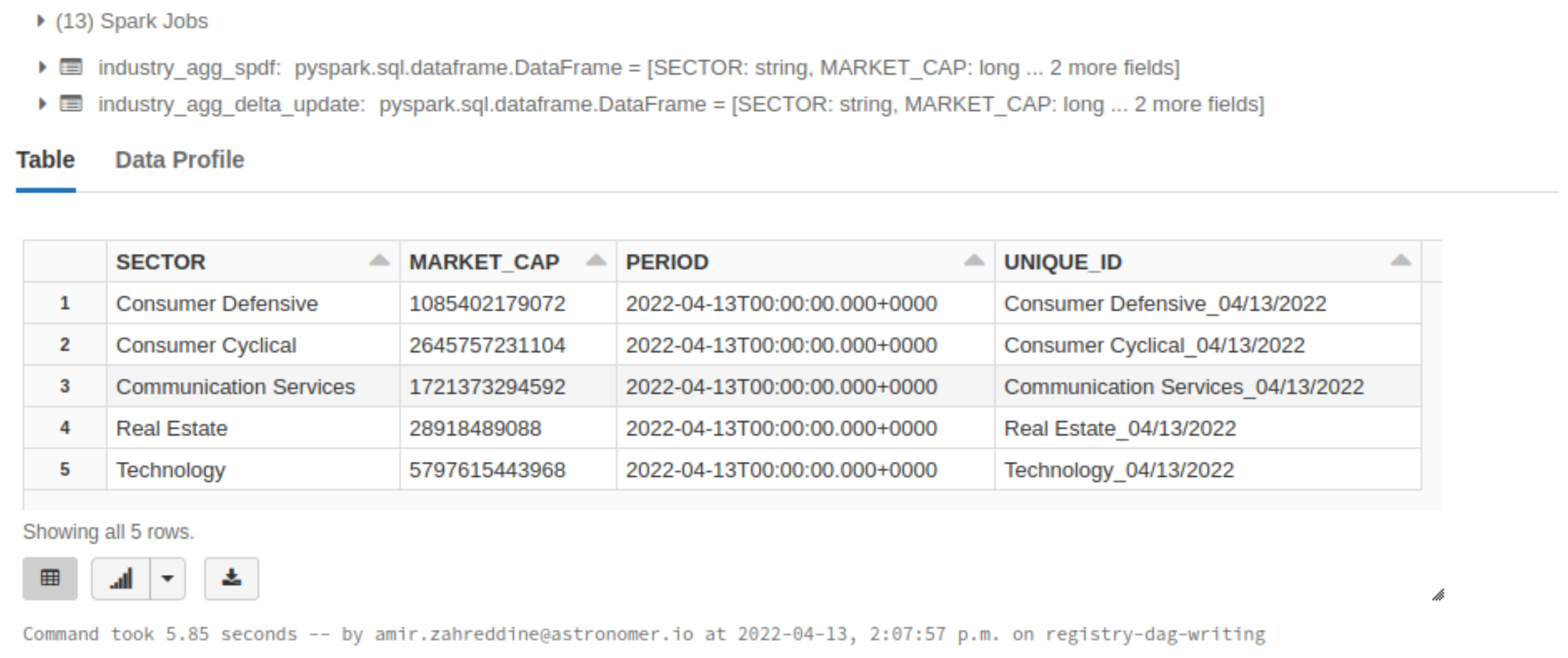

Step 2: Write Spark df to Delta Table

Screen Shot 2022-04-22 at 10.33.43 AM

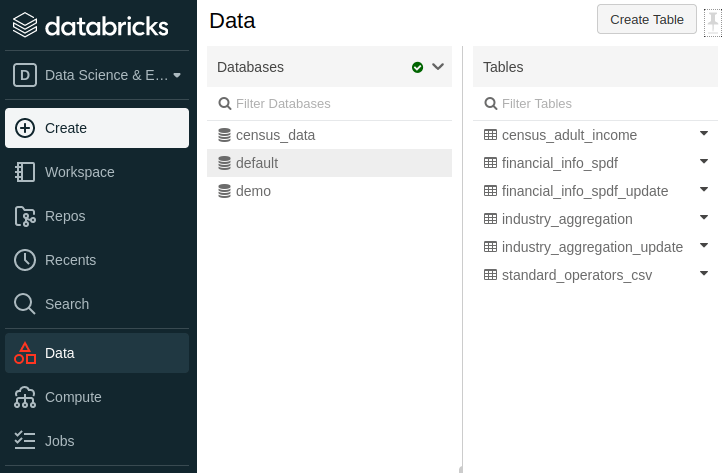

Viewing the table in Databricks

Step 1:

using-airflow-as-a-data-analyst-image5

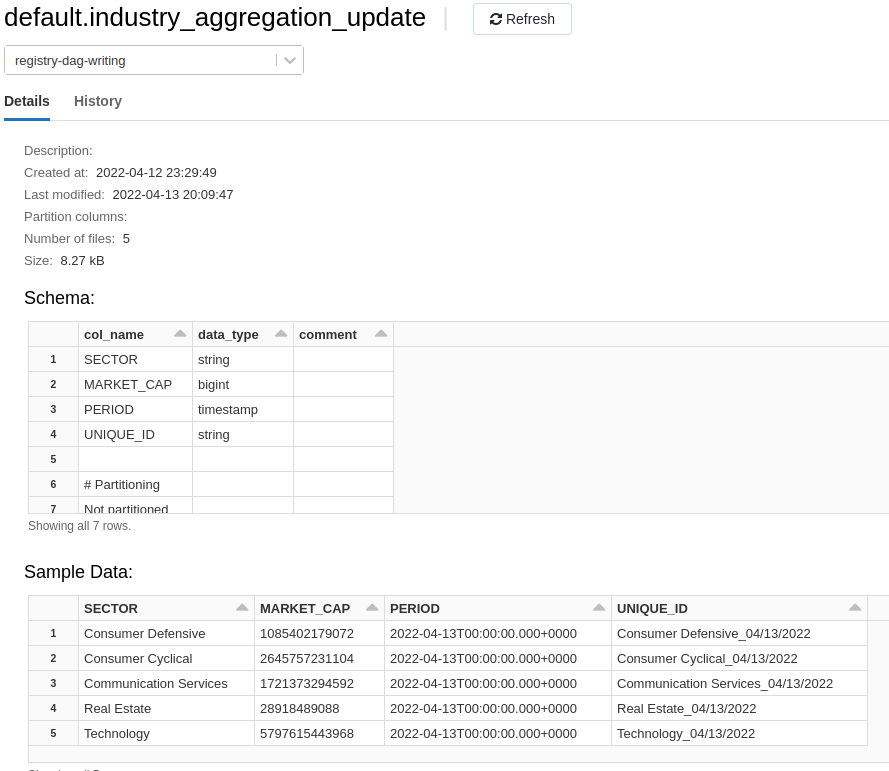

Step 2:

using-airflow-as-a-data-analyst-image11

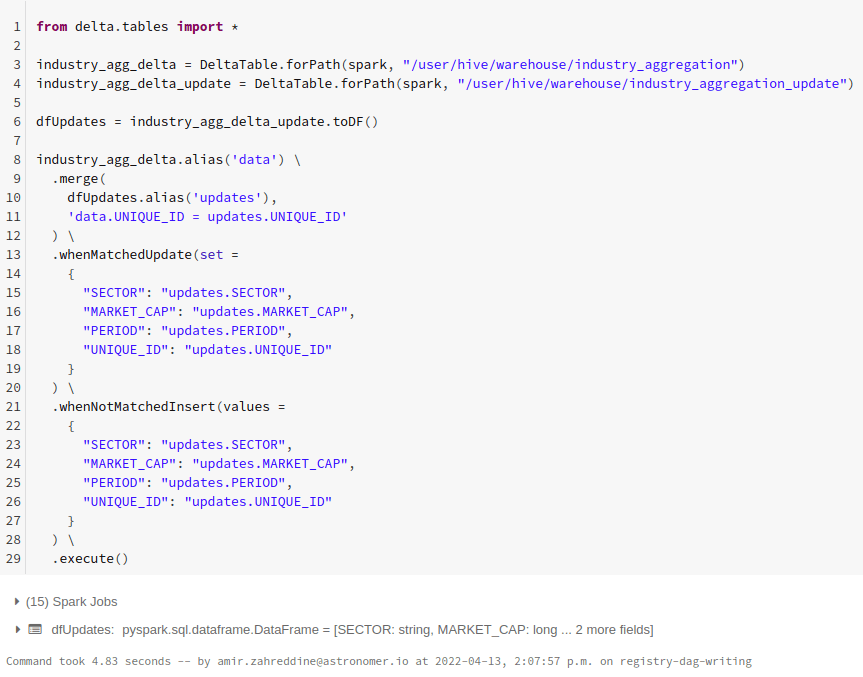

Upserting Daily Delta Table into Historical Delta Table

using-airflow-as-a-data-analyst-image8

Sample data analysis Part 4: Visualize analytics in Tableau

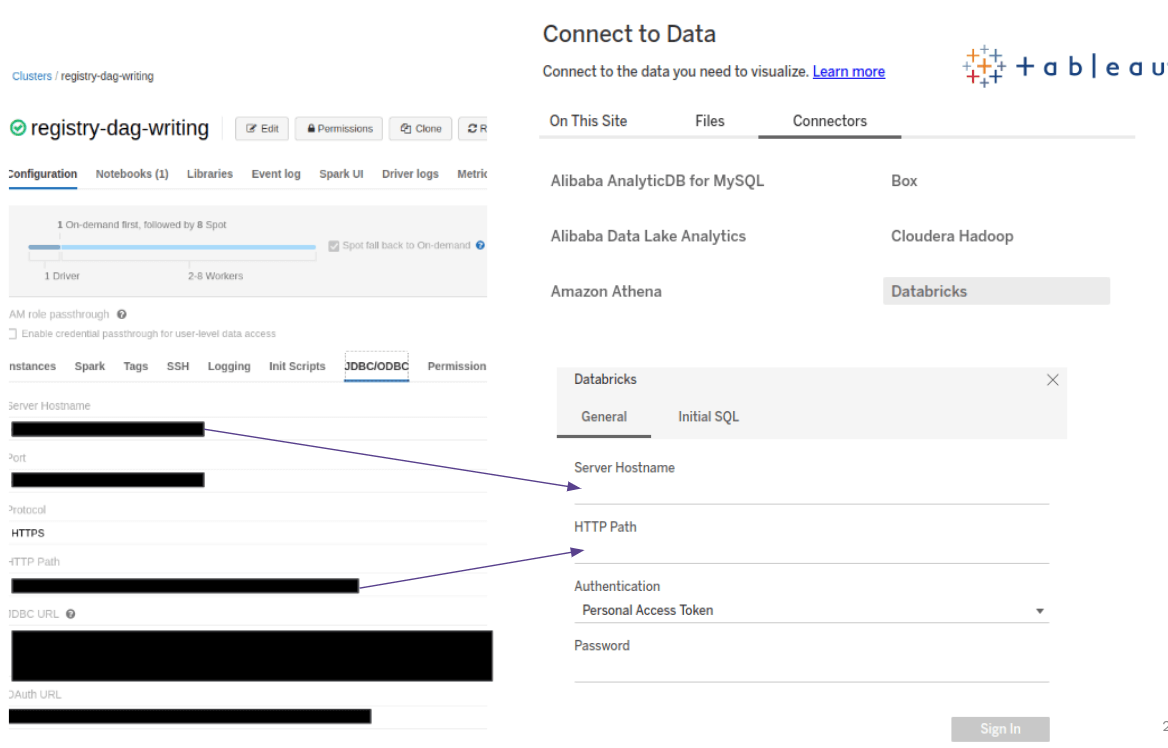

Connecting Tableau to Databricks

using-airflow-as-a-data-analyst-image15

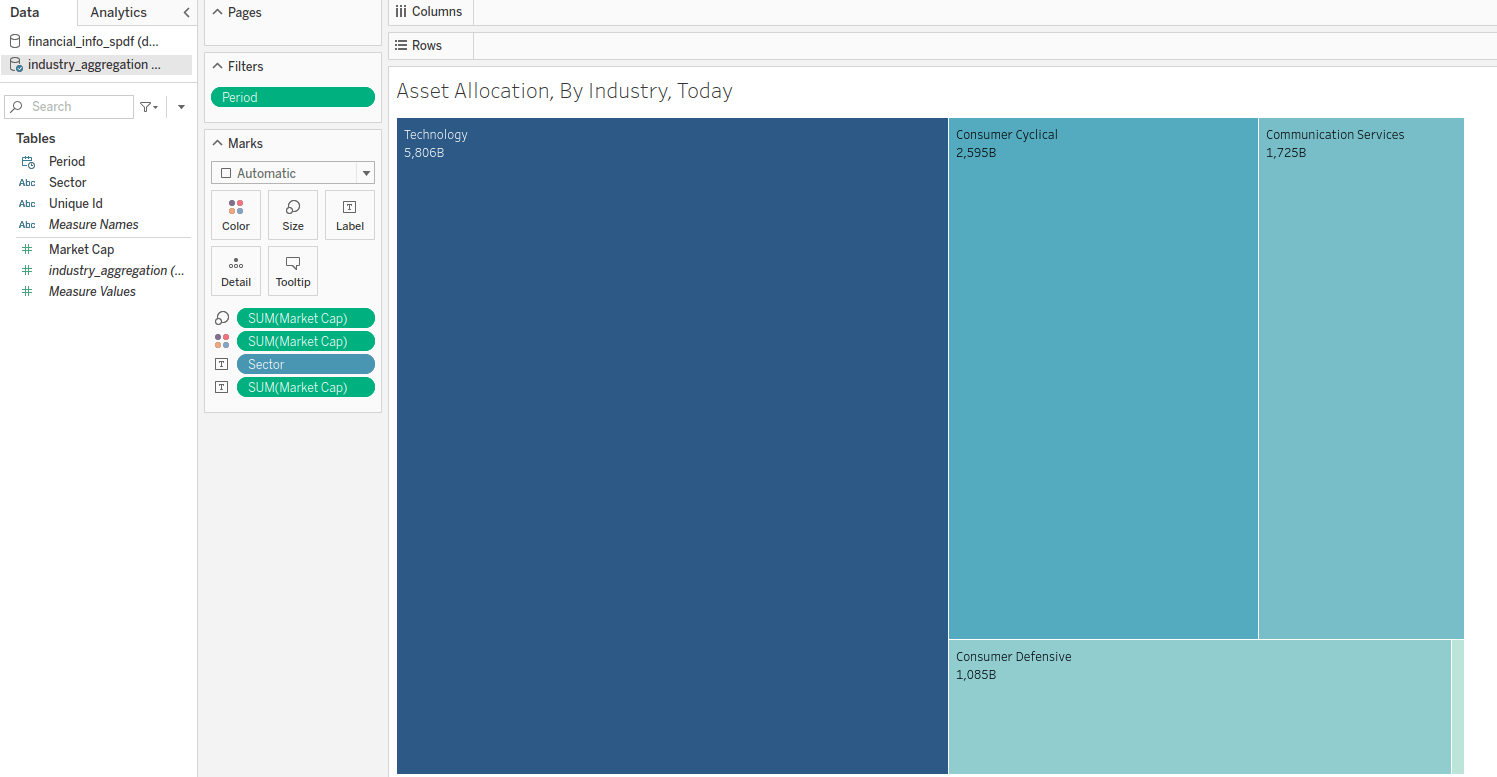

Portfolio asset allocation by industry

using-airflow-as-a-data-analyst-image14

Sample data analysis Part 5: Monitoring portfolio performance & Email Notifications

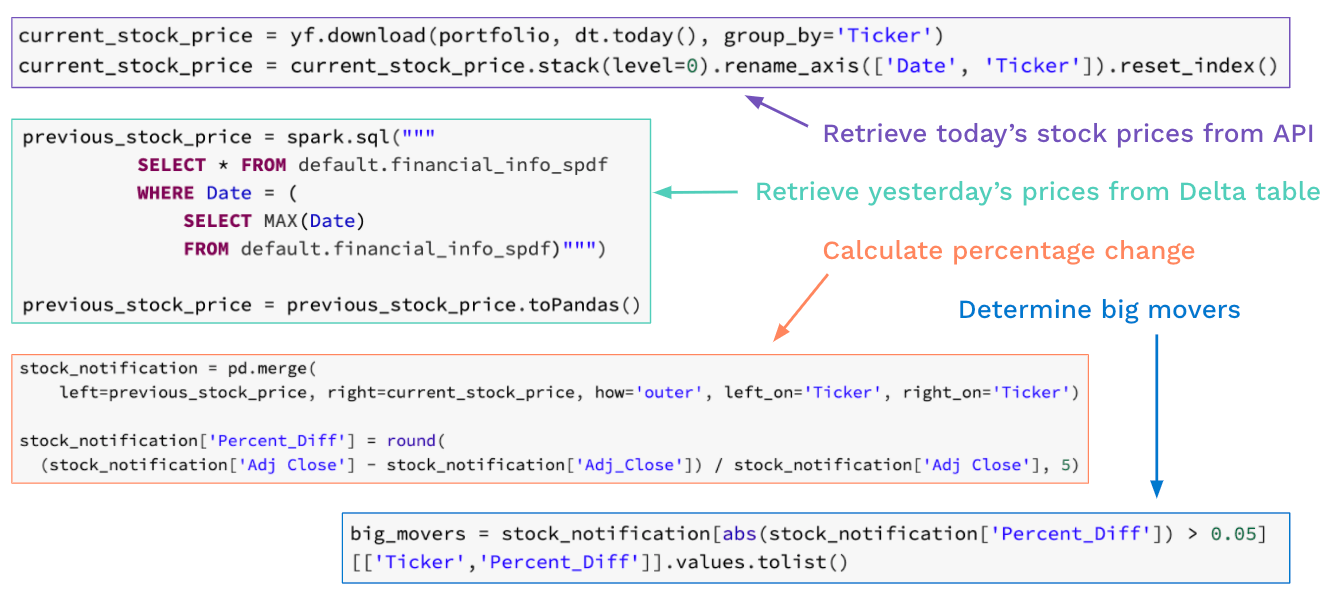

Step 1. Determining the Percentage Change from Day Prior

using-airflow-as-a-data-analyst-image10

Step 2. Exiting Notebook with output data

Use dbutils.widgets.exit(<data>) to exit the notebook with data to push back to Airflow.

using-airflow-as-a-data-analyst-image4

Step 3. Ingesting results in Airflow

This data is picked up using the DatabricksHook and assigned to the variable model_uri.

   @task
   def Retreive_Databricks_Output(id):

       # retrieve xcom data using DatabricksHook
       databricks_hook = DatabricksHook()
       model_uri = databricks_hook.get_run_output(id)['notebook_output']['result']

       return model_uri

   # Variable "Output" contains the xcom data from Databricks
   retreive_databricks_output = Retreive_Databricks_Output(run_databricks_job.output['run_id'])

Step 4. Using the BranchPythonOperator to decide whether to notify

   # Decide as to whether or not an email should be sent based on the content of Output
   branching = BranchPythonOperator(
       task_id='Check_if_Email_is_Needed',
       op_args = [retreive_databricks_output],
       python_callable=_split,
   )

   def _split(data):
       if data == "No Email Required":
           print("LOG: No big movers, no email was sent")
           return 'No_Email_Required'
       else:
           return 'Send_Email'

Step 5. Send email notification

   # Send email containing the content of the xcom
   mail = EmailOperator(
       task_id='Send_Email',
       to='your_email@gmail.com',
       subject='Daily Movers',
       html_content=retreive_databricks_output,
       )

Questions and Demo

Begins at 31:50 of the video.
